Product Details
Place of Origin: CHINA
Brand Name: FAG / NSK / KOYO / FSK / OEM / Any Brand
Certification: ISO9001-2000 / CE / ROHS / UL / SGS
Model Number: CS203
Payment & Shipping Terms
Minimum Order Quantity: 1 pcs
Price: Talk in the letter
Packaging Details: 1)COLOURED SINGLE BOX PACKING + CARTON BOX PACKING + PALLETS , 2) INDUSTRIAL PACKING
Delivery Time: 5-7Days After Details Confirmed
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 100000pcs/month
Model No.: |
CS203 |
Size: |
17mm × 40mm × 12mm |
Weight: |
0.05kg |
Row: |
Single Row |
Measurement: |
Metric |
Old Model: |
960203 |
Model No.: |
CS203 |
Size: |
17mm × 40mm × 12mm |
Weight: |
0.05kg |
Row: |
Single Row |
Measurement: |
Metric |
Old Model: |
960203 |

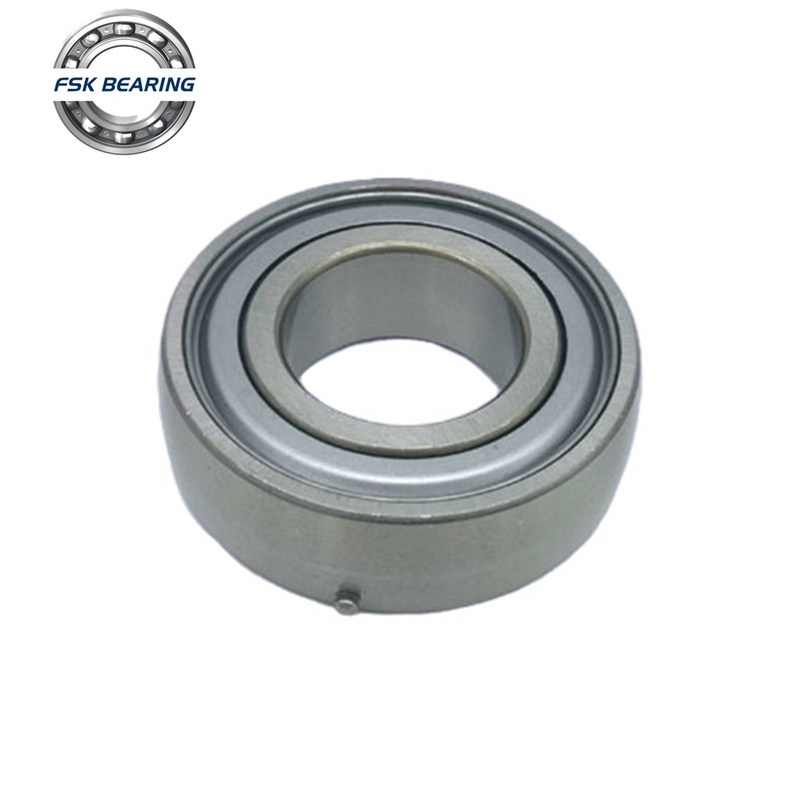

Cambered CS203 Single Row Ball Bearing Insert Bearing for Printing Machine
Cs203 Bearings Specification :
|
Model Number |
CS203 |
|
Part Name |
Insert Bearing |
|
Brand |
FAG / NSK / KOYO / FSK / OEM / Any Brand |
| Material | Gcr15 |
|
Dimensions(mm)(d*D*b) |
17mm × 40mm × 12mm |
|
Weight / Mass ( KG ) |
0.05kg |
|
HS Code |
8482100000 |
|
Original Country Show |
FAG( GERMANY ) |
Drawing and Series List
| Bearing No. | Dimensions(mm) | Basic load ratings (N) | Mass(kg) | ||||
| d | D | B | r(min) | Dynamic Cr | Static Cor | ||
| CS203 960203 | 17 | 40 | 12 | 0.6 | 9580 | 4780 | 0.05 |
| CS204 960204 | 20 | 47 | 14 | 1 | 12800 | 6650 | 0.095 |
| CS205 960205 | 25 | 52 | 15 | 1 | 14000 | 7880 | 0.11 |
| CS206 960206 | 30 | 62 | 16 | 1 | 19500 | 11500 | 0.18 |
| CS207 960207 | 35 | 72 | 17 | 1.1 | 25500 | 15200 | 0.25 |
| CS208 960208 | 40 | 80 | 18 | 1.1 | 29500 | 18000 | 0.32 |
| CS209 960209 | 45 | 85 | 19 | 1.1 | 31500 | 20800 | 0.37 |
| CS210 960210 | 50 | 90 | 20 | 1.1 | 35000 | 23200 | 0.41 |
Detailed Bearing Pictures:
Our Main Products:
| Ball Bearing | Deep Groove Ball Bearing | 60 **,618 ** (1008), 619**(1009),62 **, 63 **, 64 **, |
| 160 **(70001 ) | ||
| Thrust Ball Bearing | 511 ** (81) ,512 **(82) ,513 (83) ,514 ** (84) series and Angular Contact Thrust all Bearings like: 5617 ** (1687) ,5691 ** (91681), 5692 ** (91682) series | |
| Angular Contact Ball bearing | SN718 **(11068 ) ,70 ** 72 **,73 **, and B (66), C (36), AC (46) series ; otherwise include QJ and QJF series | |
| Roller Bearing | Spherical Roller bearing | 239**, 230**,240**, 231**, 241**, 222**, 232**, 223**, 233**, 213**, 238**, 248**, 249**and special series include 26** i.e 2638 (3738), 2644 (3844) and so on |
| Taper Roller Bearing | 329**(20079),210**(71), 320**(20071),302**(72), 322**(75), 303**(73), 313**(273),323**(76), 3519**(10979), 3529**(20979),3510**(971), 3520**(20971),3511**(10977), 3521**(20977), 3522**(975), 319**(10076),3819**(10779),3829**(20779), 3810**(777,771), 3820**(20771), 3811**(10777,777) for example: 77752, 77788, 77779 and also include Inch series bearings suchas 938/932 single and double row i.e M255410CD etc. | |
| Thrust Roller Bearing | 292**(90392), 293**(90393),294**(90394),994**(90194), and 9069 series. | |
| Cylindrical Roller Bearing | NU10**, NU2**,NU22**, NU3**,NU23**, NU4**, N, NJ ,NUP series as well as NB, NN, NNU series of big bearings, and we also have Split Bearings 412740, 422740 used in cement industry.And FC, FCD series used in Steel Industry. |
Why Choose US?
Wide product range: We can provide almost all kinds of bearings, ranges from I.D 2.5 mm up to O.D 6,000 mm
Customized solution: We can design and develop special bearings or provide economical solution according to your application.
Supply chain management: Beside our bearing products, we can also help you to purchase other industrial components, control quality and do assembly, then to further help you achieve higher operation efficiency.
Application technical service: FSK’s technical team is much experienced in automobile bearings, industry bearings, and even aerospace bearings. We are able to provide support on bearing selection, design optimization, product development, bearing mounting, bearing maintenance, lubrication and etc.
Quality control service: With our comprehensive inspection methods, our quality control covers material, heat treatment, dimensions, profile, roughness, clearance, noise and so on. Our experienced QA team is able to control quality whatever during the production, or before the shipment, to guarantee that our customer will only receive quality, but not trouble.
Logistic service: Cooperating with world leading logistic partners, our professional international service team will be pleased to offer you our best service.
Credit service: You are able to enjoy a certain level of payment credit based on your record, to help you enlarge your business.
FSK Cooperation Details
Delivery:
For Small weight or ungent ,we send by express UPS,DHL,FEDEX, or EMS,china post with Thracking number
For max production , we will ship by sea/air.
Payment Item:
TT, 30% deposit , 70% before shippment.
L/C At Sight
Paypal Or Western Union In advance
Service:
Trade Assurance
Payment Protection
Timely Delivery Guaranteed
Product Qualtity Protection
FSK Company Information
Cambered CS203 Single Row Ball Bearing Insert Bearing for Printing Machine , Get Cheap Price from China Bearing Factory Now !
