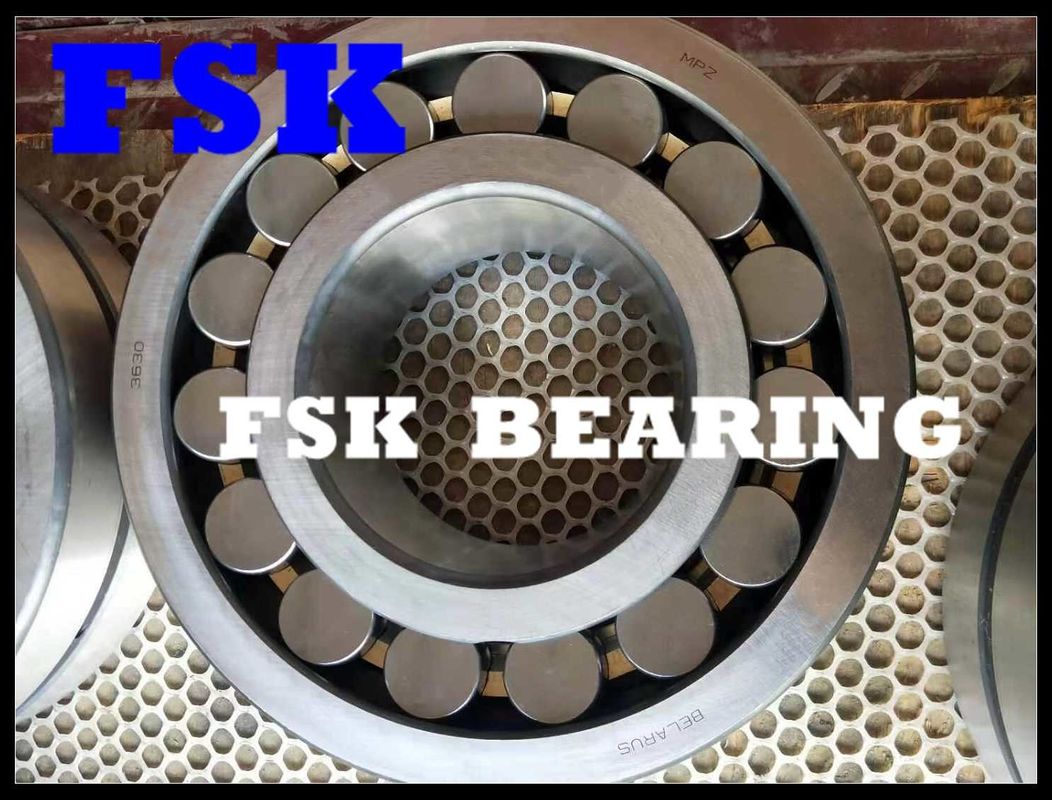

Heavy Duty 3630 Spherical Roller Bearing Vibrating Screen Accessories , 22330 CC/W33

Heavy Duty 3630 Spherical Roller Bearing Vibrating Screen Accessories , 22330 CC/W33

  • Heavy Duty 3630 Spherical Roller Bearing Vibrating Screen Accessories  , 22330 CC/W33
  • Heavy Duty 3630 Spherical Roller Bearing Vibrating Screen Accessories  , 22330 CC/W33
Heavy Duty 3630 Spherical Roller Bearing Vibrating Screen Accessories  , 22330 CC/W33
Product Details:
Place of Origin: CHINA
Brand Name: FSKG / KBE / OEM / Any Brand
Certification: ISO9001-2000 / CE / ROHS / UL / SGS
Model Number: 3630
Payment & Shipping Terms:
Minimum Order Quantity: 1 pcs
Price: Talk in the letter
Packaging Details: 1)COLOURED SINGLE BOX PACKING + CARTON BOX PACKING + PALLETS , 2) INDUSTRIAL PACKING
Delivery Time: 5-7Days After Details Confirmed
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 100000pcs/month
Contact Now
Detailed Product Description
Model No.: 3630 Size: 150 X 320 X 108mm
Weight: 43.5kg Sale Area: Northeast Asia, Southeast Asia, Africa, Middle East, Europe, North America, South America
Other Model: 22330 CC/W33 Bearing Cage: Brass Cage
High Light:

Heavy Duty w33 bearing

,

Vibrating Screen w33 bearing

,

Spherical Roller w33 bearing

Heavy Duty 3630 Spherical Roller Bearing Vibrating Screen Accessories , 22330 CC/W33



Bearing Specification :

FSK BEARING Model Number 3630
Part Name Spherical Roller Bearing
Row Double Row
Dimensions(mm)(d*D*b) 150 x 320 x 108mm
Weight / Mass ( KG ) 43.5kg
Precision Rating ABEC-3 / ABEC-5
Brand FSKG / KBE / OEM / Any Brand
Original Country Show

CHINA ( FSKG)

Cage Brass Cage



Bearing Drawing Photos :

Heavy Duty 3630 Spherical Roller Bearing Vibrating Screen Accessories  , 22330 CC/W33 0

Heavy Duty 3630 Spherical Roller Bearing Vibrating Screen Accessories  , 22330 CC/W33 1

Same Series Bearing List

Model Old Model Bore Size(mm) Outer Diameter(mm) High(mm) Weight(kg)
22307 3607 35 80 31 0.75
22308 3608 40 90 33 1.03
22309 3609 45 100 36 1.4
22310 3610 50 110 40 1.9
22311 3611 55 120 43 2.4
22312 3612 60 130 46 3
22313 3613 65 140 48 3.6
22314 3614 70 150 51 4.4
22315 3615 75 160 55 5.4
22316 3616 80 170 58 6.4
22317 3617 85 180 60 7.4
22318 3618 90 190 64 8.8
22319 3619 95 200 67 10.3
22320 3620 100 215 73 13
22322 3622 110 240 80 18.1
22324 3624 120 260 86 22
22326 3626 130 280 93 29
22328 3628 140 300 102 36
22330 3630 150 320 108 43
22332 3632 160 340 114 51
22334 3634 170 360 120 60
22336 3636 180 380 126 70
22338 3638 190 400 132 81
22340 3640 200 420 138 94
22344 3644 220 460 145 119
22348 3648 240 500 155 153



The Other Bearings We Do

Ball Bearing Deep Groove Ball Bearing 60 **,618 ** (1008), 619**(1009),62 **, 63 **, 64 **,
160 **(70001 )
Thrust Ball Bearing 511 ** (81) ,512 **(82) ,513 (83) ,514 ** (84) series and Angular Contact Thrust all Bearings like: 5617 ** (1687) ,5691 ** (91681), 5692 ** (91682) series
Angular Contact Ball bearing SN718 **(11068 ) ,70 ** 72 **,73 **, and B (66), C (36), AC (46) series ; otherwise include QJ and QJF series
Roller Bearing Spherical Roller bearing 239**, 230**,240**, 231**, 241**, 222**, 232**, 223**, 233**, 213**, 238**, 248**, 249**and special series include 26** i.e 2638 (3738), 2644 (3844) and so on
Taper Roller Bearing 329**(20079),210**(71), 320**(20071),302**(72), 322**(75), 303**(73), 313**(273),323**(76), 3519**(10979), 3529**(20979),3510**(971), 3520**(20971),3511**(10977), 3521**(20977), 3522**(975), 319**(10076),3819**(10779),3829**(20779), 3810**(777,771), 3820**(20771), 3811**(10777,777) for example: 77752, 77788, 77779 and also include Inch series bearings suchas 938/932 single and double row i.e M255410CD etc.
Thrust Roller Bearing 292**(90392), 293**(90393),294**(90394),994**(90194), and 9069 series.
Cylindrical Roller Bearing NU10**, NU2**,NU22**, NU3**,NU23**, NU4**, N, NJ ,NUP series as well as NB, NN, NNU series of big bearings, and we also have Split Bearings 412740, 422740 used in cement industry.And FC, FCD series used in Steel Industry.



FSK Bearing Company Advantages:
(1) We have first-class testing equipment to detect bearing various data parameters and control the quality of the bearing.
Whenever bearings must first detected whether the quality is qualified and the unqualified bearing will be eliminated directly.
So we can get the trust of a large number of customers, and supply them for several years.
(2) We have our own R & D capabilities, to help customers solve the problem of non-standard bearings.
We can also according to customer requirements change their own mark.
(3) Price, our manufacture ensure that our prices across China are quite competitive.
It is better for you to compare prices and quality among suppliers.
But everyone knows you can not buy the highest quality products with the lowest price,
but our product is the best quality if you use equal price.
