Home > products > Deep Groove Ball Bearing > Miniature Single Row EE series Deep Groove Ball Bearing EE3 / EE4 / EE5

Miniature Single Row EE series Deep Groove Ball Bearing EE3 / EE4 / EE5

Product Details

Place of Origin: CHINA

Brand Name: FSK / FAG / NSK / KOYO / NTN / OEM Brand

Certification: ISO9001-2000 / CE / ROHS / UL / SGS

Model Number: EE3

Payment & Shipping Terms

Minimum Order Quantity: 1 pcs

Price: Talk in the letter

Packaging Details: 1)COLOURED SINGLE BOX PACKING + CARTON BOX PACKING + PALLETS , 2) INDUSTRIAL PACKING

Delivery Time: 5-7Days After Details Confirmed

Payment Terms: L/C, T/T, Western Union, MoneyGram

Supply Ability: 100000pcs/month

Get Best Price
Highlight:

double row deep groove ball bearing

,

single row deep groove ball bearing

Model No.:
EE3
Size30:
9.525 X 22.225 X 5.558mm
Weight:
0.009kg
Seal:
Open Type Without Seal
Row:
Single Row
Material:
Gcr15 Chrome Steel / Stainless Steel
Model No.:
EE3
Size30:
9.525 X 22.225 X 5.558mm
Weight:
0.009kg
Seal:
Open Type Without Seal
Row:
Single Row
Material:
Gcr15 Chrome Steel / Stainless Steel
Miniature Single Row EE series Deep Groove Ball Bearing EE3 / EE4 / EE5

Miniature Single Row EE series Deep Groove Ball Bearing EE3 / EE4 / EE5

Bearings Specification :

Model Number

EE3

Part Name

Deep Groove Ball Bearing

Brand

FSK / FAG / NSK / KOYO / NTN / OEM Brand

Material Gcr15 Chrome Steel / Stainless Steel

Dimensions(mm)(d*D*b)

9.525 X 22.225 X 5.558mm

Weight / Mass ( KG )

0.009kg

HS Code

8482100000

Original Country Show

CHINA

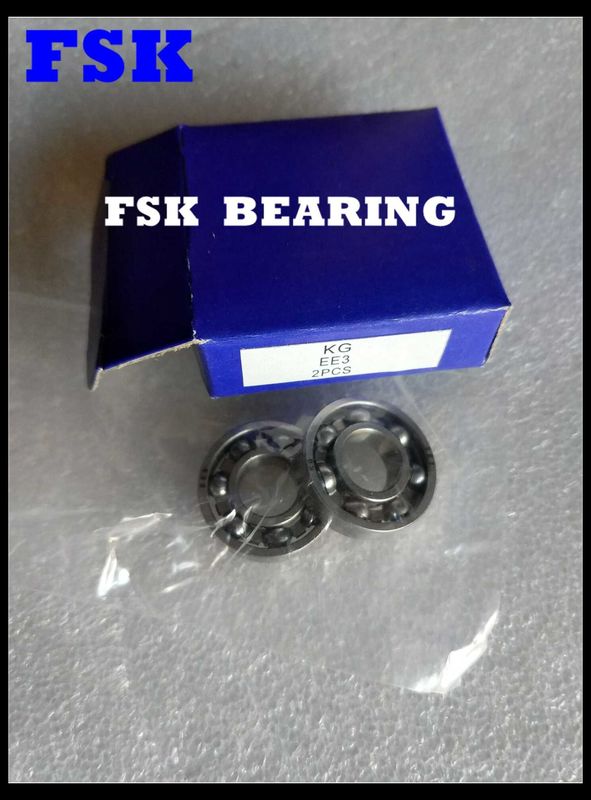

Bearings Detailed Pictures :
Miniature Single Row EE series Deep Groove Ball Bearing EE3 / EE4 / EE5 0
Miniature Single Row EE series Deep Groove Ball Bearing EE3 / EE4 / EE5 1
Miniature Single Row EE series Deep Groove Ball Bearing EE3 / EE4 / EE5 2
Miniature Single Row EE series Deep Groove Ball Bearing EE3 / EE4 / EE5 3

Part Catalog of Inched Ball Bearings

Bearing Numbers Boundary dimensions(mm) Load rating N Weightkg
Id Od Width B
Bearing Bearing d D OPEN Closed Cr Cor
EE0   3.175 12.7 4.366 4.366 715 283 0.0033
EE1   4.762 12.7 3.969 4.978 1310 485 0.0029
EE2 KLNJ-1/4 6.35 19.05 5.556 7.144 2410 911 0.01
EE3 KLNJ-3/8 9.525 22.225 5.556 7.144 3350 1410 0.0177
EE4 KLNJ-1/2 12.7 28.575 6.35 7.938 5110 2380 0.021
EE5 KLNJ-5/8 15.875 34.925 7.144 8.731 6000 3250 0.0367
EE6 KLNJ-3/4 19.05 41.275 7.938 11.112 8370 4520 0.063
EE7   19.05 44.45 9.525 12.7 9390 5020 0.09
EE8 KLNJ-7/8 22.225 47.625 9.525 12.7 10060 5920 0.097
EE9 KLNJ-1 25.4 50.8 9.525 12.7 10060 5920 0.107
EE10 KLNJ-1-1/8 28.575 53.975 9.525 12.7 11900 7460 0.122
EE11 KLNJ-1-1/4 31.75 57.15 9.525 12.7 13230 8300 0.125
EE12 KLNJ-1-3/8 34.925 63.5 11.112 14.288 16210 10420 0.165
EE13 KLNJ-1-1/2 38.1 66.675 11.112 14.288 17030 11700 0.176



The Other Bearings We Do

Ball Bearing Deep Groove Ball Bearing 60 **,618 ** (1008), 619**(1009),62 **, 63 **, 64 **,
160 **(70001 )
Thrust Ball Bearing 511 ** (81) ,512 **(82) ,513 (83) ,514 ** (84) series and Angular Contact Thrust all Bearings like: 5617 ** (1687) ,5691 ** (91681), 5692 ** (91682) series
Angular Contact Ball bearing SN718 **(11068 ) ,70 ** 72 **,73 **, and B (66), C (36), AC (46) series ; otherwise include QJ and QJF series
Roller Bearing Spherical Roller bearing 239**, 230**,240**, 231**, 241**, 222**, 232**, 223**, 233**, 213**, 238**, 248**, 249**and special series include 26** i.e 2638 (3738), 2644 (3844) and so on
Taper Roller Bearing 329**(20079),210**(71), 320**(20071),302**(72), 322**(75), 303**(73), 313**(273),323**(76), 3519**(10979), 3529**(20979),3510**(971), 3520**(20971),3511**(10977), 3521**(20977), 3522**(975), 319**(10076),3819**(10779),3829**(20779), 3810**(777,771), 3820**(20771), 3811**(10777,777) for example: 77752, 77788, 77779 and also include Inch series bearings suchas 938/932 single and double row i.e M255410CD etc.
Thrust Roller Bearing 292**(90392), 293**(90393),294**(90394),994**(90194), and 9069 series.
Cylindrical Roller Bearing NU10**, NU2**,NU22**, NU3**,NU23**, NU4**, N, NJ ,NUP series as well as NB, NN, NNU series of big bearings, and we also have Split Bearings 412740, 422740 used in cement industry.And FC, FCD series used in Steel Industry.
