21312 E1 , 21312E1-TVPB Double Row Spherical Roller Bearing Rolling Mill Bearing

Product Details

Place of Origin: CHINA

Brand Name: FSKG / KBE / FAG / NTN / NSK / KOYO / OEM

Certification: ISO9001-2000 / CE / ROHS / UL

Model Number: 21312 E1

Payment & Shipping Terms

Minimum Order Quantity: 1 pcs

Price: Let's Chat in Detail

Packaging Details: 1.Industrial packaging: plastic bag + kraft paper + carton + plywood pallets; plastic tube + carton + plywood pallets; 2. Commercial packing: 1pc/plastic bag + color box + carton + plywood pallets 3. As the clients' requirement

Delivery Time: 3 Days After Details Confirmed

Payment Terms: L/C, T/T, Western Union, MoneyGram

Supply Ability: 10000pcs/day

Get Best Price
Highlight:

timken spherical roller bearing

,

double row spherical roller bearing

Model No.:
21312 E1
Size:
60 × 130 × 31 Mm
Weight:
1.89kg
Advantage:
Low Vocie,high Speed, Long Life
Feature:
Adapter Sleeve
Near Model:
21312-E1-XL Bearing
Model No.:
21312 E1
Size:
60 × 130 × 31 Mm
Weight:
1.89kg
Advantage:
Low Vocie,high Speed, Long Life
Feature:
Adapter Sleeve
Near Model:
21312-E1-XL Bearing
21312 E1 , 21312E1-TVPB Double Row Spherical Roller Bearing Rolling Mill Bearing

Double Row 21312 E1 Spherical Roller Bearing Mining Metallurgical Rolling Mill Bearing



Bearing Specification :

FSK BEARING Model Number

21312 E1

Part Name

Spherical Roller Bearing

Brand

FSKG / KBE / FAG / NTN / NSK / KOYO / OEM

Precision Rating

ABEC-1 to ABEC-9

Material Gcr15 Chrome Steel

Dimensions(mm)(d*D*b)

60 × 130 × 31 mm

Weight / Mass ( KG )

1.89kg

HS Code

8482800000

Original Country Show CHINA

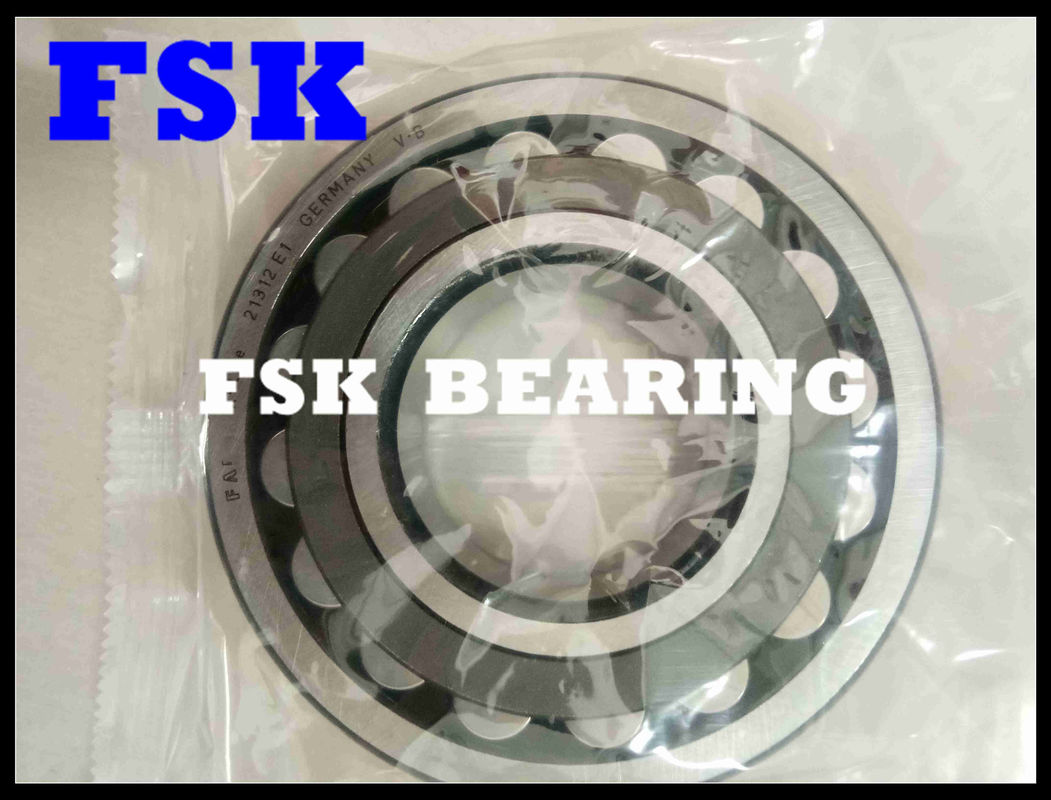

Bearings Detailed Pictures :

21312 E1 , 21312E1-TVPB Double Row Spherical Roller Bearing Rolling Mill Bearing 0

21312 E1 , 21312E1-TVPB Double Row Spherical Roller Bearing Rolling Mill Bearing 1

Types of Spherical Roller Bearings

For Spherical Roller Bearings, the dimensional series are:

  • 21300 Series - ISO Dimension Series 13 Spherical Roller Bearings
  • 22200 Series - ISO Dimension Series 22 Spherical Roller Bearings
  • 22300 Series - ISO Dimension Series 23 Spherical Roller Bearings
  • 23000 Series - ISO Dimension Series 30 Spherical Roller Bearings
  • 23100 Series - ISO Dimension Series 31 Spherical Roller Bearings
  • 23200 Series - ISO Dimension Series 32 Spherical Roller Bearings
  • 232  /  Series - Extra Large ISO 32 Series Spherical Roller Bearings
  • 23900 Series - ISO Dimension Series 39 Spherical Roller Bearings
  • 24000 Series - ISO Dimension Series 40 Spherical Roller Bearings
  • 24100 Series - ISO Dimension Series 41 Spherical Roller Bearings
  • 29000 Series - ISO Dimension Series 90 Spherical Thrust Roller Bearings

Spherical Roller Bearings are commonly used in agricultural machines such as combined harvesting machine, air-blower, paper-machine, textile machine, woodworking machinery, overhead crane moving wheel and driving shaft as well as a large number of non agricultural applications.



21312 E1 , 21312E1-TVPB Double Row Spherical Roller Bearing Rolling Mill Bearing 2

Bearing Model Specification(mm) Dynamic Load Static Load Limied Speed(rpm) Mass
Round Hole with Taper Hole d D B r Cr(N) Cor(N) Grease Oil (kg)
(min)
22212EX 22212EXK 60 110 28 1.5 151000 179000 3200 4000 1.2
22212AEX 22212AEXK 60 110 28 1.5 129000 144000 4100 5200 1.22
21312EX1 21312EX1K 60 130 31 2.1 168000 193000 2800 3700 2.1
21312AX 21312AXK 60 130 31 2.1 164000 192000 3500 4500 2.19
22312EX 22312EXK 60 130 46 2.1 281000 330000 2800 3600 3.05
22312AEX 22312AEXK 60 130 46 2.1 244000 275000 3600 4600 3.01
22213EX 22213EXK 65 120 31 1.5 177000 209000 2800 3600 1.56
22213AEX 22213AEXK 65 120 31 1.5 153000 169000 3800 4800 1.6
21313EX1 21313EX1K 65 140 33 2.1 194000 232000 2600 3400 2.6
21313AX 21313AXK 65 140 33 2.1 188000 222000 3000 4000 2.69
22313EX 22313EXK 65 140 48 2.1 300000 355000 2400 3200 3.67
22313AEX 22313AEXK 65 140 48 2.1 273000 310000 3300 4300 3.64
22214EX 22214EXK 70 125 31 1.5 185000 220000 2600 3400 1.65
22214AEX 22214AEXK 70 125 31 1.5 162000 185000 3600 4600 1.69
21314EX1 21314EX1K 70 150 35 2.1 215000 260000 2400 3200 3.1
21314AX 21314AXK 70 150 35 2.1 220000 268000 3000 4000 3.3
22314EX 22314EXK 70 150 51 2.1 345000 415000 2200 3000 4.45
22314AEX 22314AEXK 70 150 51 2.1 320000 365000 3100 4000 4.46
22215EX 22215EXK 75 130 31 1.5 191000 234000 2400 3200 1.74
22215AEX 22215AEXK 75 130 31 1.5 168000 191000 3400 4400 1.76
21315EX1 21315EX1K 75 160 37 2.1 245000 298000 2200 3000 3.8
21315AX 21315AXK 75 160 37 2.1 234000 286000 2500 3500 3.95
22315EX 22315EXK 75 160 55 2.1 395000 475000 2000 2800 5.44
22315AEX 22315AEXK 75 160 55 2.1 355000 415000 2900 3700 5.44
22216EX 22216EXK 80 140 33 2 215000 269000 2200 3000 2.19
22216AEX 22216AEXK 80 140 33 2 201000 230000 3200 4100 2.24
23216E 23216EK 80 140 44 2 241000 335000 2300 2500 2.95
21316EX1 21316EX1K 80 170 39 2.1 275000 339000 2100 2800 4.5
21316AX 21316AXK 80 170 39 2.1 257000 318000 2500 3500 4.67
22316EX 22316EXK 80 170 58 2.1 430000 520000 1900 2600 6.42
22316AEX 22316AEXK 80 170 58 2.1 395000 465000 2700 3500 6.43
22217EX 22217EXK 85 150 36 2 255000 320000 2000 2800 2.75
22217AEX 22217AEXK 85 150 36 2 223000 260000 2800 3800 2.82
23217E 23217EK 85 150 49 2 285000 405000 2100 2400 3.78
21317EX1 21317EX1K 85 180 41 3 300000 372000 2000 2600 5.3
21317AX 21317AXK 85 180 41 3 290000 364000 2500 3000 5.52
22317EX 22317EXK 85 180 60 3 480000 585000 1800 2400 7.46
22317AEX 22317AEXK 85 180 60 3 425000 500000 2600 3300 7.47



About FSK Bearing Company:

21312 E1 , 21312E1-TVPB Double Row Spherical Roller Bearing Rolling Mill Bearing 3



Advantage :
1. Low friction
2. Wear resistant
3. Easy replacement
4. Minimum lubrication
5. Requires little attention
6. Running in not required
7. Dimensions relatively small
8. No scraping required to fit shaft
