Product Details
Place of Origin: CHINA
Brand Name: ZWZ / KOYO / NSK / FAG / FSK / OEM
Certification: ISO9001-2000 / SGS / BV / CE / IAF
Model Number: 314190
Payment & Shipping Terms
Minimum Order Quantity: 1 pcs-5pcs
Price: 0.1-20USD
Packaging Details: 1)COLOURED SINGLE BOX PACKING + CARTON BOX PACKING + PALLETS , 2) PLASTIC TUBE PACKING / KRAFT PACKING
Delivery Time: 3-7Days After Deposit
Payment Terms: 30% Deposit , Balance After BL Copy
Supply Ability: 100000pcs/month
Model No.: |
314190 |
Size: |
160mm × 230mm × 130mm |
Weight: |
17kg |
Bearing Name: |
Rolling Mill Bearing |
Row: |
Four Row |
Other Model: |
FC3246130 |
Model No.: |
314190 |
Size: |
160mm × 230mm × 130mm |
Weight: |
17kg |
Bearing Name: |
Rolling Mill Bearing |
Row: |
Four Row |
Other Model: |
FC3246130 |
ISO Certification 314190 FC3246130 Four Row Cylindrical Roller Bearing Brass Cage
314190 Bearing Drawing and Specification :
| Model Number | 314190 |
| Part Name | Cylindrical Roller Bearing |
| Brand | ZWZ / KOYO / NSK / FAG / FSK / OEM |
| Precision Rating | ABEC-3 / ABEC-5 |
| Row | Four Row |
| Dimensions(mm)(d*D*b) | 160mm × 230mm × 130mm |
| Weight / Mass ( KG ) | 17kg |
| HS Code | 8482500000 |
| Original Country Show | CHINA |

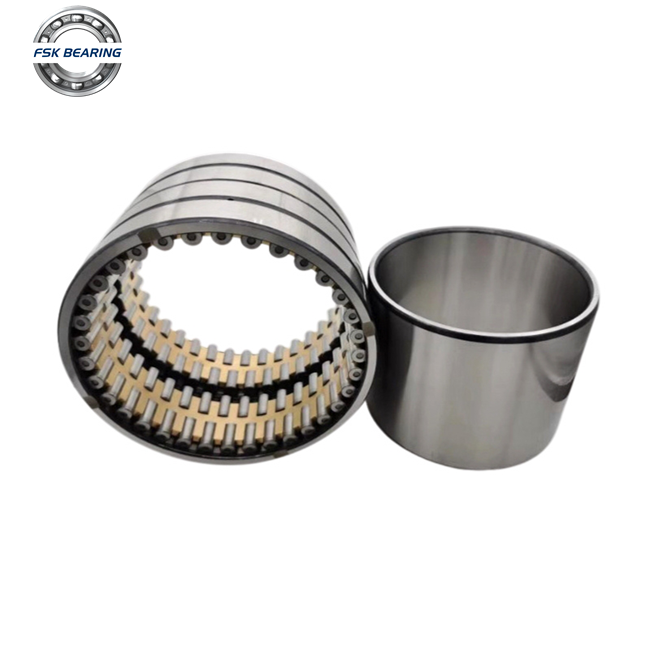

Bearings Detailed Pictures :
Part List of Our Four Row Cylindrical Roller Bearings
| Size(mm) | Limited SpeedRPM) | Bearing No. | OEM No. | |||||||
| d | D | B | Oil | Grease | FSK | FAG | NSK | NTN | KOYO | |
| 100 | 135 | 80 | 3500 | 4100 | FC202780 | |||||
| 100 | 140 | 70 | 3400 | 4000 | FC202870 | |||||
| 100 | 140 | 80 | 3400 | 4000 | FC202880 | |||||
| 100 | 145 | 70 | 3400 | 4000 | FC202970 | |||||
| 100 | 150 | 106 | 3400 | 4000 | FC2030106 | |||||
| 110 | 170 | 90 | 2800 | 3600 | FC223490 | 22FC1790 | ||||
| 110 | 170 | 120 | 2800 | 3600 | FC2234120 | 110RV1701 | ||||
| 110 | 180 | 92 | 2600 | 3400 | FC243692 | 4R2437 | ||||
| 110 | 180 | 105 | 2600 | 3400 | FC2436105 | 4R2438 | 4CR120 | |||
| 130 | 200 | 104 | 2400 | 3000 | FC2640104 | 4R2628 | 26FC20104 | |||
| 130 | 200 | 125 | 2400 | 3000 | FC2640125 | 130RV2001 | 26FC20125 | |||
| 140 | 190 | 119 | 2400 | 3000 | FC2838119 | 4R2832 | 28FC19119W | |||
| 140 | 210 | 80 | 2200 | 2800 | FC284280 | |||||
| 140 | 210 | 106 | 2200 | 2800 | FC2842106 | |||||
| 140 | 210 | 125 | 2200 | 2800 | FC2842125 | |||||
| 140 | 210 | 155 | 2200 | 2800 | FC2842155 | |||||
| 145 | 210 | 155 | 2200 | 2800 | FC2942155 | 314625 | 511605 | 145RV2101 | 4R2906 | 29FC21155 |
| 145 | 225 | 156 | 2000 | 2600 | FC2945156 | 313924A | 538522 | 145RV2201 | 4R2904 | 313924 |
| 150 | 200 | 120 | 2200 | 2800 | FC3040120 | 30FC20120 | ||||
| 150 | 210 | 120 | 2200 | 2800 | FC3042120 | |||||
| 150 | 210 | 120 | 2200 | 2800 | FCD3042120 | |||||
| 150 | 210 | 120 | 2200 | 2800 | FCD3042120 | 30FC21120 | ||||
| 150 | 210 | 150 | 2200 | 2800 | FC3042150 | 30FC21150 | ||||
| 150 | 220 | 120 | 2000 | 2600 | FC3044120 | |||||
| 150 | 220 | 127 | 2000 | 2600 | FC3044127 | 4R3036 | ||||
| 150 | 220 | 150 | 2000 | 2600 | FC3044150 | 30FC22150 | ||||
| 150 | 220 | 150 | 2000 | 2600 | FC3044150A | 150RV2201 |
4R3031/ 4R3056 |
30FC22150A | ||
| 150 | 225 | 112 | 2000 | 2600 | FCD3045112 | |||||
| 150 | 225 | 120 | 2000 | 2600 | FC3045120 | |||||
| 150 | 225 | 120 | 2000 | 2600 | FCD3045120 | |||||
| 150 | 225 | 150 | 2000 | 2600 | FC3045150 | |||||
| 150 | 225 | 150 | 2000 | 2600 | FC3045150A | 150RV2203 | ||||
| 150 | 225 | 136 | 2000 | 2600 | FC3045136 | 150RV2204 | ||||
| 150 | 230 | 130 | 2000 | 2600 | FC3046130 | 150RV2301 | 4R3029 | |||
| 150 | 230 | 156 | 2000 | 2600 | FC3046156 | 313891A | 506962 | 150RV2302 | 4R3040 | 313891-1 |
| 150 | 230 | 168 | 2000 | 2600 | FC3046168 | 4R3042 | ||||
| 150 | 250 | 120 | 2000 | 2600 | FC3050120 | |||||
| 150 | 250 | 150 | 2000 | 2600 | FC3050150 | 4R3039 | ||||
| 160 | 220 | 180 | 2000 | 2600 | FC3244180 | 4R3224 | 32FC22180 | |||
| 160 | 230 | 130 | 2000 | 2600 | FC3246130 | 314190 | 502894 | 4R3226 | 314190 | |
| 160 | 230 | 130 | 2000 | 2600 | FC3246130A | 160RV2301 | ||||
| 160 | 230 | 168 | 2000 | 2600 | FC3246168 | 315189A | 510150B | 4R3232 | 32FC23170B | |
| 160 | 230 | 168 | 2000 | 2600 | FC3246168A | 160RV2302 | 4R3229 | 32FC23170A | ||
| 160 | 230 | 168 | 2000 | 2600 | FC3246168A1 | 4R3231 | 32FC23170 | |||
| 160 | 230 | 180 | 2000 | 2600 | FC3246180 | 4R3228 | 32FC23180A | |||
| 160 | 230 | 180 | 2000 | 2600 | FC3246180A | 160RV2303 | ||||
| 160 | 240 | 120 | 1900 | 2400 | FC3248120 | 160RV2401 | 32FC24120W | |||
| 160 | 240 | 124 | 1900 | 2400 | FC3248124 | |||||
| 160 | 240 | 145 | 1900 | 2400 | FC3248145 | 160RV2403 | ||||
| 160 | 240 | 168 | 1900 | 2400 | FC3248168 | |||||
| 160 | 240 | 168 | 1900 | 2400 | FCD3248168 | |||||
| 160 | 240 | 170 | 1900 | 2400 | FC3248170 | 160RV2402 | 4R3225 | 32FC24170 | ||
| 170 | 230 | 120 | 1900 | 2400 | FC3446120 | 170RV2301 |
4R3426/ 4R3443 |
34FC23120 | ||
| 170 | 230 | 130 | 1900 | 2400 | FC3446130 | 313673 | 508370 | |||
| 170 | 230 | 160 | 1900 | 2400 | FCD3446160 | 567622 | ||||
| 170 | 230 | 180 | 1900 | 2400 | FC3446180 | |||||
| 170 | 240 | 130 | 1800 | 2300 | FC3448130 | BC4B635122 | 510440B | |||
| 170 | 240 | 156 | 1900 | 2400 | FC3448156 | 4R3429 | 34FC24156B | |||
| 170 | 240 | 156 | 1900 | 2400 | FC3448156A | 34FC24156A | ||||
| 170 | 240 | 160 | 1900 | 2400 | FC3448160 | 170RV2402 | 4R3423 | |||
| 170 | 240 | 190 | 1900 | 2400 | FC3448190 | 34FC24190 | ||||
| 170 | 250 | 168 | 1800 | 2200 | FC3450168 | 170RV2501 | 34FC25168 | |||
| 170 | 250 | 168 | 1800 | 2200 | FC3450168A |
4R3432/ 4R3428 |
||||
| 170 | 250 | 170 | 1800 | 2200 | FC3450170 | 170RV2502 | 34FC25170 | |||
| 170 | 255 | 180 | 1800 | 2200 | FC3451180 | 170RV2503 | 4R3425 | |||
| 170 | 260 | 120 | 1800 | 2200 | FC3452120 | |||||
| 170 | 260 | 150 | 1800 | 2200 | FC3452150 | 170RV2602 | 34FC26150 | |||
| 170 | 260 | 150 | 1800 | 2200 | FC3452150A | 4R3433 | ||||
| 170 | 260 | 170 | 1800 | 2200 | FC3452170 | |||||
| 170 | 260 | 225 | 1800 | 2200 | FC3452225 | 313587B | 505470 | 4R3431 | ||
| 180 | 250 | 100 | 1800 | 2200 | FCD3650100 | |||||
| 180 | 250 | 120 | 1800 | 2200 | FC3650120 | |||||
| 180 | 250 | 156 | 1800 | 2200 | FC3650156 | 180RV2501 | 4R3625 | 36FC25156A | ||
| 180 | 250 | 168 | 1800 | 2200 | FC3650168 | 180RV2601 | 4R3639 |
313812W/36 FC26168 |
||
| 180 | 260 | 120 | 1800 | 2200 | FC3652120 | |||||
| 180 | 260 | 124 | 1800 | 2200 | FC3652124 | |||||
| 180 | 260 | 168 | 1800 | 2200 | FC3652168 | 313812 | 507536 | 180RV2601 | 4R3628 | 313812W |
| 180 | 260 | 168 | 1800 | 2200 | FCD3652168 | |||||
| 180 | 265 | 180 | 1800 | 2200 | FC3653180 | 180RV2602 | 4R3618 | |||
| 180 | 265 | 180 | 1800 | 2200 | FC3653180A | 180RV2603 | 36FC27180 | |||
| 180 | 280 | 180 | 1700 | 2000 | FC3656180 | 524372 | ||||
| 180 | 280 | 180 | 1700 | 2000 | FC3645180A | 180RV2802 | ||||
| 190 | 260 | 124 | 1700 | 2000 | FC3852124 | |||||
| 190 | 260 | 124 | 1700 | 2000 | FC3852124A | |||||
| 190 | 260 | 168 | 1700 | 2000 | FC3852168 | 313651 | 507735 | 190RV2601 | 4R3820 | 38FC26168-1 |
| 190 | 260 | 168 | 1700 | 2000 | FC3852168A | |||||
| 190 | 265 | 124 | 1700 | 2000 | FC3853124 | |||||
| 190 | 270 | 168 | 1700 | 2000 | FC3854168 | |||||
| 190 | 270 | 170 | 1700 | 2000 | FC3854170 | 190RV2703 | 38FC27170 | |||
| 190 | 270 | 170 | 1700 | 2000 | FC3854170A | 190RV2702 | 4R3818 | 38FC27170A | ||
| 190 | 270 | 200 | 1700 | 2000 | FC3854200 | 314199B | 508657 | 190RV2701 |
4R3821/ 4R3817 |
314199 |
| 190 | 280 | 200 | 1700 | 2000 | FC3856200 | 314049A | 510199 | 190RV2801 |
4R3823/ 4R3830 |
38FC28200 |
| 190 | 280 | 200 | 1700 | 2000 | FC3856200A | 313583 | ||||
| 190 | 290 | 190 | 1700 | 2000 | FC3858190 | 38FC29190 | ||||
| 200 | 250 | 200 | 1700 | 2000 | FC4050200 | 200RV2521 | ||||
| 200 | 270 | 170 | 1600 | 1900 | FC4054170 | 314553 | 522742B | 4R4039 | 314553 | |
| 200 | 280 | 152 | 1600 | 1900 | FC4056152 | 4R4054 |
40FC28152 BW |
|||
| 200 | 280 | 170 | 1600 | 1900 | FC4056170 | 314385 | 507344 | 4R4048 | 40FC28170 | |
| 200 | 280 | 170 | 1600 | 1900 | FC4056170A | 549864 | 200RV2804 | |||
| 200 | 280 | 188 | 1600 | 1900 | FC4056188 | 40FC28188 | ||||
Our Other Hot Sale Produsts
1. deep groove ball bearing 6000,6200,6300,6400,61800,61900,Z,RS,ZZ,2RS
2. spherical roller bearing 22200,22300,23000,24000,23100,24100,CA,CC,E,W33
3. cylindrical roller bearingN,NU,NJ,NN,NUP,E,ECP,ECM,ECJ
4. taper roller bearing 30200,30300,32200,32300,31300,32000
5. Aligning ball bearing 1200,1300,2200,2300,
6. needle roller bearing NA,NAV,NK,NKI,RNA,NK,RNAV,ZKLF,ZKLN,ZARF,ZARN
7. thrust ball bearing 51100,51200,51300,51400,E,M
8. angular contact ball bearing7000,7100,7200,7300,AC,BECBM,C
9. spherical plain bearing GE,GEG,GEEW,U,UC,UG,GX,GAC,SA,SABP
