Wuxi FSK Transmission Bearing Co., Ltd fskbearing@hotmail.com 86-510-82713083
Product Details
Place of Origin: CHINA
Brand Name: NSK / FAG / TORRINGTON / FSK / OEM
Certification: ISO9001-2000 / SGS / BV / CE / IAF
Model Number: 91754
Payment & Shipping Terms
Minimum Order Quantity: 1 pcs-5pcs
Price: 0.1-20USD
Packaging Details: 1)COLOURED SINGLE BOX PACKING + CARTON BOX PACKING + PALLETS , 2) PLASTIC TUBE PACKING / KRAFT PACKING
Delivery Time: 3-7Days After Deposit
Payment Terms: 30% Deposit , Balance After BL Copy
Supply Ability: 100000pcs/month
Model No.: |
91754 |
Size: |
270mm × 550mm × 130mm |
Weight: |
164kg |
Material: |
GCr15, GCr15SiMn, G20Cr2Ni4A |
Delivety Time: |
In Stock |
Cage: |
Brass Cage |
Model No.: |
91754 |
Size: |
270mm × 550mm × 130mm |
Weight: |
164kg |
Material: |
GCr15, GCr15SiMn, G20Cr2Ni4A |
Delivety Time: |
In Stock |
Cage: |
Brass Cage |
NSK FAG 91754 Thrust Tapered Roller Bearings Single Row 270mm × 550mm × 130mm
91754 Bearing Specification :
| Model Number | 91754 |
| Part Name | Thrust Tapered Roller Bearing |
| Brand | NSK / FAG / TORRINGTON / FSK / OEM |
| Precision Rating | ABEC-3 / ABEC-5 |
| Row | Single Row |
| Dimensions(mm)(d*D*b) | 270mm × 550mm × 130mm |
| Weight / Mass ( KG ) | 164kg |
| HS Code | 8482200000 |
| Original Country Show | JAPAN ( NSK ) |
Some Thrust Roller Bearing
| Bearing Name | Bearing No. | Old No. | ID | OD | Width | Mass |
| (mm) | (mm) | (mm) | (kg) | |||
| Thust Roller Bearing | 91718L | - | 90 | 160 | 26 | 2.25 |
| Thust Roller Bearing | 91742/YA | - | 210 | 460 | 122 | 0.95 |
| Thust Roller Bearing | 91742L | - | 210 | 460 | 122 | 107 |
| Thust Roller Bearing | 917/1290 | - | 1290 | 1550 | 120 | 495 |
| Thust Roller Bearing | 917/38.1ZHV | 129908 | 38.1 | 66 | 18 | 0.275 |
| Thust Roller Bearing | 917/38.5ZHV-2 | - | 38.5 | 66.7 | 18 | 0.24 |
| Thust Roller Bearing | 917/38.5ZSV-1 | - | 38.5 | 66.7 | 18 | 0.28 |
| Thust Roller Bearing | 917/42.1ZSV/YA | 329908K | 42.1 | 68 | 20 | 0.29 |
| Thust Roller Bearing | 917/47.3ZSV/YA | - | 47.3 | 79 | 22 | 0.463 |
| Thust Roller Bearing | 91752X3 | - | 260 | 360 | 92 | 26.6 |
| Thust Roller Bearing | 91754 | 19954H | 270 | 550 | 130 | 164 |
| Thust Roller Bearing | 91754X3 | - | 270 | 450 | 180 | 111 |
| Thust Roller Bearing | 917/273.603ZHV | - | 211.603 | 603.25 | 146.05 | 217 |
| Thust Roller Bearing | 81172 | 9172 | 360 | 440 | 65 | - |
| Thust Roller Bearing | 81176 | 9176 | 380 | 460 | 65 | - |

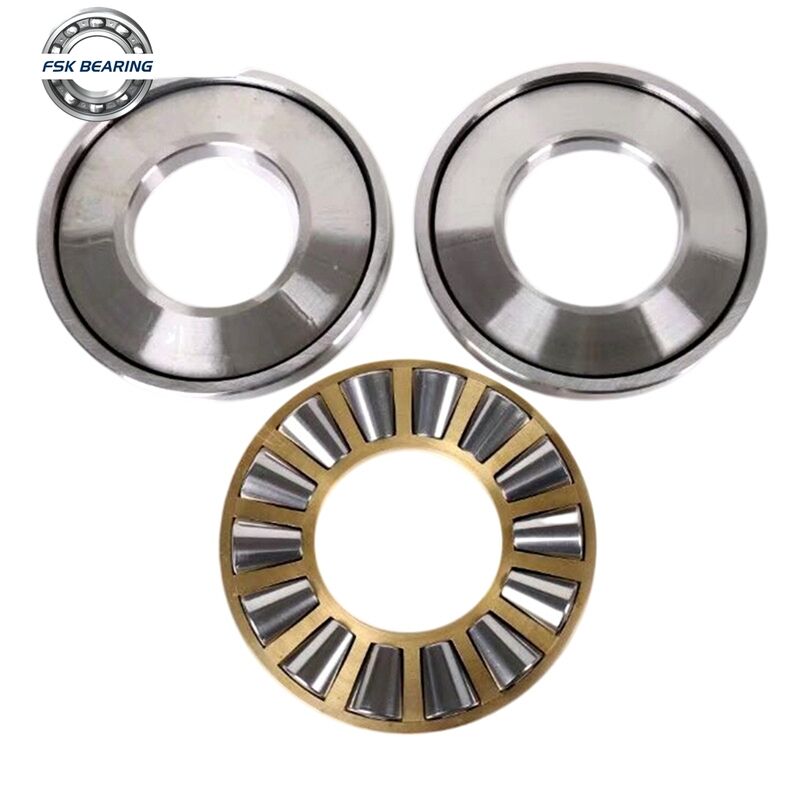

Bearings Detailed Pictures :
The Bearings We Can Offer
| FAG INA TIMKEN NSK KOYO NACHI NTN ASAHI FYH | Tapered Roller Bearing | 30200.30300.32200.32300.32000.33000 |
| Inched | ||
| Deep Groove Ball Bearing | 6000.6200.6300.6400.6800 | |
| Miniature Ball Bearing | ||
| Truck Wheel Bearing | 800792 A VKBA 5412 566425.H195 BTH 0022 | |
| Automobile Wheel Bearing | VKBA1343 DAC34620037 BA2B633313CA etc | |
| Air Conditioner Bearing | 30BD219 30BD40 30BD5222 | |
| Clutch Release Bearing | 68TKA3506AR TK701A1 78TK14001AR 54TKA3501 | |
| Spherical Roller Bearing | 22200 22300 23000 CC CA E | |
| Cylindrical Roller Bearing | good at LINK BELT cylindrical roller bearings | |
| Pillow Block Bearing with Housing | UCP UCF UCT UCFL UCFC etc | |
| Needle Roller Bearing | Full types of needle roller bearings | |
| Printing Machine Bearings | F series with needle roller and cylindrical roller structure |
About Wuxi FSK Bearing Company
FAQ
1.What should i do for extending the bearings life ?
1). Don't allow strong impact, such as hammer striking, transfer roller pressure
2). Use the accurate installation tool, avoid to use cloth kind and short fibers
3). Lubricate the bearing to avoid rust with high quality mineral oil, especially in summer
4). General inspection, such as the surrounding temperature, vibrate, noise inspection
5). Keep bearing cleaning from dirt, dust, pollutant, moisture.
6). Bearing should not be ultra cooled.
2. How long do I expect the goods to be sent out ?
(1) stock bearings can ship out within 3 days for small order ,if large order might use one week
(2) for large order need about 30days .
3.Whats the shipping method can we use ?
(1) Quantity not exceed 5000pcs ,can use express shiping (ups,dhl,fedex,tnt)
(2) Quantity exceed 5000pcs, can ship by sea
4.Can I use Money Gram ?
Sure , we accept TT,L/C,Money Gram,Western Union ,you can use as you wish
5. Can I request Carton Packing ?
Yes ,of couse , we can pack the goods as your request .either export box or wooden pallet or carton packing all is ok .
6. How should I know if your bearings quality is ok ?
Thats a good question ,each person has this kind of concern ,this is quite normal .
We have more than 11years making and selling experience in bearing ,we have very strict production line which made our product meets the clients requirement ,we also have very careful quanlity inspection team ,each product has to pass this step if it want to go abroad .Sample orders is acceptable for clients to see our quality . and no doublt we will mass make the product strictly as the sample .
NSK FAG 91754 Thrust Tapered Roller Bearings Single Row 270mm × 550mm × 130mm , Get Cheap Price from China Bearing Factory Now !
