Home > products > Ball Bearings > One Direction 569184 Thrust Ball Bearing 420*500*48mm Single Row

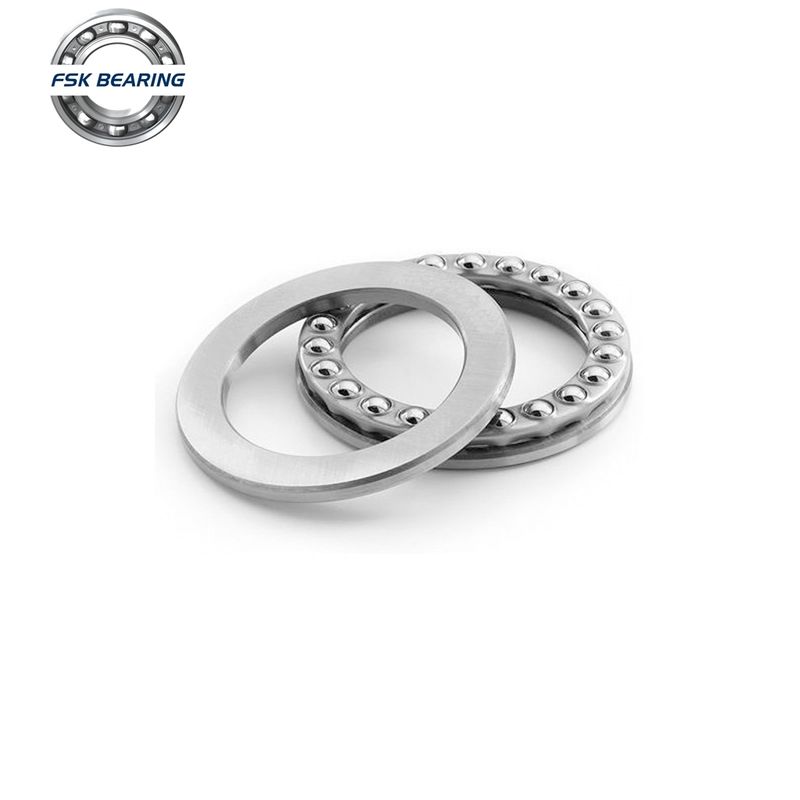

One Direction 569184 Thrust Ball Bearing 420*500*48mm Single Row

Product Details

Place of Origin: CHINA

Brand Name: TIMKEN / NSK / NTN / FSKG / KBE / OEM

Certification: ISO9001-2000 / SGS / BV / CE / IAF

Model Number: 569184 Bearing

Payment & Shipping Terms

Minimum Order Quantity: 1 pcs-5pcs

Price: 0.1-200USD

Packaging Details: 1)COLOURED SINGLE BOX PACKING + CARTON BOX PACKING + PALLETS , 2) PLASTIC TUBE PACKING / KRAFT PACKING

Delivery Time: 3-7Days After Deposit

Payment Terms: 30% Deposit , Balance After BL Copy

Supply Ability: 100000pcs/month

Get Best Price
Product Details
Highlight:

gcr15 ball bearings

,

abec-5 ball bearings

,

gcr15 thrust ball bearing

Model No.:
569184 Bearing
569184 Bearing Size:
420*500*48mm
569184 Bearing Kg:
15.9kg
Quality:
ABEC-5
Material:
Gcr15 Chrome Steel
Origin::
Wuxi
Model No.:
569184 Bearing
569184 Bearing Size:
420*500*48mm
569184 Bearing Kg:
15.9kg
Quality:
ABEC-5
Material:
Gcr15 Chrome Steel
Origin::
Wuxi
Product Description

One Direction 569184 Thrust Ball Bearing 420*500*48mm Single Row



 Bearing Specification :

FSK BEARING Model Number 569184
Part Name Thrust Ball Bearing
Application Oilfield Engineering;Rolling mill bearings
Row Single Row
Cage Iron Cage/Brass Cage
Material Gcr15 Chrome Steel
Brand TIMKEN / NSK / NTN / FSKG / KBE / OEM
Precision Rating ABEC-3 / ABEC-5
Dimensions(mm)(d*D*b) 420*500*48mm
Weight / Mass ( KG ) 15.9kg
HS Code 8482800000

Bearings Detailed Pictures

One Direction 569184 Thrust Ball Bearing 420*500*48mm Single Row 0

One Direction 569184 Thrust Ball Bearing 420*500*48mm Single Row 1

One Direction 569184 Thrust Ball Bearing 420*500*48mm Single Row 2

One Direction 569184 Thrust Ball Bearing 420*500*48mm Single Row 3

One Direction 569184 Thrust Ball Bearing 420*500*48mm Single Row 4

One Direction 569184 Thrust Ball Bearing 420*500*48mm Single Row 5

Same Series Bearing We Do:

Dimensions Rated load Bearing code Weight
mm KN
d D B r min Dynamic load Static load New code Old code Kg
160 200 31 1 112 404 51132 8132 2.3
170 215 34 1 475 1100 51134 8134 3.3
180 225 34 1.1 135 504 51136 8136 3.6
190 270 62 3 355 990 51238 8238 13
200 250 37 2 184 575 51140 8140 3.8
220 270 37 2 187 625 51144 8144 4.6
240 300 45 2.5 259 835 51148 8184 7.5
260 320 2.5 263 910 51152 8152 7.91
280 350 53 2.5 335 1150 51156 8156 11.8
300 380 62 2 346 1520 51160 8160 17.5
320 400 63 2 352 1615 51164 8164 18.8
340 420 64 2 358 1710 51168 8168 19.8
360 440 65 2 371 1805 51172 8172 21.1
400 480 65 2 383 2014 51180 8180 23
420 500 65 2 390 2090 51184 8184 24.2
440 540 80 2.1 501 2850 51188 8188 42
455 650 120 6 776 4851 51791 8791 131
460 560 80 2.1 501 2850 51192 8192 41.7
480 580 80 2.1 513 2898 51196 8196 42.5
500 600 80 2.1 525 3183 511/500 81/500 45.7
500 750 150 6 950 6320 593/500 90083/500 228
530 640 85 3 518 3311 511/530 81/530 55.8
560 610 30 1.1 128 960 590/560 90089/560 9.55
600 710 67 3 630 4275 591/600 90081/600 50.1
630 850 175 6 1124 7041 512/630 82/630 243
670 730 45 1.5 284 2160 510/670 10089/670 20.5
670 800 105 4 728 4420 511/670 81/670 92.2
710 950 109 6 787 980 572/710 70082/710 199
710 950 145 6 1025 1296 592/710 90082/710 284
750 900 90 4 810 6210 591/750V 97081/750 100
780 930 100 3.5 800 6069 517/780 87/780 129
1060 1250 115 5 940 1240 591/1060 97081/1060 215
1035 1300 96.8 4.5     517/1035 9089/1035 311
1180 1280 80 2.1 738 7660 510/1180 10089/1180 108
1720 1880 80 2.5     517/1720V 7089/4720
420 500 48 2 260 1440 569184 9168184 15.9
600 710 67 3 380 2484 517/590YA 518/590 356
500 600 60 2.1 322 1956 569188 9168188 25.5
940 1030 110 2.1 796 4272 527/940 389/940 135
950.8 1030 110 2.1 796 4272 527/950.8YB2 388/950 136
1181 1280 146 2.5 1192 7680 527/1181 389/1181 243
1050 1250 220 5     2327/1049/YA 2687/1049 408
1520 1720 270 7.5 2616 20520 527/1520 387/1520 693
