Home > products > Clutch Release Bearing > Auto Bus Bearing CT5747F3 Clutch Release Bearing 57*110*37mm GCr15SiMn

Auto Bus Bearing CT5747F3 Clutch Release Bearing 57*110*37mm GCr15SiMn

Product Details

Place of Origin: CHINA

Brand Name: FSKG / KBE / FAG / NTN / NSK / KOYO / OEM

Certification: ISO9001-2000 / CE / ROHS / UL

Model Number: CT5747F3

Payment & Shipping Terms

Minimum Order Quantity: 1pcs

Packaging Details: 1)COLOURED SINGLE BOX PACKING + CARTON BOX PACKING + PALLETS , 2) INDUSTRIAL PACKING

Get Best Price
Highlight:
Bearing No.:
CT5747F3
CT5747F3 Size:
57*110*37mm
CT5747F3 Weight:
1.5KG
Material:
Gcr15 Chrome Steel
Application:
Clutch Release Bearing
Origin:
Wuxi Jiangsu
Bearing No.:
CT5747F3
CT5747F3 Size:
57*110*37mm
CT5747F3 Weight:
1.5KG
Material:
Gcr15 Chrome Steel
Application:
Clutch Release Bearing
Origin:
Wuxi Jiangsu
Auto Bus Bearing CT5747F3 Clutch Release Bearing 57*110*37mm GCr15SiMn

Auto Bus Bearing CT5747F3 Clutch Release Bearing 57*110*37mm GCr15SiMn



Bearing Specification :

Model Number

CT5747F3

Part Name

Clutch Release Bearing

Application For Motorcycle Starter Disc

Brand

FSKG / KBE / FAG / NTN / NSK / KOYO / OEM

Precision Rating

ABEC-3 / ABEC-5 / ABEC-7

Material Gcr15 Chrome Steel

Dimensions(mm)(d*D*b)

57*110*37mm

Weight / Mass ( KG )

1.5KG

HS Code

8482800000

Original Country Show China

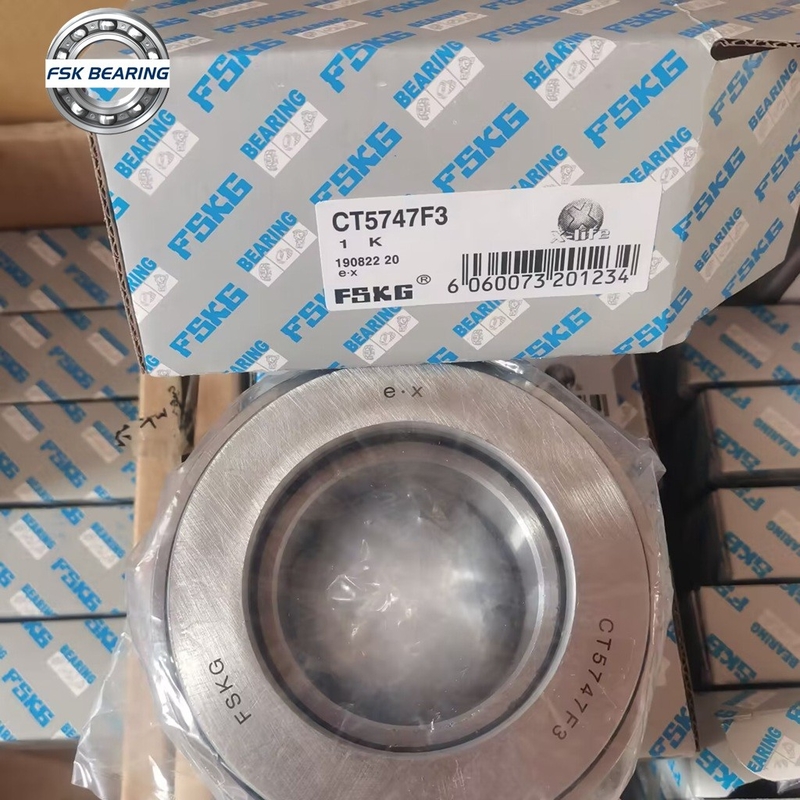

Bearings Detailed Pictures :

Auto Bus Bearing CT5747F3 Clutch Release Bearing 57*110*37mm GCr15SiMn 0
Other Clutch Release Bearings We Offer :



Bearing Inner ring Inner Ring Height Outer Ring Height Outer Diameter Of Outer Ring Chamfer Outer Diameter Of Inner Shaft Oil supply position Oil Supply Hole Oil Quantity Quality Maximum Torque Overspeed Idling Torque
Inside Diameter Keyway Chamfer A C B K F E cc kg N.M Inner Ring Outer Circle N.M
MG300 19 5x2 0.8 63 60 77 1.3 28.5 10.4 M6x1.0 25 1.8 314 2800 900 0.023
MG400 22 5x2 1 70 67 88 1.6 31.7 10.7 M6x1.0 30 2.7 539 2600 800 0.029
MG500 31.5 7x3 1.3 89 86 108 1.6 44.4 12.3 M6x1.0 50 5 1620 2400 800 0.052
MG600 50 12x3.5 1.6 95 92 136 1.6 69.8 12.8 M6x1.0 80 8.6 3140 2100 700 0.086
MG700 70 18x6 1.8 127 124 180 1.6 101.5 19.8 M6x1.0 135 19.5 5880 1500 500 0.173
MG750 85 24x6 0.6 153 150 200 1.5 110 75 M8x1.25 400 37 9500 7800 600 0.35
MG800 110 28x7 1 158 155 250 1.5 140 77.5 M8x1.25 500 46.5 17600 1300 475 0.55
MG900 135 35x9 1.3 165 160 300 1.5 170 80 M8x1.25 620 70.5 24500 1200 400 0.69
MG1000 160 38x10 1.3 188 180 370 1.5 200 90 M8x1.25 850 108.5 33800 1200 325 0.83
MG1100 185 45x14 3 260 250 470 3 260 125 M12x1.75 2900 250 78400 350 - 1.53
MG1200 200 45x14 3 260 250 500 3 280 125 M12x1.75 3000 280 95100 300 - 1.8
MG1300 250 56x17.5 3 280 260 600 3 340 130 M12x1.75 3800 410 176000 250 - 1.91



Bearing Number d D H m
SMZ20 20 mm 80 mm 67 mm 2 KG
SMZ30 30 mm 100 mm 82 mm 3.7 KG
SMZ35 35 mm 110 mm 87 mm 4.8 KG
SMZ45 45 mm 125 mm 92 mm 6.2 KG
SMZ60 60 mm 155 mm 102 mm 10.2 KG
SMZ70 70 mm 175 mm 105 mm 13.2 KG

Our Bearing Production Range:
1. Tapered Roller Bearing
2. Deep Groove Ball Bearing
3. Truck Wheel Bearing
4. Automobile Wheel Bearing
5. Cement Mixer Bearing
6. Clutch Release Bearing
7. Self Aligning Ball Bearing
8. Cylindrical Roller Bearing
9. Needle Bearing
10. Angular Contact Bearing
11. Thrust Ball Bearing
12. Thrust Roller Bearing
13. Pillow Block Bearing
14. Spherical Roller Bearing
FSK Company Information
Auto Bus Bearing CT5747F3 Clutch Release Bearing 57*110*37mm GCr15SiMn 1

Auto Bus Bearing CT5747F3 Clutch Release Bearing 57*110*37mm GCr15SiMn 2
FAQ

Auto Bus Bearing CT5747F3 Clutch Release Bearing 57*110*37mm GCr15SiMn 3
Q:Are you a trader or manufacturer?
A:We are factory specializing in all kind of bearings. We can give you the best price and better service.
Q:What is your delivery time?
A:Sample order: Immediate delivery , bulk order: usually 30 days.
Q:Can i request sample?
A:Of course , sample is ok and we can give you a sample by free.
Q:What's the shipping way?
A:According to YOUR demands.
Q:Can you accept OEM or ODM?
A:Yes, of course. logo is also acceptable.
Q:How is quality controlled?
A:Quality is the key !
Our QC team and engineer team works through all the process from an order placed to shipped.
Q: Can I come for a visit?
You are welcome to visit our factories , office and showroom ! Please contact our reception and we will help you to make a schedule.
