Product Details
Place of Origin: CHINA
Brand Name: TIMKEN / NSK / NTN / FSKG / KBE / OEM
Certification: ISO9001-2000 / SGS / BV / CE / IAF
Model Number: SNLN 3056
Payment & Shipping Terms
Minimum Order Quantity: 1 pcs-5pcs
Price: 0.1-200USD
Packaging Details: 1)COLOURED SINGLE BOX PACKING + CARTON BOX PACKING + PALLETS , 2) PLASTIC TUBE PACKING / KRAFT PACKING
Delivery Time: 3-7Days After Deposit
Payment Terms: 30% Deposit , Balance After BL Copy
Supply Ability: 100000pcs/month
Model No.: |
SNLN 3056 |
SNLN 3056 Bearing Size: |
280*860*496 Mm |
SNLN 3056 Bearing Kg: |
184 Kg |
Quality: |
ABEC-5 |
Material: |
Cast Iron / Cast Steel |
Origin: |
Wuxi China |
Model No.: |
SNLN 3056 |
SNLN 3056 Bearing Size: |
280*860*496 Mm |
SNLN 3056 Bearing Kg: |
184 Kg |
Quality: |
ABEC-5 |
Material: |
Cast Iron / Cast Steel |
Origin: |
Wuxi China |

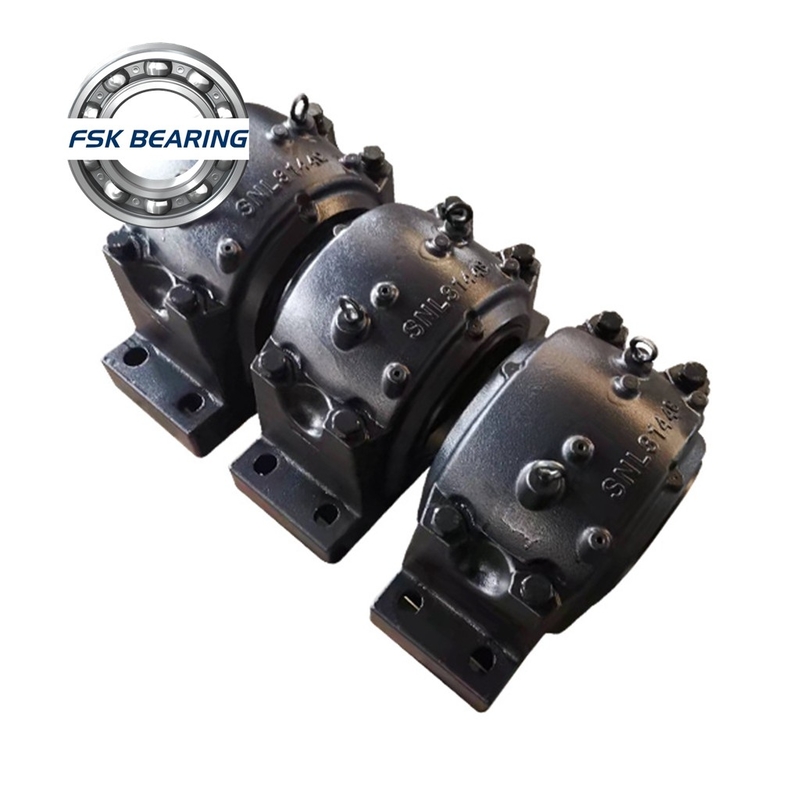

Cast Iron SNLN 3056 Plummer Block Housing Unit For Mining Machine
Bearing Specification :
| FSK BEARING Model Number | SNLN 3056 |
| Part Name | Pillow Block Bearing |
| Appropriate Parts Bearing: | 23056 CC/W33 C 3056 |
| Material | Cast Iron/Cast Steel |
| Brand | TIMKEN / NSK / NTN / FSKG / KBE / OEM |
| Precision Rating | ABEC-3 / ABEC-5 |
| Dimensions(mm)(d*D*b) | 280*860*496 mm |
| Weight / Mass ( KG ) | 184 kg |
| HS Code | 8482800000 |
Bearings Detailed Pictures
Same Series Bearings We Do:
| Housing Designation |
Appropriate parts Bearing |
Locating ring |
Seals | End cover | Width incl. seals A2 |
Shaft diameter da(mm) |
H | L | Mass Housing KG |
| SNLN 3024 | 23024 CC/W33 23024-2CS5 24024 CC/W33 24024-2CS5 C 3024 C 4024 V C 4024-2CS5V |
FRB 12/180 FRB 12/180 FRB 5/180 FRB 5/180 FRB 12/180 FRB 5/180 FRB 5/180 |
TSN 224 L TSN 224 A TSN 224 S TSN 224 ND |
ASNH 524-620 | 160 160 180 250 |
120 | 112 | 32 | 17.5 |
| SNLN 3026 | 23026 CC/W33 23026-2CS5 24026 CC/W33 24026-2CS5 C 3026 C 4026 C 4026-2CS5V |
FRB 13,5/200 FRB 13,5/200 FRB 5/200 FRB 5/200 FRB 13,5/200 FRB 5/200 FRB 5/200 |
TSN 226 L TSN 226 A TSN 226 S TSN 226 ND |
ASNH 526 | 175 175 197 260 |
130 | 242 | 410 | 22.5 |
| SNLN 3028 | 23028 CC/W33 23028-2CS5 24028 CC/W33 24028-2CS5 C 3028 C 4028 V C 4028-2CS5V |
FRB 13/210 FRB 13/210 FRB 5/210 FRB 5/210 FRB 13/210 FRB 5/210 FRB 5/210 |
TSN 228 L TSN 228 A TSN 228 S TSN 228 ND |
ASNH 528 | 175 175 194 260 |
140 | 270 | 410 | 30 |
| SNLN 3030 | 23030 CC/W33 23030-2CS5 24030 CC/W33 24030-2CS5 C 3030 V C 4030 V C 4030-2CS5V |
FRB 15/225 FRB 15/225 FRB 5,5/225 FRB 5,5/225 FRB 15/225 FRB 5,5/225 FRB 5,5/225 |
TSN 230 L TSN 230 A TSN 230 S TSN 230 ND |
ASNH 530 | 190 190 213 280 |
150 | 290 | 445 | 40 |
| SNLN 3032 | 23032 CC/W33 23032-2CS5 24032 CC/W33 24032-2CS5 C 3032 C 4032 C 4032-2CS5V |
FRB 15/240 FRB 15/240 FRB 5/240 FRB 5/240 FRB 15/240 FRB 5/240 FRB 5/240 |
TSN 232 A TSN 232 S TSN 232 ND |
ASNH 5 32 | 190 213 280 |
160 | 297 | 460 | 41 |
| SNLN 3034 | 23034 CC/W33 23034-2CS5 C 3034 |
FRB 10/260 FRB 10/260 FRB 10/260 |
TSN 3034/185 S TNF 3034/185 |
ETS 3034 | 231 278 |
170 | 322 | 530 | 50.5 |
| SNLN 3036 | 23036 CC/W33 23036-2CS5 C 3036 |
FRB 10/280 FRB 10/280 FRB 10/280 |
TSN 3036/195 S TNF 3036/195 |
ETS 3036 | 246 292 |
180 | 342 | 550 | 58.5 |
| SNLN 3038 | 23038 CC/W33 C 3038 |
FRB 10/290 FRB 10/290 |
TSN 3038/205 S TNF 3038/205 |
ETS 3038 | 255 302 |
190 | 347 | 550 | 58.5 |
| SNLN 3040 | 23040 CC/W33 23040-2CS5 C 3040 |
FRB 10/310 FRB 10/310 FRB 10/310 |
TSN 3040/215 S TNF 3040/215 |
ETS 3040 | 263 301 |
200 | 368 | 610 | 76 |
| SNLN 3044 | 23044 CC/W33 23044-2CS5 C 3044 |
FRB 10/340 FRB 10/340 FRB 10/340 |
TSN 3044/235 S TNF 3044/235 |
ETS 3044 | 283 321 |
220 | 403 | 690 | 103 |
| SNLN 3048 | 23048 CC/W33 23048-2CS5 C 3048 |
FRB 10/360 FRB 10/360 FRB 10/360 |
TSN 3048/255 S TNF 3048/255 |
ETS 3048 | 293 355 |
240 | 423 | 720 | 117 |
| SNLN 3052 | 23052 CC/W33 23052-2CS5 C 3052 |
FRB 10/400 FRB 10/400 FRB 10/400 |
TSN 3052/275 S TNF 3052/275 |
ETS 3052 | 312 374 |
260 | 475 | 820 | 162 |
| SNLN 3056 | 23056 CC/W33 C 3056 |
FRB 10/420 FRB 10/420 |
TSN 3056/295 S TNF 3056/295 |
ETS 3056 | 322 384 |
280 | 496 | 860 | 184 |
The other series pillow block bearings we do:
Our other Hot Sale Bearings
| INA TIMKEN NSK KOYO NACHI NTN ASAHI FYH | Tapered Roller Bearing | 30200.30300.32200.32300.32000.33000 |
| Inched | ||
| Deep Groove Ball Bearing | 6000.6200.6300.6400.6800 | |
| Miniature Ball Bearing | ||
| Truck Wheel Bearing | 800792 A VKBA 5412 566425.H195 BTH 0022 | |
| Automobile Wheel Bearing | VKBA1343 DAC34620037 BA2B633313CA etc | |
| Air Conditioner Bearing | 30BD219 30BD40 30BD5222 | |
| Clutch Release Bearing | 68TKA3506AR TK701A1 78TK14001AR 54TKA3501 | |
| Spherical Roller Bearing | 22200 22300 23000 CC CA E | |
| Cylindrical Roller Bearing | good at LINK BELT cylindrical roller bearings | |
| Pillow Block Bearing with Housing | UCP UCF UCT UCFL UCFC etc | |
| Needle Roller Bearing | Full types of needle roller bearings | |
| Printing Machine Bearings | F series with needle roller and cylindrical roller structure |
