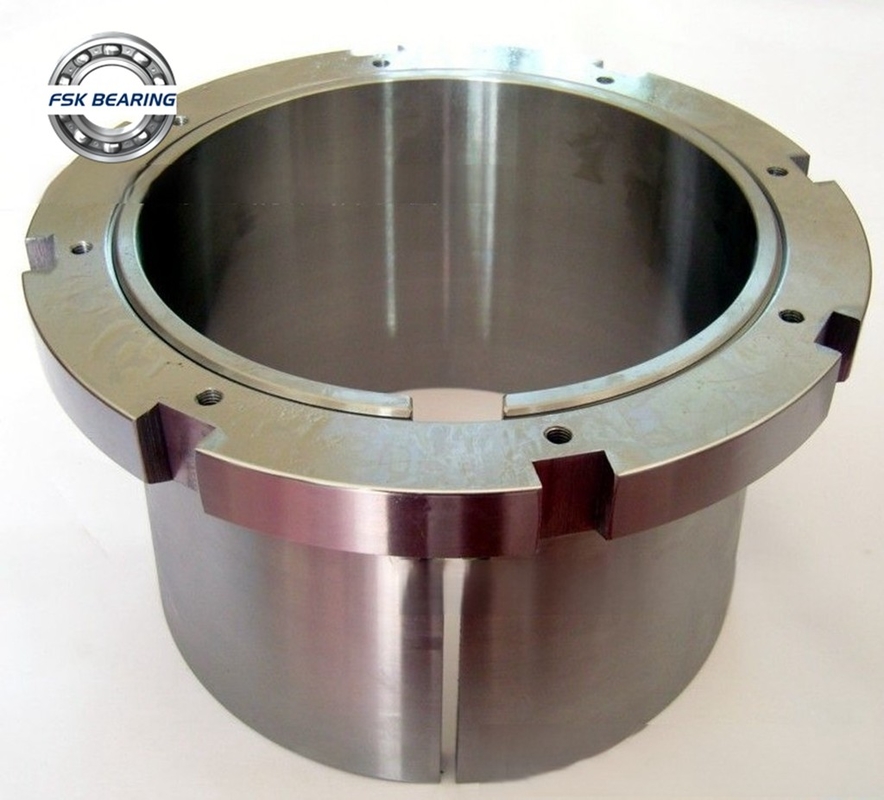

High Quality AH24028 Hydraulic Withdrawal Sleeve 135*140*83 mm

High Quality AH24028 Hydraulic Withdrawal Sleeve 135*140*83 mm

 Bearing Specification :

Bearings Detailed Pictures

Other Same Series Bearings We Do:

Bearing	d	D	H	m
AH24020	95 mm	100 mm	62 mm	0.5 KG
AH24022	105 mm	110 mm	73 mm	0.65 KG
AH24024	115 mm	120 mm	73 mm	0.71 KG
AH24026	125 mm	130 mm	83 mm	0.89 KG
AH24028	135 mm	140 mm	83 mm	0.96 KG
AH24030	145 mm	150 mm	90 mm	1.12 KG
AH24032	150 mm	160 mm	95 mm	2.31 KG
AH24032-H	150 mm	160 mm	95 mm	2.27 KG
AH24034	160 mm	170 mm	106 mm	2.76 KG
AH24036	170 mm	180 mm	116 mm	3.21 KG
AH24038	180 mm	190 mm	118 mm	3.48 KG
AH24040	190 mm	200 mm	127 mm	3.96 KG
AH24040-H	190 mm	200 mm	127 mm	3.93 KG
AH24044	200 mm	220 mm	138 mm	8.22 KG
AH24044-H	200 mm	220 mm	138 mm	8.22 KG
AH24048	220 mm	240 mm	138 mm	9.03 KG
AH24048-H	220 mm	240 mm	138 mm	9.03 KG
AH24052	240 mm	260 mm	162 mm	11.6 KG
AH24052G	240 mm	260 mm	162 mm	12.3 KG
AH24052G-H	240 mm	260 mm	162 mm	12.3 KG
AH24052-H	240 mm	260 mm	162 mm	11.6 KG
AH24056	260 mm	280 mm	162 mm	12.6 KG
AH24056G	260 mm	280 mm	162 mm	13.4 KG
AH24056G-H	260 mm	280 mm	162 mm	13.4 KG
AH24056-H	260 mm	280 mm	162 mm	12.6 KG
AH24060	280 mm	300 mm	184 mm	15.5 KG
AH24060G	280 mm	300 mm	184 mm	16.4 KG
AH24060G-H	280 mm	300 mm	184 mm	16.4 KG
AH24060-H	280 mm	300 mm	184 mm	15.5 KG
AH24064G-H	300 mm	320 mm	184 mm	17.5 KG
AH24064-H	300 mm	320 mm	184 mm	16.6 KG
AH24064G	300 mm	320 mm	184 mm	17.5 KG
AH24068-H	320 mm	340 mm	206 mm	21.1 KG
AH24072-H	340 mm	360 mm	206 mm	22.3 KG
AH24076-H	360 mm	380 mm	208 mm	24 KG
AH24080-H	380 mm	400 mm	228 mm	27.8 KG
AH24084-H	400 mm	420 mm	230 mm	29.6 KG
AH24084	400 mm	420 mm	230 mm	29 KG
AH24088-H	420 mm	440 mm	242 mm	32.8 KG
AH24092-H	440 mm	460 mm	250 mm	35.6 KG
AH24096-H	460 mm	480 mm	250 mm	37.2 KG
AH240/500G-H	480 mm	500 mm	253 mm	41.7 KG
AH240/500-H	480 mm	500 mm	253 mm	39.5 KG
AH240/500G	480 mm	500 mm	253 mm	41.8 KG
AH240/530G-H	500 mm	530 mm	285 mm	67.5 KG
AH240/530-H	500 mm	530 mm	290 mm	66.8 KG
AH240/530G	500 mm	530 mm	285 mm	67.9 KG
AH240/560G-H	530 mm	560 mm	296 mm	77.5 KG
AH240/560-H	530 mm	560 mm	298 mm	72.7 KG
AH240/560G	530 mm	560 mm	296 mm	77.8 KG
AH240/600G-H	570 mm	600 mm	310 mm	84.1 KG
AH240/600-H	570 mm	600 mm	317 mm	85.4 KG
AH240/600G	570 mm	600 mm	310 mm	84.8 KG
AH240/630G-H	600 mm	630 mm	330 mm	97.9 KG
AH240/630-H	600 mm	630 mm	335 mm	95.1 KG
AH240/630G	600 mm	630 mm	330 mm	98.7 KG
AH240/670G-H	630 mm	670 mm	348 mm	137 KG
AH240/670-H	630 mm	670 mm	358 mm	137 KG
AH240/670G	630 mm	670 mm	348 mm	138 KG
AH240/710G-H	670 mm	710 mm	360 mm	152 KG
AH240/710-H	670 mm	710 mm	365 mm	151 KG
AH240/710G	670 mm	710 mm	360 mm	153 KG
AH240/750G-H	710 mm	750 mm	380 mm	174 KG
AH240/750-H	710 mm	750 mm	385 mm	169 KG
AH240/750G	710 mm	750 mm	380 mm	175 KG
AH240/800G-H	750 mm	800 mm	395 mm	232 KG
AH240/800-H	750 mm	800 mm	395 mm	221 KG
AH240/800G	750 mm	800 mm	395 mm	233 KG
AH240/850G-H	800 mm	850 mm	415 mm	259 KG
AH240/850-H	800 mm	850 mm	418 mm	250 KG
AH240/850G	800 mm	850 mm	415 mm	261 KG
AH240/900G-H	850 mm	900 mm	430 mm	287 KG
AH240/900-H	850 mm	900 mm	430 mm	274 KG
AH240/900G	850 mm	900 mm	430 mm	291 KG
AH240/950G-H	900 mm	950 mm	467 mm	329 KG
AH240/950-H	900 mm	950 mm	467 mm	316 KG
AH240/950G	900 mm	950 mm	467 mm	335 KG
AH240/1000G-H	950 mm	1000 mm	469 mm	357 KG
AH240/1000-H	950 mm	1000 mm	469 mm	339 KG
AH240/1000G	950 mm	1000 mm	469 mm	363 KG
AH240/1060G-H	1000 mm	1060 mm	498 mm	465 KG
AH240/1060-H	1000 mm	1060 mm	498 mm	445 KG
AH240/1060G	1000 mm	1060 mm	498 mm	473 KG
AH240/1120G-H	1060 mm	1120 mm	527 mm	524 KG
AH240/1120-H	1060 mm	1120 mm	527 mm	501 KG
AH240/1120G	1060 mm	1120 mm	527 mm	533 KG
AH240/1180G-H	1120 mm	1180 mm	540 mm	577 KG
AH240/1180-H	1120 mm	1180 mm	540 mm	543 KG
AH240/1180G	1120 mm	1180 mm	540 mm	586 KG
AH240/1250G-H	1180 mm	1250 mm	570 mm	733 KG
AH240/1250-H	1180 mm	1250 mm	570 mm	694 KG
AH240/1250G	1180 mm	1250 mm	570 mm	743 KG
AH240/1320G-H	1250 mm	1320 mm	600 mm	828 KG
AH240/1320-H	1250 mm	1320 mm	600 mm	775 KG
AH240/1320G	1250 mm	1320 mm	600 mm	840 KG
AH240/1400G-H	1320 mm	1400 mm	615 mm	1026 KG
AH240/1400-H	1320 mm	1400 mm	615 mm	944 KG
AH240/1400G	1320 mm	1400 mm	615 mm	1040 KG

Our other Hot Sale Bearings

Our Company Photo:

About Us:

1.Direct China factory/Manufactur with strong Capability
We are direct bearing factory on Jiangsu, China for more than 10 years.300 bearing types,15 million sets items ar produced yearly and the output value more than 15 million US dollars last year.
We could complete all ordere items excellently with over one hundred of advanced equipments running in 6 plants in China.
2.Large ready stock&Fast Delivery Time
Rich in stock throughout the year for general bearing types,sush as Deep groove ball bearing,Tapered Roller Bearing,Thrust Ball Bearing,etc.
Based on above advantages,we delivery goods timely&fastly as your requests.Warehouse items would deliveried within 1-2 days.
By courier/air or by cargo/sea
3.Competitive price
Large stock and strong Capability enables us to offer more reasonable price all over the world. Customers could receive good quality bearings with attrative price at the same time from us.
4.Non-standard Customized Service
We could customize many non-standard bearings and workpiece as your drawing requests and offer in-house test report by professional engineers.All customized goods are made to order as requests.
5.Perfect Quality Control System
We have perfect quality control systems and testing equipments and experienced engineers for more than 10 years.We test bearings one by one assuring all bearings with high proformance.
6.Best After-sale service
Experienced different after-sale workers are online for more than 12hours a day, 7 days a week offering you different bearing solutions for you.
We are glad to receive any comments from all the world by email,by call/message or by Skype/wechat/whatsapp/Viber/QQ..etc.
7. Multi-language communications

FAQ

	Q:Are you a trader or manufacturer?
	A:We are factory specializing in all kind of bearings. We can give you the best price and better service.
	Q:What is your delivery time?
	A:Sample order: Immediate delivery , bulk order: usually 30 days.
	Q:Can i request sample?
	A:Of course , sample is ok and we can give you a sample by free.
	Q:What's the shipping way?
	A:According to YOUR demands.
	Q:Can you accept OEM or ODM?
	A:Yes, of course. logo is also acceptable.
	Q:How is quality controlled?
	A:Quality is the key !
	Our QC team and engineer team works through all the process from an order placed to shipped.
	Q: Can I come for a visit?
	You are welcome to visit our factories , office and showroom ! Please contact our reception and we will help you to make a schedule.

High Quality AH24028 Hydraulic Withdrawal Sleeve 135*140*83 mm, Get Cheap Price From China Bearing Factory Now !
