Product Details
Place of Origin: CHINA
Brand Name: FSKG / KBE / FAG / NTN / NSK / KOYO / OEM
Certification: ISO9001-2000 / CE / ROHS / UL
Model Number: 1WC100914
Payment & Shipping Terms
Minimum Order Quantity: 1pcs
Packaging Details: 1)COLOURED SINGLE BOX PACKING + CARTON BOX PACKING + PALLETS , 2) INDUSTRIAL PACKING
Bearing No.: |
1WC100914 |
Size: |
10x14x9 Mm |
Weight: |
0.003 Kg |
Material: |
Gcr15 Chrome Steel |
Application: |
Clutch Release Bearing |
Origin: |
Wuxi Jiangsu |
Bearing No.: |
1WC100914 |
Size: |
10x14x9 Mm |
Weight: |
0.003 Kg |
Material: |
Gcr15 Chrome Steel |
Application: |
Clutch Release Bearing |
Origin: |
Wuxi Jiangsu |
Premium Quality 1WC100914 DF501018 One Way Neddle Clutch Fishing Rod Bearings
Premium Quality 1WC100914 DF501018 One Way Roller Needle Clutch Bearing
Bearing Specification :
Model Number |
1WC100914 |
Part Name |
Needle Roller Bearing |
Application | Fishing Rod Bearing |
Brand |
FSKG / KBE / FAG / NTN / NSK / KOYO / OEM |
Precision Rating |
ABEC-3 / ABEC-5 / ABEC-7 |
Material | Gcr15 Chrome Steel |
Dimensions(mm)(d*D*b) |
10x14x9 mm |
Weight / Mass ( KG ) |
0.003 kg |
HS Code |
8482800000 |
Original Country Show | China |

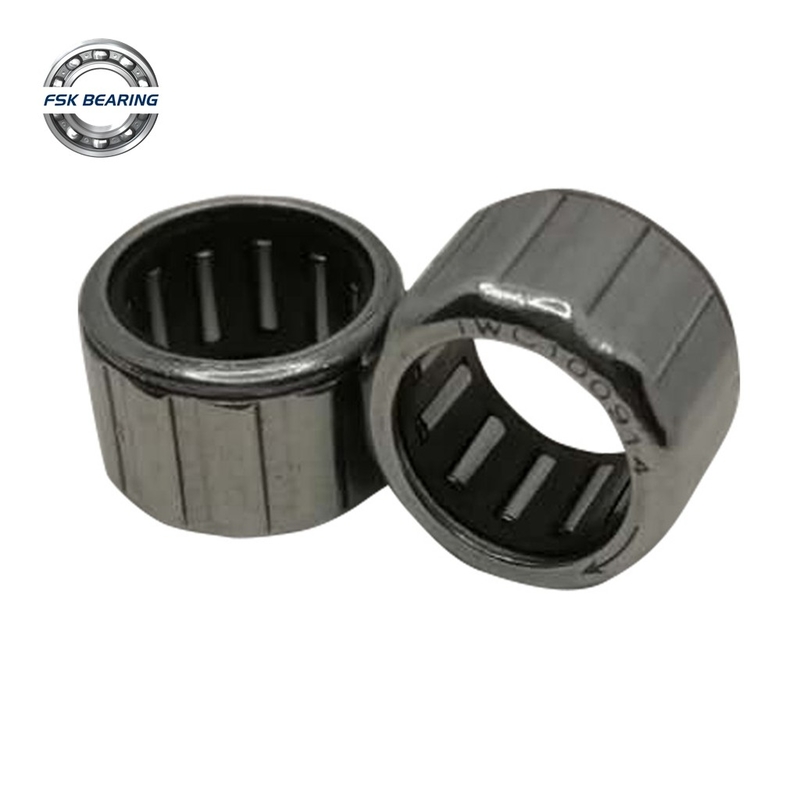

Bearings Detailed Pictures :
Same Series Bearings We Do:
Shaft Dia. | Model | Weight | DIMENSION | Torque Capacity | |||
MM | g | Inner Dia. FW | Outer Dia. | Height | (N.m) | (kgf.cm) | |
D1-D2 | B | ||||||
4 | EWC0406 | 1.2 | 4 | 8-8.4 | 6 | 0.08 | 0.8 |
1WC0406 | 1.5 | 4 | 8-8.4 | 6 | 0.15 | 1.5 | |
6 | EWC0606 | 2 | 6 | 8-8.4 | 6 | 0.19 | 1.9 |
1WC0606 | 2.2 | 6 | 8-8.4 | 6 | 0.33 | 3.5 | |
EWC0608 | 2.2 | 6 | 10-10.4 | 8 | 0.25 | 2.5 | |
1WC0608 | 2.5 | 6 | 10-10.4 | 8 | 0.45 | 4.5 | |
1WC0612 | 3 | 6 | 10-10.4 | 12 | 0.9 | 9.5 | |
8 | EWC088.5 | 2.5 | 8 | 12-12.4 | 8.5 | 0.5 | 5.5 |
EWC0809 | 2.5 | 8 | 12-12.4 | 9 | 0.88 | 9 | |
EWC0812 | 5.5 | 8 | 14.2-15 | 12 | 1.18 | 12 | |
1WC0812 | 6 | 8 | 14.2-15 | 12 | 1.96 | 20 | |
1WC0815 | 8 | 8 | 14.2-15 | 15 | 2.65 | 27 | |
10 | EWC1007 | 7 | 10 | 16-17 | 7 | 1.2 | 10 |
EWC1008 | 8 | 10 | 16-17 | 8 | 1.85 | 19 | |
1WC1009 | 8.5 | 10 | 14-14.4 | 9 | 2.25 | 23 | |
EWC1010 | 8 | 10 | 16-17 | 10 | 1.18 | 12 | |
1WC1010 | 9 | 10 | 16-17 | 10 | 1.98 | 20 | |
EWC1012 | 10 | 10 | 16-17 | 12 | 1.37 | 14 | |
1WC1012 | 11 | 10 | 16-17 | 12 | 2.35 | 24 | |
12 | EWC1209 | 10 | 12 | 18-19 | 9 | 3.04 | 31 |
EWC1216 | 12 | 12 | 18-19 | 16 | 6.29 | 64 | |
1WC1216 | 13 | 12 | 18-19 | 16 | 7.3 | 75 |
Other Clutch Release Bearings We Offer :
Bearing | Inner ring | Inner Ring Height | Outer Ring Height | Outer Diameter Of Outer Ring | Chamfer | Outer Diameter Of Inner Shaft | Oil supply position | Oil Supply Hole | Oil Quantity | Quality | Maximum Torque | Overspeed | Idling Torque | |||
Inside Diameter | Keyway | Chamfer | A | C | B | K | F | E | cc | kg | N.M | Inner Ring | Outer Circle | N.M | ||
MG300 | 19 | 5x2 | 0.8 | 63 | 60 | 77 | 1.3 | 28.5 | 10.4 | M6x1.0 | 25 | 1.8 | 314 | 2800 | 900 | 0.023 |
MG400 | 22 | 5x2 | 1 | 70 | 67 | 88 | 1.6 | 31.7 | 10.7 | M6x1.0 | 30 | 2.7 | 539 | 2600 | 800 | 0.029 |
MG500 | 31.5 | 7x3 | 1.3 | 89 | 86 | 108 | 1.6 | 44.4 | 12.3 | M6x1.0 | 50 | 5 | 1620 | 2400 | 800 | 0.052 |
MG600 | 50 | 12x3.5 | 1.6 | 95 | 92 | 136 | 1.6 | 69.8 | 12.8 | M6x1.0 | 80 | 8.6 | 3140 | 2100 | 700 | 0.086 |
MG700 | 70 | 18x6 | 1.8 | 127 | 124 | 180 | 1.6 | 101.5 | 19.8 | M6x1.0 | 135 | 19.5 | 5880 | 1500 | 500 | 0.173 |
MG750 | 85 | 24x6 | 0.6 | 153 | 150 | 200 | 1.5 | 110 | 75 | M8x1.25 | 400 | 37 | 9500 | 7800 | 600 | 0.35 |
MG800 | 110 | 28x7 | 1 | 158 | 155 | 250 | 1.5 | 140 | 77.5 | M8x1.25 | 500 | 46.5 | 17600 | 1300 | 475 | 0.55 |
MG900 | 135 | 35x9 | 1.3 | 165 | 160 | 300 | 1.5 | 170 | 80 | M8x1.25 | 620 | 70.5 | 24500 | 1200 | 400 | 0.69 |
MG1000 | 160 | 38x10 | 1.3 | 188 | 180 | 370 | 1.5 | 200 | 90 | M8x1.25 | 850 | 108.5 | 33800 | 1200 | 325 | 0.83 |
MG1100 | 185 | 45x14 | 3 | 260 | 250 | 470 | 3 | 260 | 125 | M12x1.75 | 2900 | 250 | 78400 | 350 | - | 1.53 |
MG1200 | 200 | 45x14 | 3 | 260 | 250 | 500 | 3 | 280 | 125 | M12x1.75 | 3000 | 280 | 95100 | 300 | - | 1.8 |
MG1300 | 250 | 56x17.5 | 3 | 280 | 260 | 600 | 3 | 340 | 130 | M12x1.75 | 3800 | 410 | 176000 | 250 | - | 1.91 |
Bearing Number | d | D | H | m |
SMZ20 | 20 mm | 80 mm | 67 mm | 2 KG |
SMZ30 | 30 mm | 100 mm | 82 mm | 3.7 KG |
SMZ35 | 35 mm | 110 mm | 87 mm | 4.8 KG |
SMZ45 | 45 mm | 125 mm | 92 mm | 6.2 KG |
SMZ60 | 60 mm | 155 mm | 102 mm | 10.2 KG |
SMZ70 | 70 mm | 175 mm | 105 mm | 13.2 KG |
Our Bearing Production Range:
1. Tapered Roller Bearing
2. Deep Groove Ball Bearing
3. Truck Wheel Bearing
4. Automobile Wheel Bearing
5. Cement Mixer Bearing
6. Clutch Release Bearing
7. Self Aligning Ball Bearing
8. Cylindrical Roller Bearing
9. Needle Bearing
10. Angular Contact Bearing
11. Thrust Ball Bearing
12. Thrust Roller Bearing
13. Pillow Block Bearing
14. Spherical Roller Bearing
FSK Company Information
FAQ
Q:Are you a trader or manufacturer? | |
A:We are factory specializing in all kind of bearings. We can give you the best price and better service. | |
Q:What is your delivery time? | |
A:Sample order: Immediate delivery , bulk order: usually 30 days. | |
Q:Can i request sample? | |
A:Of course , sample is ok and we can give you a sample by free. | |
Q:What's the shipping way? | |
A:According to YOUR demands. | |
Q:Can you accept OEM or ODM? | |
A:Yes, of course. logo is also acceptable. | |
Q:How is quality controlled? | |
A:Quality is the key ! | |
Our QC team and engineer team works through all the process from an order placed to shipped. | |
Q: Can I come for a visit? | |
You are welcome to visit our factories , office and showroom ! Please contact our reception and we will help you to make a schedule. |
Premium Quality 1WC100914 DF501018 One Way Roller Needle Clutch Bearing, Get Cheap Price From China Bearings Factory Now !
