Product Details
Place of Origin: CHINA
Brand Name: FSKG / KBE / FAG / NTN / NSK / KOYO / OEM
Certification: ISO9001-2000 / CE / ROHS / UL
Model Number: NF45
Payment & Shipping Terms
Minimum Order Quantity: 1pcs
Packaging Details: 1)COLOURED SINGLE BOX PACKING + CARTON BOX PACKING + PALLETS , 2) INDUSTRIAL PACKING
Bearing No.: |
NF45 |
Size: |
45*120*63 Mm |
Weight: |
3.7 Kg |
Material: |
Gcr15 Chrome Steel |
Application: |
Clutch Release Bearing |
Origin: |
Wuxi Jiangsu |
Bearing No.: |
NF45 |
Size: |
45*120*63 Mm |
Weight: |
3.7 Kg |
Material: |
Gcr15 Chrome Steel |
Application: |
Clutch Release Bearing |
Origin: |
Wuxi Jiangsu |
Low Friction NF45 NUZ45 Freewheel One Way Overrunning Clutch Bearing ID 45mm
Bearing Specification :
|
Model Number |
NF45 |
|
Part Name |
Backstop Clutch Bearing |
|
Brand |
FSKG / KBE / FAG / NTN / NSK / KOYO / OEM |
|
Precision Rating |
ABEC-3 / ABEC-5 / ABEC-7 |
| Material | Gcr15 Chrome Steel |
|
Dimensions(mm)(d*D*b) |
45*120*63 mm |
|
Weight / Mass ( KG ) |
3.7 kg |
|
HS Code |
8482800000 |
| Original Country Show | China |

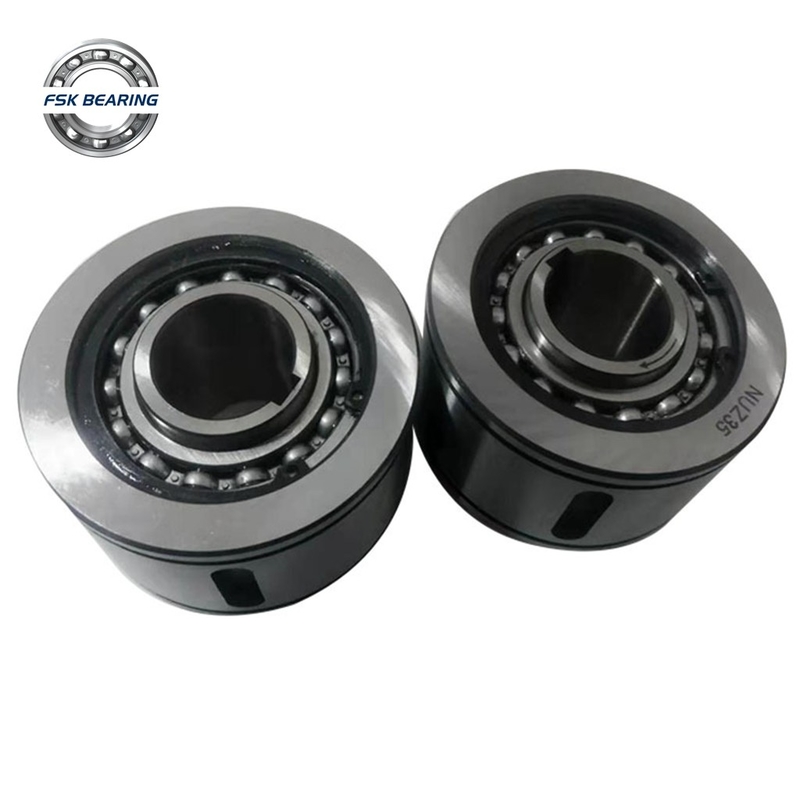

Bearings Detailed Pictures :
Same Series Bearings We Do:
|
Bearing
|
d | D | H | m |
| NF8 | 8 mm | 37 mm | 20 mm | 0.1 KG |
| NF12 | 12 mm | 37 mm | 20 mm | 0.1 KG |
| NF15 | 15 mm | 47 mm | 30 mm | 0.3 KG |
| NF20 | 20 mm | 62 mm | 36 mm | 0.6 KG |
| NF25 | 25 mm | 80 mm | 40 mm | 1.1 KG |
| NF30 | 30 mm | 90 mm | 48 mm | 1.6 KG |
| NF35 | 35 mm | 100 mm | 53 mm | 2.3 KG |
| NF40 | 40 mm | 110 mm | 63 mm | 3.1 KG |
| NF45 | 45 mm | 120 mm | 63 mm | 3.7 KG |
| NF50 | 50 mm | 130 mm | 80 mm | 5.4 KG |
| NF55 | 55 mm | 140 mm | 80 mm | 6.1 KG |
| NF60 | 60 mm | 150 mm | 95 mm | 8.5 KG |
| NF70 | 70 mm | 170 mm | 110 mm | 13 KG |
| NF80 | 80 mm | 190 mm | 125 mm | 18 KG |
| NF90 | 90 mm | 215 mm | 140 mm | 25.3 KG |
| NF100 | 100 mm | 260 mm | 150 mm | 42.1 KG |
| NF130 | 130 mm | 300 mm | 180 mm | 65 KG |
| NF150 | 150 mm | 320 mm | 180 mm | 95 KG |
Other Clutch Release Bearings We Offer :
| Bearing | Inner ring | Inner Ring Height | Outer Ring Height | Outer Diameter Of Outer Ring | Chamfer | Outer Diameter Of Inner Shaft | Oil supply position | Oil Supply Hole | Oil Quantity | Quality | Maximum Torque | Overspeed | Idling Torque | |||
| Inside Diameter | Keyway | Chamfer | A | C | B | K | F | E | cc | kg | N.M | Inner Ring | Outer Circle | N.M | ||
| MG300 | 19 | 5x2 | 0.8 | 63 | 60 | 77 | 1.3 | 28.5 | 10.4 | M6x1.0 | 25 | 1.8 | 314 | 2800 | 900 | 0.023 |
| MG400 | 22 | 5x2 | 1 | 70 | 67 | 88 | 1.6 | 31.7 | 10.7 | M6x1.0 | 30 | 2.7 | 539 | 2600 | 800 | 0.029 |
| MG500 | 31.5 | 7x3 | 1.3 | 89 | 86 | 108 | 1.6 | 44.4 | 12.3 | M6x1.0 | 50 | 5 | 1620 | 2400 | 800 | 0.052 |
| MG600 | 50 | 12x3.5 | 1.6 | 95 | 92 | 136 | 1.6 | 69.8 | 12.8 | M6x1.0 | 80 | 8.6 | 3140 | 2100 | 700 | 0.086 |
| MG700 | 70 | 18x6 | 1.8 | 127 | 124 | 180 | 1.6 | 101.5 | 19.8 | M6x1.0 | 135 | 19.5 | 5880 | 1500 | 500 | 0.173 |
| MG750 | 85 | 24x6 | 0.6 | 153 | 150 | 200 | 1.5 | 110 | 75 | M8x1.25 | 400 | 37 | 9500 | 7800 | 600 | 0.35 |
| MG800 | 110 | 28x7 | 1 | 158 | 155 | 250 | 1.5 | 140 | 77.5 | M8x1.25 | 500 | 46.5 | 17600 | 1300 | 475 | 0.55 |
| MG900 | 135 | 35x9 | 1.3 | 165 | 160 | 300 | 1.5 | 170 | 80 | M8x1.25 | 620 | 70.5 | 24500 | 1200 | 400 | 0.69 |
| MG1000 | 160 | 38x10 | 1.3 | 188 | 180 | 370 | 1.5 | 200 | 90 | M8x1.25 | 850 | 108.5 | 33800 | 1200 | 325 | 0.83 |
| MG1100 | 185 | 45x14 | 3 | 260 | 250 | 470 | 3 | 260 | 125 | M12x1.75 | 2900 | 250 | 78400 | 350 | - | 1.53 |
| MG1200 | 200 | 45x14 | 3 | 260 | 250 | 500 | 3 | 280 | 125 | M12x1.75 | 3000 | 280 | 95100 | 300 | - | 1.8 |
| MG1300 | 250 | 56x17.5 | 3 | 280 | 260 | 600 | 3 | 340 | 130 | M12x1.75 | 3800 | 410 | 176000 | 250 | - | 1.91 |
| Bearing Number | d | D | H | m |
| SMZ20 | 20 mm | 80 mm | 67 mm | 2 KG |
| SMZ30 | 30 mm | 100 mm | 82 mm | 3.7 KG |
| SMZ35 | 35 mm | 110 mm | 87 mm | 4.8 KG |
| SMZ45 | 45 mm | 125 mm | 92 mm | 6.2 KG |
| SMZ60 | 60 mm | 155 mm | 102 mm | 10.2 KG |
| SMZ70 | 70 mm | 175 mm | 105 mm | 13.2 KG |
Our Bearing Production Range:
1. Tapered Roller Bearing
2. Deep Groove Ball Bearing
3. Truck Wheel Bearing
4. Automobile Wheel Bearing
5. Cement Mixer Bearing
6. Clutch Release Bearing
7. Self Aligning Ball Bearing
8. Cylindrical Roller Bearing
9. Needle Bearing
10. Angular Contact Bearing
11. Thrust Ball Bearing
12. Thrust Roller Bearing
13. Pillow Block Bearing
14. Spherical Roller Bearing
