Product Details
Place of Origin: CHINA
Brand Name: FSKG / KBE / FAG / NTN / NSK / KOYO / OEM
Certification: ISO9001-2000 / CE / ROHS / UL
Model Number: BS160
Payment & Shipping Terms
Minimum Order Quantity: 1pcs
Packaging Details: 1)COLOURED SINGLE BOX PACKING + CARTON BOX PACKING + PALLETS , 2) INDUSTRIAL PACKING
Bearing No.: |
BS160 |
Size: |
220*360*135 Mm |
Weight: |
85.6 KG |
Material: |
Gcr15 Chrome Steel |
Application: |
Automotive Bearing |
Origin: |
Wuxi Jiangsu |
Bearing No.: |
BS160 |
Size: |
220*360*135 Mm |
Weight: |
85.6 KG |
Material: |
Gcr15 Chrome Steel |
Application: |
Automotive Bearing |
Origin: |
Wuxi Jiangsu |

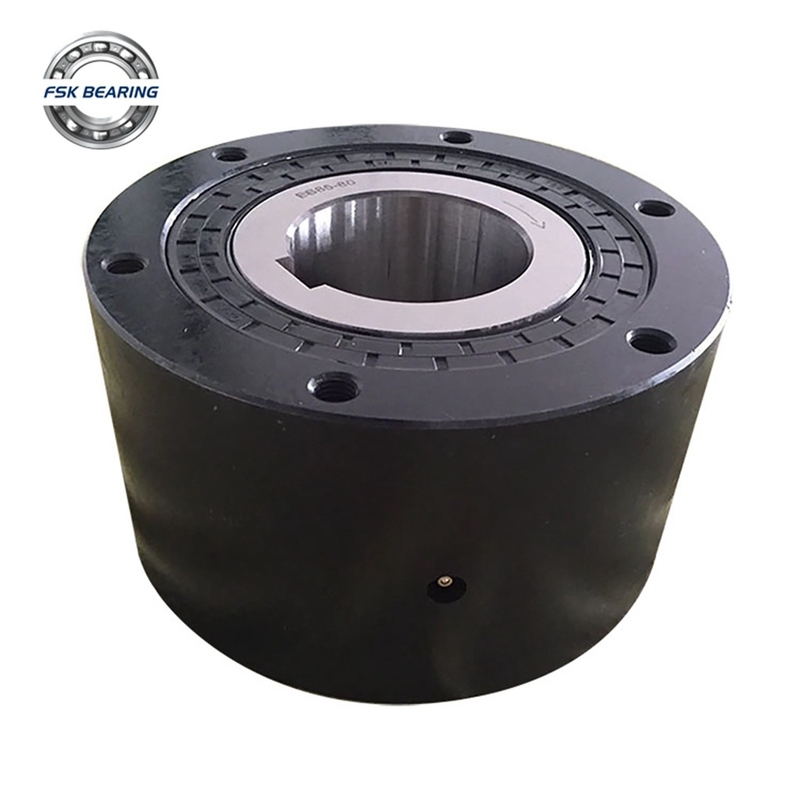

One Way BS160 Backstop Clutch Bearing 220*360*135 mm China Manufacturer
Bearing Specification :
|
Model Number |
BS160 |
|
Part Name |
Backstop Clutch Bearing |
| Application | For Belt Conveyor |
|
Brand |
FSKG / KBE / FAG / NTN / NSK / KOYO / OEM |
|
Precision Rating |
ABEC-3 / ABEC-5 / ABEC-7 |
| Material | Gcr15 Chrome Steel |
|
Dimensions(mm)(d*D*b) |
220*360*135 mm |
|
Weight / Mass ( KG ) |
85.6 KG |
|
HS Code |
8482800000 |
| Original Country Show | China |
Bearings Detailed Pictures :
Same Series Bearings We Do:
|
||||
| Bearing | d | D | H | m |
| BS30 | 45 mm | 90 mm | 64 mm | 2.1 KG |
| BS50 | 70 mm | 125 mm | 67 mm | 4 KG |
| BS65 | 90 mm | 160 mm | 90 mm | 11.5 KG |
| BS75 | 100 mm | 170 mm | 90 mm | 13.1 KG |
| BS85 | 115 mm | 210 mm | 115 mm | 24.7 KG |
| BS95 | 130 mm | 230 mm | 115 mm | 29.4 KG |
| BS110 | 150 mm | 270 mm | 115 mm | 34.2 KG |
| BS135 | 180 mm | 320 mm | 135 mm | 68 KG |
| BS160 | 220 mm | 360 mm | 135 mm | 85.6 KG |
| BS200 | 265 mm | 430 mm | 150 mm | 140 KG |
| BS220 | 290 mm | 500 mm | 235 mm | 264 KG |
| BS250 | 330 mm | 600 mm | 295 mm | 523 KG |
| BS270 | 370 mm | 650 mm | 295 mm | 562 KG |
| BS300 | 470 mm | 780 mm | 295 mm | 885 KG |
| BS335 | 495 mm | 850 mm | 305 mm | 1040 KG |
| BS350 | 535 mm | 930 mm | 320 mm | 1470 KG |
| BS425 | 635 mm | 1030 mm | 440 mm | 2240 KG |
| BS450 | 645 mm | 1090 mm | 450 mm | 2580 KG |
Other Clutch Release Bearings We Offer :
| Bearing | Inner ring | Inner Ring Height | Outer Ring Height | Outer Diameter Of Outer Ring | Chamfer | Outer Diameter Of Inner Shaft | Oil supply position | Oil Supply Hole | Oil Quantity | Quality | Maximum Torque | Overspeed | Idling Torque | |||
| Inside Diameter | Keyway | Chamfer | A | C | B | K | F | E | cc | kg | N.M | Inner Ring | Outer Circle | N.M | ||
| MG300 | 19 | 5x2 | 0.8 | 63 | 60 | 77 | 1.3 | 28.5 | 10.4 | M6x1.0 | 25 | 1.8 | 314 | 2800 | 900 | 0.023 |
| MG400 | 22 | 5x2 | 1 | 70 | 67 | 88 | 1.6 | 31.7 | 10.7 | M6x1.0 | 30 | 2.7 | 539 | 2600 | 800 | 0.029 |
| MG500 | 31.5 | 7x3 | 1.3 | 89 | 86 | 108 | 1.6 | 44.4 | 12.3 | M6x1.0 | 50 | 5 | 1620 | 2400 | 800 | 0.052 |
| MG600 | 50 | 12x3.5 | 1.6 | 95 | 92 | 136 | 1.6 | 69.8 | 12.8 | M6x1.0 | 80 | 8.6 | 3140 | 2100 | 700 | 0.086 |
| MG700 | 70 | 18x6 | 1.8 | 127 | 124 | 180 | 1.6 | 101.5 | 19.8 | M6x1.0 | 135 | 19.5 | 5880 | 1500 | 500 | 0.173 |
| MG750 | 85 | 24x6 | 0.6 | 153 | 150 | 200 | 1.5 | 110 | 75 | M8x1.25 | 400 | 37 | 9500 | 7800 | 600 | 0.35 |
| MG800 | 110 | 28x7 | 1 | 158 | 155 | 250 | 1.5 | 140 | 77.5 | M8x1.25 | 500 | 46.5 | 17600 | 1300 | 475 | 0.55 |
| MG900 | 135 | 35x9 | 1.3 | 165 | 160 | 300 | 1.5 | 170 | 80 | M8x1.25 | 620 | 70.5 | 24500 | 1200 | 400 | 0.69 |
| MG1000 | 160 | 38x10 | 1.3 | 188 | 180 | 370 | 1.5 | 200 | 90 | M8x1.25 | 850 | 108.5 | 33800 | 1200 | 325 | 0.83 |
| MG1100 | 185 | 45x14 | 3 | 260 | 250 | 470 | 3 | 260 | 125 | M12x1.75 | 2900 | 250 | 78400 | 350 | - | 1.53 |
| MG1200 | 200 | 45x14 | 3 | 260 | 250 | 500 | 3 | 280 | 125 | M12x1.75 | 3000 | 280 | 95100 | 300 | - | 1.8 |
| MG1300 | 250 | 56x17.5 | 3 | 280 | 260 | 600 | 3 | 340 | 130 | M12x1.75 | 3800 | 410 | 176000 | 250 | - | 1.91 |
| Bearing Number | d | D | H | m |
| SMZ20 | 20 mm | 80 mm | 67 mm | 2 KG |
| SMZ30 | 30 mm | 100 mm | 82 mm | 3.7 KG |
| SMZ35 | 35 mm | 110 mm | 87 mm | 4.8 KG |
| SMZ45 | 45 mm | 125 mm | 92 mm | 6.2 KG |
| SMZ60 | 60 mm | 155 mm | 102 mm | 10.2 KG |
| SMZ70 | 70 mm | 175 mm | 105 mm | 13.2 KG |
Our Bearing Production Range:
1. Tapered Roller Bearing
2. Deep Groove Ball Bearing
3. Truck Wheel Bearing
4. Automobile Wheel Bearing
5. Cement Mixer Bearing
6. Clutch Release Bearing
7. Self Aligning Ball Bearing
8. Cylindrical Roller Bearing
9. Needle Bearing
10. Angular Contact Bearing
11. Thrust Ball Bearing
12. Thrust Roller Bearing
13. Pillow Block Bearing
14. Spherical Roller Bearing
