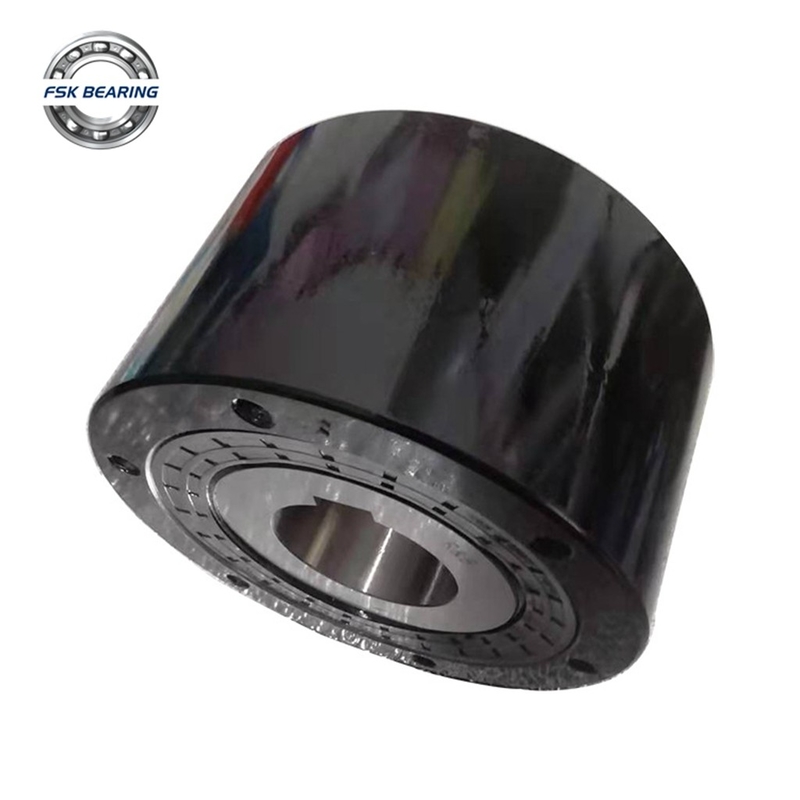

Long Life BS95 Backstop Clutch Bearing ID 130mm OD 230mm

Product Details

Place of Origin: CHINA

Brand Name: FSKG / KBE / FAG / NTN / NSK / KOYO / OEM

Certification: ISO9001-2000 / CE / ROHS / UL

Model Number: BS95

Payment & Shipping Terms

Minimum Order Quantity: 1pcs

Packaging Details: 1)COLOURED SINGLE BOX PACKING + CARTON BOX PACKING + PALLETS , 2) INDUSTRIAL PACKING

Get Best Price
Highlight:
Bearing No.:
BS95
Size:
130*230*115 Mm
Weight:
29.4 KG
Material:
Gcr15 Chrome Steel
Application:
Automotive Bearing
Origin:
Wuxi Jiangsu
Bearing No.:
BS95
Size:
130*230*115 Mm
Weight:
29.4 KG
Material:
Gcr15 Chrome Steel
Application:
Automotive Bearing
Origin:
Wuxi Jiangsu
Long Life BS95 Backstop Clutch Bearing ID 130mm OD 230mm

Long Life BS95 Backstop Clutch Bearing ID 130mm OD 230mm



Bearing Specification :

Model Number

BS95

Part Name

Backstop Clutch Bearing

Application For Belt Conveyor

Brand

FSKG / KBE / FAG / NTN / NSK / KOYO / OEM

Precision Rating

ABEC-3 / ABEC-5 / ABEC-7

Material Gcr15 Chrome Steel

Dimensions(mm)(d*D*b)

130*230*115 mm

Weight / Mass ( KG )

29.4 KG

HS Code

8482800000

Original Country Show China

Bearings Detailed Pictures :

Long Life BS95 Backstop Clutch Bearing ID 130mm OD 230mm 0Long Life BS95 Backstop Clutch Bearing ID 130mm OD 230mm 1Long Life BS95 Backstop Clutch Bearing ID 130mm OD 230mm 2

Long Life BS95 Backstop Clutch Bearing ID 130mm OD 230mm 3

Long Life BS95 Backstop Clutch Bearing ID 130mm OD 230mm 4

Long Life BS95 Backstop Clutch Bearing ID 130mm OD 230mm 5

Same Series Bearings We Do:

Long Life BS95 Backstop Clutch Bearing ID 130mm OD 230mm 6
Bearing d D H m
BS30 45 mm 90 mm 64 mm 2.1 KG
BS50 70 mm 125 mm 67 mm 4 KG
BS65 90 mm 160 mm 90 mm 11.5 KG
BS75 100 mm 170 mm 90 mm 13.1 KG
BS85 115 mm 210 mm 115 mm 24.7 KG
BS95 130 mm 230 mm 115 mm 29.4 KG
BS110 150 mm 270 mm 115 mm 34.2 KG
BS135 180 mm 320 mm 135 mm 68 KG
BS160 220 mm 360 mm 135 mm 85.6 KG
BS200 265 mm 430 mm 150 mm 140 KG
BS220 290 mm 500 mm 235 mm 264 KG
BS250 330 mm 600 mm 295 mm 523 KG
BS270 370 mm 650 mm 295 mm 562 KG
BS300 470 mm 780 mm 295 mm 885 KG
BS335 495 mm 850 mm 305 mm 1040 KG
BS350 535 mm 930 mm 320 mm 1470 KG
BS425 635 mm 1030 mm 440 mm 2240 KG
BS450 645 mm 1090 mm 450 mm 2580 KG

Other Clutch Release Bearings We Offer :

Bearing Inner ring Inner Ring Height Outer Ring Height Outer Diameter Of Outer Ring Chamfer Outer Diameter Of Inner Shaft Oil supply position Oil Supply Hole Oil Quantity Quality Maximum Torque Overspeed Idling Torque
Inside Diameter Keyway Chamfer A C B K F E cc kg N.M Inner Ring Outer Circle N.M
MG300 19 5x2 0.8 63 60 77 1.3 28.5 10.4 M6x1.0 25 1.8 314 2800 900 0.023
MG400 22 5x2 1 70 67 88 1.6 31.7 10.7 M6x1.0 30 2.7 539 2600 800 0.029
MG500 31.5 7x3 1.3 89 86 108 1.6 44.4 12.3 M6x1.0 50 5 1620 2400 800 0.052
MG600 50 12x3.5 1.6 95 92 136 1.6 69.8 12.8 M6x1.0 80 8.6 3140 2100 700 0.086
MG700 70 18x6 1.8 127 124 180 1.6 101.5 19.8 M6x1.0 135 19.5 5880 1500 500 0.173
MG750 85 24x6 0.6 153 150 200 1.5 110 75 M8x1.25 400 37 9500 7800 600 0.35
MG800 110 28x7 1 158 155 250 1.5 140 77.5 M8x1.25 500 46.5 17600 1300 475 0.55
MG900 135 35x9 1.3 165 160 300 1.5 170 80 M8x1.25 620 70.5 24500 1200 400 0.69
MG1000 160 38x10 1.3 188 180 370 1.5 200 90 M8x1.25 850 108.5 33800 1200 325 0.83
MG1100 185 45x14 3 260 250 470 3 260 125 M12x1.75 2900 250 78400 350 - 1.53
MG1200 200 45x14 3 260 250 500 3 280 125 M12x1.75 3000 280 95100 300 - 1.8
MG1300 250 56x17.5 3 280 260 600 3 340 130 M12x1.75 3800 410 176000 250 - 1.91



Bearing Number d D H m
SMZ20 20 mm 80 mm 67 mm 2 KG
SMZ30 30 mm 100 mm 82 mm 3.7 KG
SMZ35 35 mm 110 mm 87 mm 4.8 KG
SMZ45 45 mm 125 mm 92 mm 6.2 KG
SMZ60 60 mm 155 mm 102 mm 10.2 KG
SMZ70 70 mm 175 mm 105 mm 13.2 KG

Our Bearing Production Range:
1. Tapered Roller Bearing
2. Deep Groove Ball Bearing
3. Truck Wheel Bearing
4. Automobile Wheel Bearing
5. Cement Mixer Bearing
6. Clutch Release Bearing
7. Self Aligning Ball Bearing
8. Cylindrical Roller Bearing
9. Needle Bearing
10. Angular Contact Bearing
11. Thrust Ball Bearing
12. Thrust Roller Bearing
13. Pillow Block Bearing
14. Spherical Roller Bearing
