| Place of Origin: | CHINA |
|---|---|
| Brand Name: | FSKG / KBE / OEM / Any Brand |
| Certification: | ISO9001-2000 / CE / ROHS / UL / SGS |
| Model Number: | 30TAC62BDDG |
| Minimum Order Quantity: | 1 pcs |
| Price: | Talk in the letter |
| Packaging Details: | 1)COLOURED SINGLE BOX PACKING + CARTON BOX PACKING + PALLETS , 2) INDUSTRIAL PACKING |
| Delivery Time: | 5-7Days After Details Confirmed |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 100000pcs/month |
| Model No.: | 30 TAC 62B DDG | Size: | 30 X 62 X 15mm |
|---|---|---|---|
| 30 TAC 62B DDG Bearing Kg Weight: | 0.224kg | Feature: | Angular Contact Ball Bearing |
| Application: | Radial Load | Same Model: | 30 TAC 62B DDG Bearing / 30-TAC-62B-DDG-bearing / 30 TAC 62B DDG Screw Support Bearing |
| Highlight: | Thrust High Precision Ball Screw Bearing,30TAC62BDDG High Precision Ball Screw Bearing,30 X 62 X 15mm Ball Screw Bearing |
||
Thrust 30TAC62BDDG High Precision Ball Screw Bearing Single Row P4 Quality
Bearing Specification :
| FSK BEARING Model Number | 30TAC62BDDG |
| Part Name | Screw Support Bearings |
| Structure | Angular Contact Ball Bearing |
| Row | Single Row |
| Dimensions(mm)(d*D*b) | 30 X 62 X 15mm |
| Weight / Mass ( KG ) | 0.224kg |
| Cage | Steel Cage / Brass Cage |
| Material | Gcr15 Chrome Steel |
| Precision Rating | P4 / ABEC-7 |
| Brand | FSKG / KBE / OEM / Any Brand |
| Original Country Show |
CHINA ( FSKG) |
Bearing Drawing:

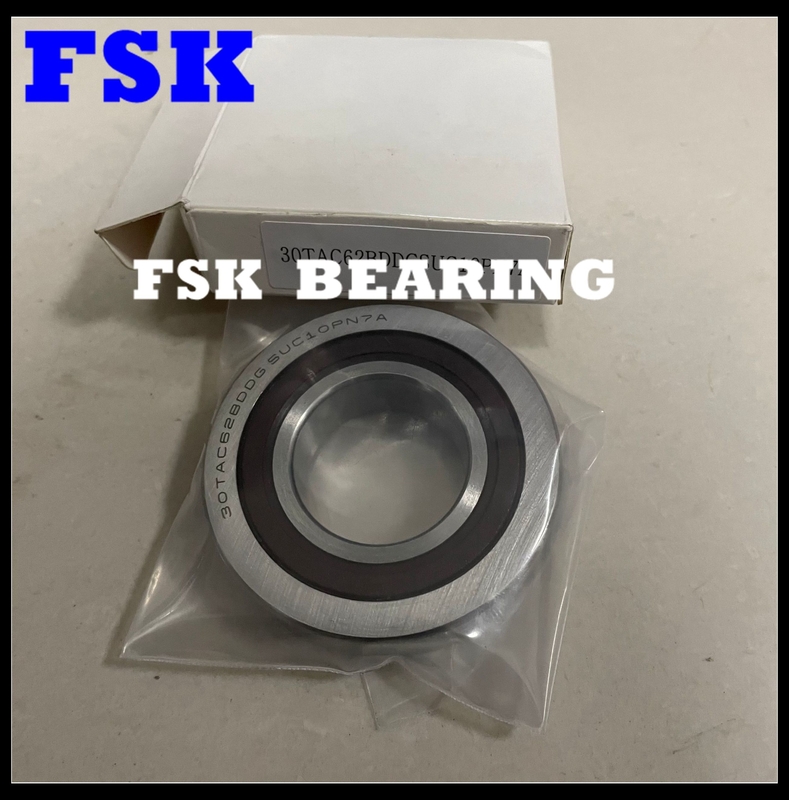

Bearing Detailed Photo:
The Other Same Series Bearings We Do:
| Bearing Number | d | D | H | Weight |
| 15 TAC 47B DDG | 15 mm | 47 mm | 15 mm | 0.14 KG |
| 17 TAC 47B DDG | 17 mm | 47 mm | 15 mm | 0.14 KG |
| 20 TAC 47B DDG | 20 mm | 47 mm | 15 mm | 0.14 KG |
| 25 TAC 62B DDG | 25 mm | 62 mm | 15 mm | 0.25 KG |
| 30 TAC 62B DDG | 30 mm | 62 mm | 15 mm | 0.22 KG |
| 35 TAC 72B DDG | 35 mm | 72 mm | 15 mm | 0.31 KG |
| 40 TAC 72B DDG | 40 mm | 72 mm | 15 mm | 0.28 KG |
| 40 TAC 90B DDG | 40 mm | 90 mm | 20 mm | 0.67 KG |
| 45 TAC 100B DDG | 45 mm | 100 mm | 20 mm | 0.84 KG |
The Other Bearings We Do
| Ball Bearing | Deep Groove Ball Bearing | 60 **,618 ** (1008), 619**(1009),62 **, 63 **, 64 **, |
| 160 **(70001 ) | ||
| Thrust Ball Bearing | 511 ** (81) ,512 **(82) ,513 (83) ,514 ** (84) series and Angular Contact Thrust all Bearings like: 5617 ** (1687) ,5691 ** (91681), 5692 ** (91682) series | |
| Angular Contact Ball bearing | SN718 **(11068 ) ,70 ** 72 **,73 **, and B (66), C (36), AC (46) series ; otherwise include QJ and QJF series | |
| Roller Bearing | Spherical Roller bearing | 239**, 230**,240**, 231**, 241**, 222**, 232**, 223**, 233**, 213**, 238**, 248**, 249**and special series include 26** i.e 2638 (3738), 2644 (3844) and so on |
| Taper Roller Bearing | 329**(20079),210**(71), 320**(20071),302**(72), 322**(75), 303**(73), 313**(273),323**(76), 3519**(10979), 3529**(20979),3510**(971), 3520**(20971),3511**(10977), 3521**(20977), 3522**(975), 319**(10076),3819**(10779),3829**(20779), 3810**(777,771), 3820**(20771), 3811**(10777,777) for example: 77752, 77788, 77779 and also include Inch series bearings suchas 938/932 single and double row i.e M255410CD etc. | |
| Thrust Roller Bearing | 292**(90392), 293**(90393),294**(90394),994**(90194), and 9069 series. | |
| Cylindrical Roller Bearing | NU10**, NU2**,NU22**, NU3**,NU23**, NU4**, N, NJ ,NUP series as well as NB, NN, NNU series of big bearings, and we also have Split Bearings 412740, 422740 used in cement industry.And FC, FCD series used in Steel Industry. |
FSK Bearing Company Advantages:
1.Direct China factory/Manufactur with strong Capability
We are direct bearing factory on Jiangsu, China for more than 10 years.300 bearing types,15 million sets items ar produced yearly and the output value more than 15 million US dollars last year.
We could complete all ordere items excellently with over one hundred of advanced equipments running in 6 plants in China.
2.Large ready stock&Fast Delivery Time
Rich in stock throughout the year for general bearing types,sush as Deep groove ball bearing,Tapered Roller Bearing,Thrust Ball Bearing,etc.
Based on above advantages,we delivery goods timely&fastly as your requests.Warehouse items would deliveried within 1-2 days.
By courier/air or by cargo/sea
3.Competitive price
Large stock and strong Capability enables us to offer more reasonable price all over the world. Customers could receive good quality bearings with attrative price at the same time from us.
4.Non-standard Customized Service
We could customize many non-standard bearings and workpiece as your drawing requests and offer in-house test report by professional engineers.All customized goods are made to order as requests.
5.Perfect Quality Control System
We have perfect quality control systems and testing equipments and experienced engineers for more than 10 years.We test bearings one by one assuring all bearings with high proformance.
6.Best After-sale service
Experienced different after-sale workers are online for more than 12hours a day, 7 days a week offering you different bearing solutions for you.
We are glad to receive any comments from all the world by email,by call/message or by Skype/wechat/whatsapp/Viber/QQ..etc.
7. Multi-language communications
FAQ
 |
Q:Are you a trader or manufacturer? |
| A:We are factory specializing in all kind of bearings. We can give you the best price and better service. | |
| Q:What is your delivery time? | |
| A:Sample order: Immediate delivery , bulk order: usually 30 days. | |
| Q:Can i request sample? | |
| A:Of course , sample is ok and we can give you a sample by free. | |
| Q:What's the shipping way? | |
| A:According to YOUR demands. | |
| Q:Can you accept OEM or ODM? | |
| A:Yes, of course. logo is also acceptable. | |
| Q:How is quality controlled? | |
| A:Quality is the key ! | |
| Our QC team and engineer team works through all the process from an order placed to shipped. | |
| Q: Can I come for a visit? | |
| You are welcome to visit our factories , office and showroom ! Please contact our reception and we will help you to make a schedule. |
Combined 30 TAC 62B DDGScrew Support Angular Contact Ball Bearing for Air Compressor,Get Cheap Price from China Bearing Factory Now !
Contact With Us Freely
| 30 X 62 X 15mm |
