| Place of Origin: | CHINA |
|---|---|
| Brand Name: | IKO / INA / FAG / NSK / NTN / FSK / OEM |
| Certification: | ISO9001-2000 / SGS / BV / CE |
| Model Number: | RNA 4822 |
| Minimum Order Quantity: | 1 pcs-10pcs |
| Price: | Competitive Low Price |
| Packaging Details: | 1)COLOURED SINGLE BOX PACKING + CARTON BOX PACKING + PALLETS , 2) PLASTIC TUBE PACKING / KRAFT PACKING |
| Delivery Time: | 3-7Days After Deposit |
| Payment Terms: | 30% Deposit , Balance After BL Copy |
| Supply Ability: | 100000pcs/month |
| Model No.: | RNA 4822 | Size: | 120mm × 140mm × 30mm |
|---|---|---|---|
| Weight: | 0.718kg | Seal: | Without Seal |
| Vibration: | V4, V3, V2, V1 | Material: | GCr15, GCr15SiMn, G20Cr2Ni4A |
| Highlight: | roller thrust bearing,double row cylindrical roller bearing |
||
High Precision Rna 4822 Iko Needle Bearing With Flange Chrome Steel
Description of Needle Roller Bearings :
Needle bearings have a large surface area that is in contact with the bearing outer surfaces. Additionally there is less added clearance so they are much more compact. The typical structure consists of a needle cage which orients and contains the needle rollers, the needle rollers themselves, and an outer race and sometimes housing itself. Radial needle bearings are cylindrical and use rollers parallel to the axis of the shaft. Thrust needle bearings are flat and use a radial pattern of needles. Full compliment bearings have solid inner and outer rings and rib-guided cylindrical rollers.
Full Models of Standard Needle Roller bearing :
Light series needle roller bearings (NK,NKI,NKS,NKIS)
Heavy series needle roller bearings (NA,RNA,RNA-RS,RNA-2RS)
Curve needle rollers (KR,CF,CR,CNBH)
Strut needle rollers (NART,NUTR,CCYR,STO,RSTO,NAST-ZZ)
Not obstructs side needle roller bearings(NAO,RNAO)
Needle roller-thrust ball bearings (NX,NX-Z,NKX,NKX-Z)
Needle roller-thrust cylindrical bearings (NKXR,NKXR-Z)
Radial needle roller-thrust cylindrical needle roller bearings (ZARN)
Thrust-cylindrical needle roller bearings (811,812,WS,GS)
Needle rollers and cages (K,KR,KS,KBK,KZK)
Drawn cup needle roller clutches and assemblies (HF,HFL)
NA Series Needle Roller Bearings Drawing :
Needle Roller Bearings List :
| code | internal | outer | width |
| mm | mm | mm | |
| needle roller bearing RNA 4822 | 120 | 140 | 30 |
| needle roller bearing RNA 4824 | 130 | 150 | 30 |
| needle roller bearing RNA 4826 | 145 | 165 | 35 |
| needle roller bearing RNA 4828 | 155 | 175 | 35 |
| needle roller bearing RNA 4830 | 165 | 190 | 40 |
| needle roller bearing RNA 4832 | 175 | 200 | 40 |
| needle roller bearing RNA 4834 | 185 | 215 | 45 |
| needle roller bearing RNA 4836 | 195 | 225 | 45 |
| needle roller bearing RNA 4838 | 210 | 240 | 50 |
| needle roller bearing RNA 4840 | 220 | 250 | 50 |
| needle roller bearing RNA 4844 | 240 | 270 | 50 |
| needle roller bearing RNA 4848 | 265 | 300 | 60 |
| needle roller bearing RNA 4852 | 285 | 320 | 60 |
| needle roller bearing RNA 4856 | 305 | 350 | 69 |
| needle roller bearing RNA 4860 | 330 | 380 | 80 |
| needle roller bearing RNA 4864 | 350 | 400 | 80 |
| needle roller bearing RNA 4868 | 370 | 420 | 80 |
| needle roller bearing RNA 4872 | 390 | 440 | 80 |
| needle roller bearing RNA 4876 | 415 | 480 | 100 |
Bearing Specification :
|
Model Number |
RNA 4822 |
|
Part Name |
Needle Roller Bearing |
|
Brand |
IKO / INA / FAG / NSK / NTN / FSK / OEM |
|
Precision Rating |
ABEC-3 / ABEC-5 |
| Material | Chrome Steel / Stainless Steel |
| Inner Ring | without Inner Ring |
| Row | Single Row |
|
Dimensions(mm)(d*D*b) |
120mm × 140mm × 30mm |
|
Weight / Mass ( KG ) |
0.718kg |
|
HS Code |
8482800000 |
| Original Country Show | CHINA |

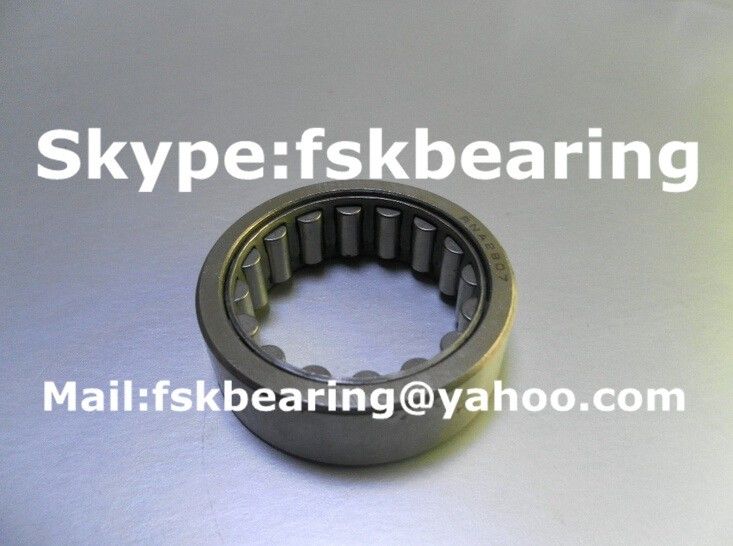

Bearings Detailed Pictures :
The Other Bearings We Do
| Ball Bearing | Deep Groove Ball Bearing | 60 **,618 ** (1008), 619**(1009),62 **, 63 **, 64 **, |
| 160 **(70001 ) | ||
| Thrust Ball Bearing | 511 ** (81) ,512 **(82) ,513 (83) ,514 ** (84) series and Angular Contact Thrust all Bearings like: 5617 ** (1687) ,5691 ** (91681), 5692 ** (91682) series | |
| Angular Contact Ball bearing | SN718 **(11068 ) ,70 ** 72 **,73 **, and B (66), C (36), AC (46) series ; otherwise include QJ and QJF series | |
| Roller Bearing | Spherical Roller bearing | 239**, 230**,240**, 231**, 241**, 222**, 232**, 223**, 233**, 213**, 238**, 248**, 249**and special series include 26** i.e 2638 (3738), 2644 (3844) and so on |
| Taper Roller Bearing | 329**(20079),210**(71), 320**(20071),302**(72), 322**(75), 303**(73), 313**(273),323**(76), 3519**(10979), 3529**(20979),3510**(971), 3520**(20971),3511**(10977), 3521**(20977), 3522**(975), 319**(10076),3819**(10779),3829**(20779), 3810**(777,771), 3820**(20771), 3811**(10777,777) for example: 77752, 77788, 77779 and also include Inch series bearings suchas 938/932 single and double row i.e M255410CD etc. | |
| Thrust Roller Bearing | 292**(90392), 293**(90393),294**(90394),994**(90194), and 9069 series. | |
| Cylindrical Roller Bearing | NU10**, NU2**,NU22**, NU3**,NU23**, NU4**, N, NJ ,NUP series as well as NB, NN, NNU series of big bearings, and we also have Split Bearings 412740, 422740 used in cement industry.And FC, FCD series used in Steel Industry. |
FSK Bearing Company Advantages:
(1) We have first-class testing equipment to detect bearing various data parameters and control the quality of the bearing.
Whenever bearings must first detected whether the quality is qualified and the unqualified bearing will be eliminated directly.
So we can get the trust of a large number of customers, and supply them for several years.
(2) We have our own R & D capabilities, to help customers solve the problem of non-standard bearings.
We can also according to customer requirements change their own mark.
(3) Price, our manufacture ensure that our prices across China are quite competitive.
It is better for you to compare prices and quality among suppliers.
But everyone knows you can not buy the highest quality products with the lowest price,
but our product is the best quality if you use equal price.
FSK Cooperation Details
Delivery:
For Small weight or ungent ,we send by express UPS,DHL,FEDEX, or EMS,china post with Thracking number
For max production , we will ship by sea/air.
Payment Item:
TT, 30% deposit , 70% before shippment.
L/C At Sight
Paypal Or Western Union In advance
Service:
Trade Assurance
Payment Protection
Timely Delivery Guaranteed
Product Qualtity Protection
About FSK Bearing Company
Shipping and Delivery
RNA 4822 IKO Needle Bearing with Flange Single Row Chrome Steel , Get Cheap Price from China Bearing Factory Now !
