6211ZZ NTN Sheild Ball Bearings Single Row Small Size P6 / P5

6211ZZ NTN Sheild Ball Bearings Single Row Small Size P6 / P5

  • 6211ZZ NTN Sheild Ball Bearings Single Row Small Size P6 / P5
  • 6211ZZ NTN Sheild Ball Bearings Single Row Small Size P6 / P5
  • 6211ZZ NTN Sheild Ball Bearings Single Row Small Size P6 / P5
  • 6211ZZ NTN Sheild Ball Bearings Single Row Small Size P6 / P5
6211ZZ NTN Sheild Ball Bearings Single Row Small Size P6 / P5
Product Details:
Place of Origin: JAPAN
Brand Name: NTN / NSK / FAG / TIMKEN / KOYO / FSK / OEM
Certification: ISO9001-2000 / CE / ROHS / UL
Model Number: 6211ZZ
Payment & Shipping Terms:
Minimum Order Quantity: 1 pcs
Price: Talk in the letter
Packaging Details: 1)COLOURED SINGLE BOX PACKING + CARTON BOX PACKING + PALLETS , 2) INDUSTRIAL PACKING
Delivery Time: 5-7Days After Details Confirmed
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 100000pcs/month
Contact Now
Detailed Product Description
Model No.: 6211ZZ Size: 55 × 100 × 21mm
Weight: 0.6kg Seal: ZZ
Part Name: China Deep Groove Ball Bearing Row: Single Row
High Light:

double row deep groove ball bearing

,

single row deep groove ball bearing



6211ZZ NTN Sheild Ball Bearings Single Row Small Size P6 / P5



Bearing Specification :

Bearing Model No.

6211ZZ

Bearing Name:

Deep Groove Ball Bearing

Bearing Size:

55 × 100 × 21mm

Bearing Weight:

0.6kg

Seal:

Double Shield



Bearing Drawing :

6211ZZ NTN Sheild Ball Bearings Single Row Small Size P6 / P5 0

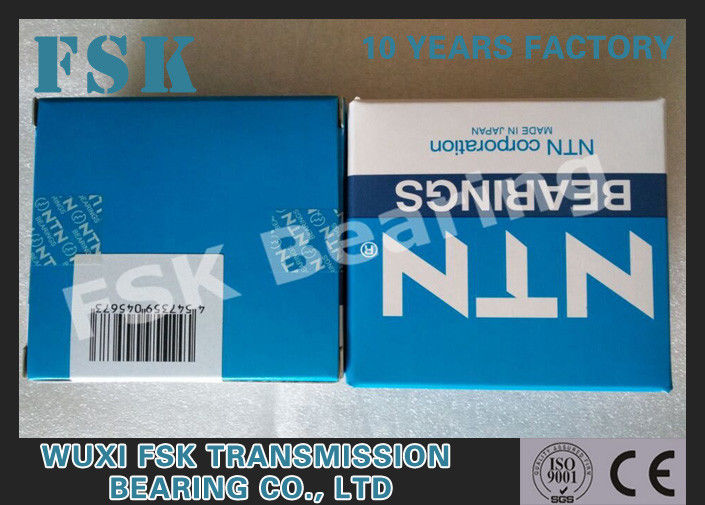

Bearings Detailed Pictures :

6211ZZ NTN Sheild Ball Bearings Single Row Small Size P6 / P5 1

6211ZZ NTN Sheild Ball Bearings Single Row Small Size P6 / P5 2



6211ZZ NTN Sheild Ball Bearings Single Row Small Size P6 / P5 3



6200 Series Deep Groove Ball Bearing List:

Bearing No. Specification

Basic Dynamic

 Load Rating KN

Limiting Speed Weight
d D W r Kg/pc
mm  inch mm  inch mm  inch mm  inch Dynamic Static Grease Oil
        C C0 (r/min) (r/min)
6200 10   .3937 30  1.1811 9    .3543 0.6   .024 5.1 2.39 19000 26000 0.032
6201 12   .4724 32  1.2598 10  .3937 0.6   .024 6.1 2.75 18000 24000 0.037
6202 15   .5906 35  1.3780 11  .4331 0.6   .024 7.75 3.6 17000 22000 0.045
6203 17   .6693 40  1.5748 12  .4724 0.6   .024 9.6 4.6 16000 20000 0.066
6204 20   .7874 47  1.8504 14  .5512 1.0   .039 12.8 6.65 14000 18000 0.106
6205 25   .9843 52  2.0470 15  .5906 1.0   .039 14 7.85 12000 16000 0.128
6206 30   1.1811 62  2.4409 16  .6299 1.0   .039 19.5 11.3 10000 13000 0.199
6207 35   1.3780 72  2.8346 17  .6693 1.1   .043 25.7 15.3 8800 10000 0.287
6208 40   1.5748 80  3.1496 18  .7087 1.1   .043 29.1 17.8 7700 9200 0.367
6209 45   1.7717 85  3.3465 19  .7480 1.1   .043 32.5 20.4 6800 8200 0.416
6210 50   1.9685 90  3.5433 20  .7874 1.1   .043 35 23.2 6100 7300 0.462
6211 55   2.1654 100 3.9370 21  .8268 1.5   .059 43.5 29.2 5500 6600 0.602
6212 60   2.3622 110 4.3307 22 .8661 1.5   .059 52.5 36 5000 6000 0.789
6213 65   2.5591 120 4.7244 23 .9055 1.5   .059 58.5 40.5 4800 5800 0.99
6214 70   2.7559 125 4.9213 24 .9449 1.5   .059 63.7 45 4600 5600 1.1
6215 75   2.9528 130 5.1181 25 .9843 1.5   .059 68.9 49 4400 5400 1.2
6216 80   3.1496 140 5.1181 26 1.0236 2.0   .078 72.5 53 4200 5300 1.4



Our Deep Groove Ball Bearings:

Deep groove ball bearings 6209

miniature thin-wall bearings,and different types of low noise,non-standard and special bearings.
(1) bearing bore diameter:3mm-50mm
(2) Bearing range:
60series bearing:606,607.608,6000,6001,6002,6003,6004,6005,6006,6007,6008,6009, 6010,6012,6013,6014,6015
62series bearing :626,627,628,629,6200,6201,6202,6203,6204,6205,6206,6207,6208,6209,6210,
6211,6212
63series bearing:6300,6301,6302,6303,6304,6305,6306,6307,6308,6309,6310,6311,6312 67series bearing:6705
68series bearing:686,687,688,689,6800,6801,6802,6803,6804,6805,6806,6807,6808,6809,6810 69series bearing:696,697,698,699,6900,6901,6902,6903,6904,6905,6906,6907,6908,6909,6910 16000series bearing:16001,16002,16003,16005,16007
(3) bearing Sealing form:OPEN,RS,2RS,Z,ZZ,RZ,2RZ,N,NR
(4) bearing Material:Gcr15
(5) Quality standard: ISO9001:2000
(6) Chief uses:automatic transmission mechanisms, home appliance motors, motorcycles, power tools, sports goods, office applianceal



Our Bearing Production Range:
1. Tapered Roller Bearing
2. Deep Groove Ball Bearing

3. Truck Wheel Bearing

4. Automobile Wheel Bearing

5. Cement Mixer Bearing

6. Clutch Release Bearing

7. Self Aligning Ball Bearing
8. Cylindrical Roller Bearing
9. Needle Bearing
10. Angular Contact Bearing
11. Thrust Ball Bearing
12. Thrust Roller Bearing
13. Pillow Block Bearing
14. Spherical Roller Bearing



6211ZZ NTN Sheild Ball Bearings Single Row Small Size P6 / P5​ , Get Cheap Price from China Deep Groove Ball Bearing Factory Now !
