Product Details
Place of Origin: CHINA
Brand Name: IKO / THK / NSK / TIMKEN / FAG / NTN / KOYO
Certification: ISO9001-2000 / CE / ROHS / UL
Model Number: SBR20
Payment & Shipping Terms
Minimum Order Quantity: 1 pcs
Price: Talk in the letter
Packaging Details: 1)COLOURED SINGLE BOX PACKING + CARTON BOX PACKING + PALLETS , 2) INDUSTRIAL PACKING
Delivery Time: 5-7Days After Details Confirmed
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 100000pcs/month
Part Name: |
Linear Motion Bearing |
Material: |
Gcr15 Chrome Steel |
Precision Rating: |
ABEC-1 To ABEC-9 |
ID: |
20mm |
Weight: |
0.2kg |
Model NO: |
SBR20 |
Part Name: |
Linear Motion Bearing |
Material: |
Gcr15 Chrome Steel |
Precision Rating: |
ABEC-1 To ABEC-9 |
ID: |
20mm |
Weight: |
0.2kg |
Model NO: |
SBR20 |
SBR20 SBR Round Shape Linear Bearings Linear Motion Mall Slide
The Drawing

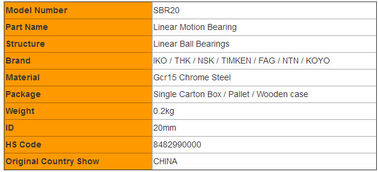

Bearing Specification :
|
Model Number |
SBR20 |
|
Part Name |
Linear Motion Bearing |
| Structure | Linear Ball Bearings |
|
Brand |
IKO / THK / NSK / TIMKEN / FAG / NTN / KOYO |
|
Material |
Gcr15 Chrome Steel |
| Package | Single Carton Box / Pallet / Wooden case |
| Weight | 0.2kg |
| ID | 20mm |
| HS Code | 8482990000 |
| Original Country Show | CHINA |
The List Of This Series
| MAIN DIMENSIONS | ||||||||||||
| MODEL NO. | SHAFT | BESICLOAD RATING | WEEGHT | |||||||||
| DIAMETER | h | E | W | L | F | T | h1 | o | (kg) | |||
| DYNAMIC | STATEC | |||||||||||
| SBR10UU | 10 | 15 | 18 | 36 | 32 | 24 | 7 | 6 | 80° | 38 | 56 | 0.065 |
| SBR13UU | 13 | 17 | 20 | 40 | 39 | 27.6 | 8 | 8.5 | 80° | 52 | 80 | 0.1 |
| SBR16UU | 16 | 20 | 22.5 | 45 | 45 | 33 | 9 | 10 | 80° | 59 | 91 | 0.15 |
| SBR20UU | 20 | 23 | 24 | 48 | 50 | 39 | 11 | 10 | 60° | 88 | 140 | 0.2 |
| SBR25UU | 25 | 27 | 30 | 60 | 65 | 47 | 14 | 11.5 | 50° | 100 | 160 | 0.45 |
| SBR30UU | 30 | 33 | 35 | 70 | 70 | 56 | 15 | 14 | 50° | 160 | 280 | 0.63 |
| SBR35UU | 35 | 37 | 40 | 80 | 80 | 63 | 18 | 16 | 50° | 170 | 320 | 0.92 |
| SBR40UU | 40 | 42 | 45 | 90 | 90 | 72 | 20 | 19 | 50° | 220 | 410 | 1.33 |
| SBR50UU | 50 | 53 | 60 | 120 | 110 | 92 | 25 | 23 | 50° | 390 | 810 | 3 |
| SBR16LUU | 16 | 20 | 22.5 | 45 | 85 | 33 | 9 | 10 | 80° | 155 | 236 | 0.3 |
| SBR20LUU | 20 | 23 | 24 | 48 | 96 | 39 | 11 | 10 | 60° | 176 | 274 | 0.4 |
| SBR25LUU | 25 | 27 | 30 | 60 | 130 | 47 | 14 | 11.5 | 50° | 196 | 314 | 0.9 |
| SBR30LUU | 30 | 33 | 35 | 70 | 140 | 56 | 15 | 14 | 50° | 314 | 648 | 1.26 |
| SBR40LUU | 40 | 42 | 45 | 90 | 175 | 72 | 20 | 19 | 50° | 432 | 804 | 2.66 |
Other Models We Can Offer
LM SERIES
LM3UU,LM4UU,LM5UU,LM6UU,LM8UU,LM8S,LM10UU,LM12UU,LM13UU,LM16UU,LM20UU,
LM25UU,LM30UU,LM35UU,LM40UU,LM50UU,LM60UU, LM80UU,LM100UU,LM120UU, LM150UU
LM10OPUU,LM12OPUU,LM13OPUU,LM16OPUU,LM20OPUU,LM25OPUU, LM3OOPU,LM35OPUU,LM40OPUU,LM50OPUU,LM60OPUU,LM80OPUU,LM100OPUU
LM8GA,LM10GA,LM12GA,LM16GA,LM20GA,LM25GA,LM30GA,LM35GA,LM40GA,LM50GA,
LM60GA
Type LME-UU: This is the metric dimension series with seal used most frequently in Europe.
LMB SERIES
LMB3UU, LMB4UU, LMB6UU, LMB8UU, LMB10UU,LMB12UU,LMB16UU,LMB24UU,LMB32UU, LMB40UU, LMB48UU, LMB64UU
LMBS4UU LMBS6UU LMBS8UU LMBS10UU LMBS12UU LMBS16UU LMBS20UU LMBS24UULMBS32UU LMBS8UUOP LMBS10UUOP LMBS12UUOP LMBS16UUOP LMBS20UUOP
SBR SERIES
SBR10UU,SBR12UU,SBR13UU,SBR16UU,SBR20UU,SBR25UU,SBR30UU,SBR35UU, SBR40UU,SBR50UU, SBR10LUU,SBR12LUU,SBR13LUU,SBR16LUU,SBR20LUU,SBR25LUU,
SBR30LUU, SBR35LUU,SBR40LUU,SBR50LUU
SC series
SC8UU,SC10UU,SC12UU,SC13UU,SC16UU,SC20UU,SC25UU,SC30UU,SC35UU,SC40UU, SC50UU,SC60UU,SC8WUU,SC10WUU,SC12WUU,SC13WUU,SC16WUU,SC20WUU,SC252UU,
SC30WUU,SC35WUU,SC40WUU,SC50WUU,SC8VUU,SC10VUU,SC12VUU,SC13VUU,
SC16VUU,SC20VUU,SC25VUU,SC30VUU,SC35VUU, SC40VUU,SC50VUU
Bearings Detailed Pictures :
SBR20 SBR Round Shape Linear Bearings Linear Motion Mall Slide, Get Cheap Price from China Steering Bearing Factory Now !
