Product Details
Place of Origin: JAPAN
Brand Name: FSKG / KBE / NSK / FYH / ASAHI / NTN / TR / LK / OEM
Certification: ISO9001-2000 / CE / ROHS / UL
Model Number: P203
Payment & Shipping Terms
Minimum Order Quantity: 1 pcs
Price: Talk in the letter
Packaging Details: 1)COLOURED SINGLE BOX PACKING + CARTON BOX PACKING + PALLETS , 2) INDUSTRIAL PACKING
Delivery Time: 5-7Days After Details Confirmed
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 100000pcs/month
Model No.: |
P203 |
Size: |
22 X 38 X 62mm |
Weight: |
0.5kg |
Certificate: |
ISO9001-2000 / CE / ROHS / UL |
Availability: |
Have Stocks |
Oringin: |
Wuxi Jiangsu |
Model No.: |
P203 |
Size: |
22 X 38 X 62mm |
Weight: |
0.5kg |
Certificate: |
ISO9001-2000 / CE / ROHS / UL |
Availability: |
Have Stocks |
Oringin: |
Wuxi Jiangsu |

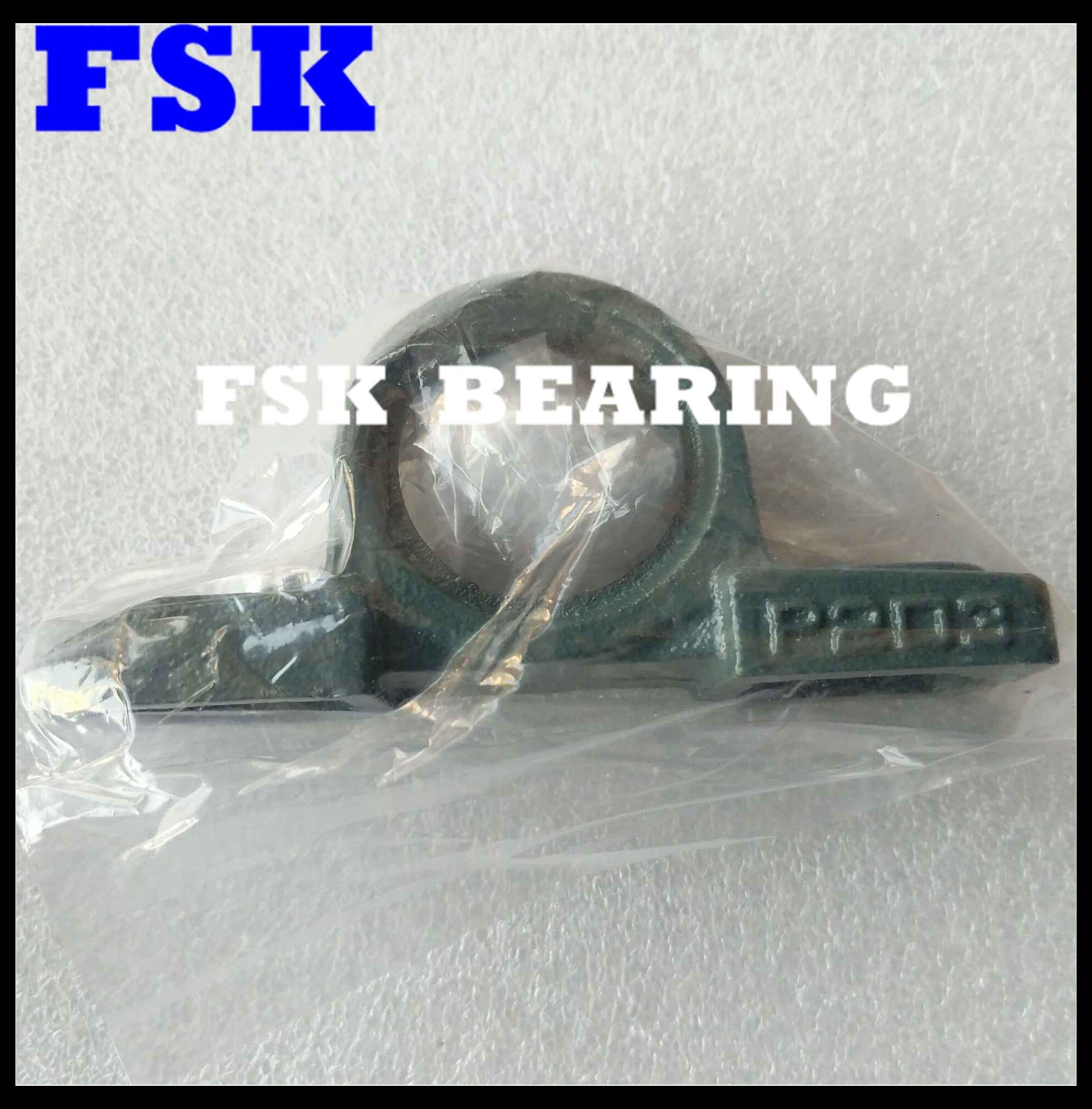

Cast Iron P203 Plummer Block and Flanged Housing Y-bearing Units Excl Bearing
Specifications
|
Model Number |
P203 |
|
Part Name |
Pillow Block Units |
|
Brand |
FSKG / KBE / NSK / FYH / ASAHI / NTN / TR / LK / OEM |
|
Applicaton |
Housing |
|
Precision Rating |
ABEC-3 / ABEC-5 |
| Material | Cast Iron / Cast Steel / Stainless Steel |
|
Dimensions(mm)(d*D*b) |
22 x 38 x 62mm |
|
Weight / Mass ( KG ) |
0.5kg |
|
HS Code |
8482800000 |
| Original Country Show | China |
P203 Drawing
Bearings Detailed Pictures
Other Bearing Housing We Offer
| Housing NO. | Dimensing mm | Weight(kg) | Bearing NO. | |||||||||
| Da | h | a | e | g | w | b | Be | s1 | s2 | |||
| P201 | 47 | 30.2 | 127 | 95 | 14 | 62 | 38 | 17 | 13 | 19 | 0.33 | UC201 |
| P202 | 47 | 30.2 | 127 | 95 | 14 | 62 | 38 | 17 | 13 | 19 | 0.33 | UC202 |
| P203 | 47 | 30.2 | 127 | 95 | 14 | 62 | 38 | 17 | 13 | 19 | 0.33 | UC203 |
| P204 | 47 | 33.3 | 127 | 95 | 14 | 65 | 38 | 17 | 13 | 19 | 0.46 | UC204 |
| P205 | 52 | 36.5 | 140 | 105 | 15 | 71 | 38 | 17 | 13 | 19 | 0.6 | UC205 |
| P206 | 62 | 42.9 | 165 | 121 | 17 | 83 | 48 | 19 | 17 | 21 | 0.97 | UC206 |
| P207 | 72 | 47.6 | 167 | 127 | 18 | 93 | 48 | 20 | 17 | 21 | 1 | UC207 |
| P208 | 80 | 49.2 | 184 | 137 | 18 | 98 | 54 | 21 | 17 | 21 | 1.3 | UC208 |
| P209 | 85 | 54 | 190 | 146 | 20 | 106 | 54 | 22 | 17 | 20 | 1.4 | UC209 |
| P210 | 90 | 57.2 | 206 | 159 | 21 | 114 | 60 | 23 | 20 | 25 | 1.83 | UC210 |
| P211 | 100 | 63.5 | 219 | 171 | 23 | 126 | 60 | 24 | 20 | 25 | 2.4 | UC211 |
| P212 | 110 | 69.8 | 241 | 184 | 25 | 138 | 70 | 26 | 20 | 25 | 2.8 | UC212 |
| P213 | 120 | 76.2 | 265 | 203 | 27 | 151 | 70 | 27 | 25 | 29 | 3.5 | UC213 |
| P214 | 125 | 79.4 | 266 | 210 | 27 | 157 | 72 | 29 | 25 | 31 | 4.45 | UC214 |
| P215 | 130 | 82.6 | 275 | 217 | 28 | 163 | 74 | 30 | 25 | 31 | 4.9 | UC215 |
| P216 | 140 | 88.9 | 292 | 232 | 30 | 175 | 78 | 32 | 25 | 31 | 5.8 | UC216 |
| P217 | 150 | 95.2 | 310 | 247 | 32 | 187 | 83 | 34 | 25 | 31 | 6.9 | UC217 |
| P218 | 160 | 101.6 | 327 | 262 | 33 | 200 | 88 | 36 | 27 | 33 | 8.1 | UC218 |
Our other Hot Sale Bearings
| Hot Sales in our company |
| 1. deep groove ball bearing 6000,6200,6300,6400,61800,61900,Z,RS,ZZ,2RS |
| 2. spherical roller bearing 22200,22300,23000,24000,23100,24100,CA,CC,E,W33 |
| 3. cylindrical roller bearingN,NU,NJ,NN,NUP,E,ECP,ECM,ECJ |
| 4. taper roller bearing 30200,30300,32200,32300,31300,32000 |
| 5. Aligning ball bearing 1200,1300,2200,2300, |
| 6. needle roller bearing NA,NAV,NK,NKI,RNA,NK,RNAV,ZKLF,ZKLN,ZARF,ZARN |
| 7. thrust ball bearing 51100,51200,51300,51400,E,M |
| 8. angular contact ball bearing7000,7100,7200,7300,AC,BECBM,C |
| 9. spherical plain bearing GE,GEG,GEEW,U,UC,UG,GX,GAC,SA,SABP |
