Product Details
Place of Origin: CHINA
Brand Name: TIMKEN / FAG / NSK / KOYO / NTN / FSK / OEM
Certification: ISO9001-2000 / CE / ROHS / UL / SGS
Model Number: EE923095/923175
Payment & Shipping Terms
Minimum Order Quantity: 1 pcs
Price: Talk in the letter
Packaging Details: 1)COLOURED SINGLE BOX PACKING + CARTON BOX PACKING + PALLETS , 2) INDUSTRIAL PACKING
Delivery Time: 5-7Days After Details Confirmed
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 100000pcs/month
Model No.: |
EE923095/923175 |
Size: |
241.3mm × 444.5mm × 101.6mm |
Weight: |
66kg |
Material: |
Chome Steel |
Measurement: |
Inched Size |
Bearing Name: |
EE923095/923175 Bearing / EE923095-923175 Bearing / TIMKEN EE923095/923175 / NTN EE923095/923175 |
Model No.: |
EE923095/923175 |
Size: |
241.3mm × 444.5mm × 101.6mm |
Weight: |
66kg |
Material: |
Chome Steel |
Measurement: |
Inched Size |
Bearing Name: |
EE923095/923175 Bearing / EE923095-923175 Bearing / TIMKEN EE923095/923175 / NTN EE923095/923175 |
Inched Size EE923095/923175 Tapered Roller Bearings TIMKEN FAG NSK
EE923095/923175 Bearing Drawing :
EE923095/923175 Bearing Specification :
| Model Number | EE923095/923175 |
| Part Name | Tapered Roller Bearing |
| Dimensions(mm)(d*D*b) | 241.3mm × 444.5mm × 101.6mm |
| Weight / Mass ( KG ) | 66kg |
| Precision Rating | ABEC-3 / ABEC-5 |
| Brand | TIMKEN / FAG / NSK / KOYO / NTN / FSK / OEM |
| Original Country Show | CHINA |
| HS Code | 8482800000 |
Other Inched Tapered Roller Beaings We Offer
| Dimension | Bearing No. | Function point | Basic load ratings | Speed ratings | Weight | ||||
| d | D | T | a | dyc | stc | Grease | Oil | Kg | |
| mm | mm | mm | Cr | Cor | |||||
| 241.3 | 444.5 | 101.6 | EE923095/923175 | 83 | 1220 | 2000 | 750 | 1000 | 65.9 |
| 241.3 | 508 | 117.475 | EE390095/390200 | 132 | 1220 | 2000 | 670 | 900 | 96.4 |
| 247.65 | 346.075 | 63.5 | KM348449/KM348410 | 61 | 610 | 1310 | 850 | 1200 | 17.4 |
| 254* | 324.975* | 39 | 1-7009 | 71 | 315 | 700 | 850 | 1200 | 8.06 |
| 255* | 324.975* | 39 | 1-7009S | 71 | 315 | 580 | 850 | 1200 | 8.06 |
| 257.175 | 342.9 | 57.15 | M349549/M349510 | 80 | 660 | 880 | 850 | 1200 | 14 |
| 260.35 | 422.275 | 86.121 | HM252348/HM252310 | 78 | 1000 | 1800 | 900 | 1300 | 42.8 |
| 266.7 | 355.6 | 57.15 | LM451349/LM451310 | 62 | 650 | 800 | 850 | 1200 | 15.1 |
| 266.7 | 393.7 | 130.175 | KEE275105/K275155 | 75 | 700 | 1400 | 750 | 1000 | 27.8 |
| 273.05 | 393.7 | 130.175 | KEE275108/K275155 | 75 | 700 | 1400 | 750 | 1000 | 26.3 |
| 288.925 | 406.4 | 77.788 | M255449/M255410 | 72 | 1140 | 1900 | 670 | 900 | 30.5 |
| 304.8 | 393.7 | 50.8 | KL357049/KL357010 | 64 | 530 | 1210 | 670 | 900 | 14.6 |
| 304.8 | 406.4 | 63.5 | LM757049/LM757010 | 79 | 2000 | 2800 | 670 | 900 | 21.2 |
| 607.72 | 787.4 | 93.662 | EE649239/649310 | 124 | 2000 | 2800 | 340 | 450 | 108 |
| 760* | 889 | 88.9 | L183448/L183410 | 127 | 2000 | 3200 | 260 | 360 | 93.5 |
| 762 | 889 | 88.9 | L183449/L183410 | 127 | 2000 | 3200 | 260 | 360 | 91.9 |

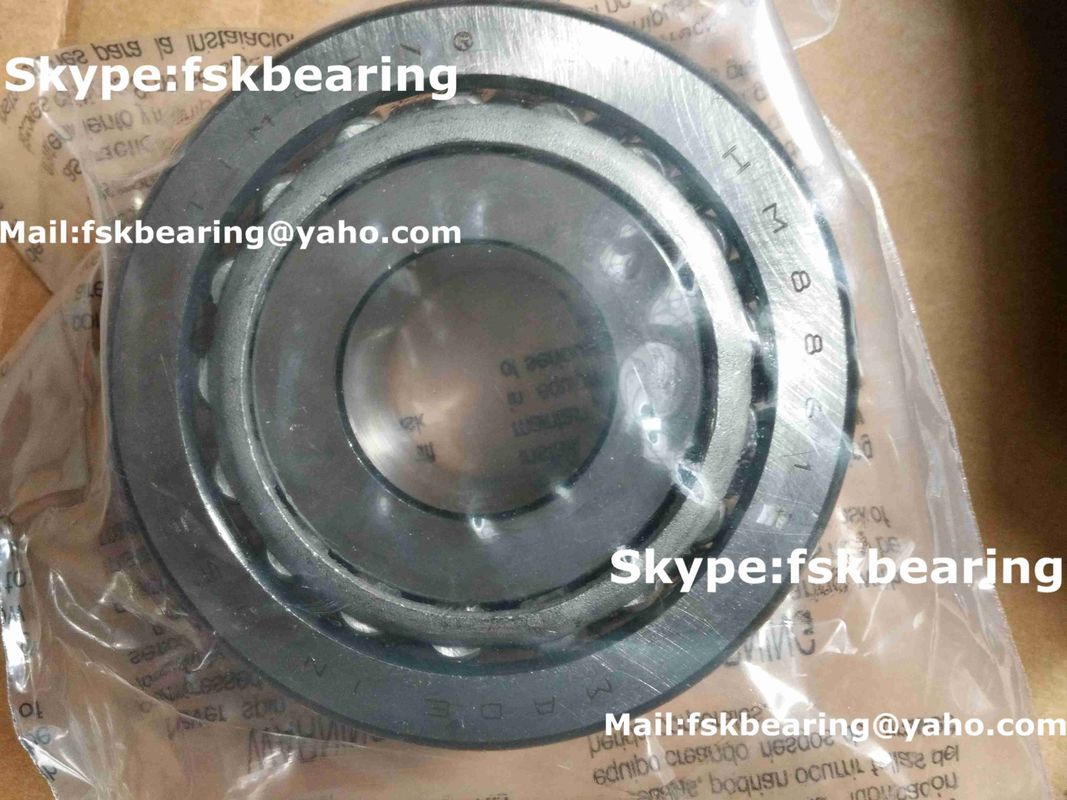

EE923095/923175 Bearing Detailed Pictures :
