Product Details
Place of Origin: CHINA
Brand Name: FSKG / KBE / OEM / Any Brand
Certification: ISO9001-2000 / CE / ROHS / UL / SGS
Model Number: RS-4896E4
Payment & Shipping Terms
Minimum Order Quantity: 1 pcs
Price: Talk in the letter
Packaging Details: 1)COLOURED SINGLE BOX PACKING + CARTON BOX PACKING + PALLETS , 2) INDUSTRIAL PACKING
Delivery Time: 5-7Days After Details Confirmed
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 100000pcs/month
Model No.: |
RS-4896E4 |
Size: |
480x600x118mm |
Weight: |
80.5kg |
Brand: |
FSKG / KBE / OEM / Any Brand |
Row: |
Single Row |
Original: |
China |
Model No.: |
RS-4896E4 |
Size: |
480x600x118mm |
Weight: |
80.5kg |
Brand: |
FSKG / KBE / OEM / Any Brand |
Row: |
Single Row |
Original: |
China |

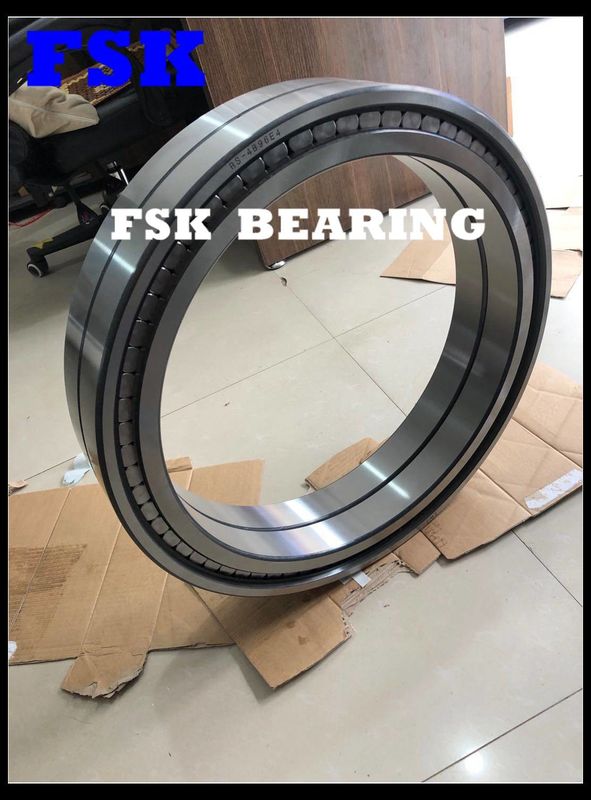

Heavy-duty RS-4896E4 Full Complement Cylindrical Roller Bearing Reducer Bearing
Bearing Specification :
| FSK BEARING Model Number | RS-4896E4 |
| Part Name | Cylindrical Roller Bearing |
| Dimensions(mm)(d*D*b) | 480x600x118mm |
| Weight / Mass ( KG ) | 80.5kg |
| Row | Single Row |
| Cage | No Cage |
| Precision Rating | ABEC-3 / ABEC-5 |
| Brand | FSKG / KBE / OEM / Any Brand |
| Original Country Show | CHINA ( FSKG ) |
Bearing Detailed Drawing:
Same Series Bearings We Do:
| Bearing Number | d | D | H | m |
| RS-4910E4 | 50 mm | 72 mm | 22 mm | 0.3 KG |
| RS-4912E4 | 60 mm | 85 mm | 25 mm | 0.46 KG |
| RS-4913E4 | 65 mm | 90 mm | 25 mm | 0.5 KG |
| RS-4914E4 | 70 mm | 100 mm | 30 mm | 0.79 KG |
| RS-4916E4 | 80 mm | 110 mm | 30 mm | 0.89 KG |
| RS-4918E4 | 90 mm | 125 mm | 35 mm | 1.35 KG |
| RS-4820E4 | 100 mm | 125 mm | 25 mm | 0.74 KG |
| RS-4920E4 | 100 mm | 140 mm | 40 mm | 1.97 KG |
| RS-4821E4 | 105 mm | 130 mm | 25 mm | 0.77 KG |
| RS-4921E4 | 105 mm | 145 mm | 40 mm | 2.05 KG |
| RS-4822E4 | 110 mm | 140 mm | 30 mm | 1.09 KG |
| RS-4922E4 | 110 mm | 150 mm | 40 mm | 2.15 KG |
| RS-4824E4 | 120 mm | 150 mm | 30 mm | 1.28 KG |
| RS-4924E4 | 120 mm | 165 mm | 45 mm | 2.95 KG |
| RS-4826E4 | 130 mm | 165 mm | 35 mm | 1.9 KG |
| RS-4926E4 | 130 mm | 180 mm | 50 mm | 3.95 KG |
| RS-4828E4 | 140 mm | 175 mm | 35 mm | 2.03 KG |
| RS-4928E4 | 140 mm | 190 mm | 50 mm | 4.25 KG |
| RS-4830E4 | 150 mm | 190 mm | 40 mm | 2.85 KG |
| RS-4930E4 | 150 mm | 210 mm | 60 mm | 6.65 KG |
| RS-4832E4 | 160 mm | 200 mm | 40 mm | 3.05 KG |
| RS-4932E4 | 160 mm | 220 mm | 60 mm | 7 KG |
| RS-4834E4 | 170 mm | 215 mm | 45 mm | 4.1 KG |
| RS-4934E4 | 170 mm | 230 mm | 60 mm | 7.35 KG |
| RS-4836E4 | 180 mm | 225 mm | 45 mm | 4.3 KG |
| RS-4936E4 | 180 mm | 250 mm | 69 mm | 10.7 KG |
| RS-4838E4 | 190 mm | 240 mm | 50 mm | 5.65 KG |
| RS-4938E4 | 190 mm | 260 mm | 69 mm | 11.1 KG |
| RS-4840E4 | 200 mm | 250 mm | 50 mm | 5.95 KG |
| RS-4940E4 | 200 mm | 280 mm | 80 mm | 15.7 KG |
| RS-4844E4 | 220 mm | 270 mm | 50 mm | 6.45 KG |
| RS-4944E4 | 220 mm | 300 mm | 80 mm | 17 KG |
| RS-4848E4 | 240 mm | 300 mm | 60 mm | 10.3 KG |
| RS-4948E4 | 240 mm | 320 mm | 80 mm | 18.4 KG |
| RS-4852E4 | 260 mm | 320 mm | 60 mm | 11 KG |
| RS-4952E4 | 260 mm | 360 mm | 100 mm | 32 KG |
| RS-4856E4 | 280 mm | 350 mm | 69 mm | 16 KG |
| RS-4956E4 | 280 mm | 380 mm | 100 mm | 34 KG |
| RS-4860E4 | 300 mm | 380 mm | 80 mm | 23 KG |
| RS-4960E4 | 300 mm | 420 mm | 118 mm | 52 KG |
| RS-4864E4 | 320 mm | 400 mm | 80 mm | 24.3 KG |
| RS-4964E4 | 320 mm | 440 mm | 118 mm | 55 KG |
| RS-4868E4 | 340 mm | 420 mm | 80 mm | 25.6 KG |
| RS-4968E4 | 340 mm | 460 mm | 118 mm | 58 KG |
| RS-4872E4 | 360 mm | 440 mm | 80 mm | 27 KG |
| RS-4972E4 | 360 mm | 480 mm | 118 mm | 61 KG |
| RS-4876E4 | 380 mm | 480 mm | 100 mm | 45.5 KG |
| RS-4976E4 | 380 mm | 520 mm | 140 mm | 90.5 KG |
| RS-4880E4 | 400 mm | 500 mm | 100 mm | 47.5 KG |
| RS-4980E4 | 400 mm | 540 mm | 140 mm | 94.5 KG |
| RS-4884E4 | 420 mm | 520 mm | 100 mm | 49.5 KG |
| RS-4984E4 | 420 mm | 560 mm | 140 mm | 98.5 KG |
| RS-4888E4 | 440 mm | 540 mm | 100 mm | 51.5 KG |
| RS-4988E4 | 440 mm | 600 mm | 160 mm | 136 KG |
| RS-4892E4 | 460 mm | 580 mm | 118 mm | 77.5 KG |
| RS-4992E4 | 460 mm | 620 mm | 160 mm | 142 KG |
| RS-4896E4 | 480 mm | 600 mm | 118 mm | 80.5 KG |
| RS-4996E4 | 480 mm | 650 mm | 170 mm | 167 KG |
| RS-48/500E4 | 500 mm | 620 mm | 118 mm | 83.5 KG |
| RS-49/500E4 | 500 mm | 670 mm | 170 mm | 173 KG |
| RS-49/530E4 | 530 mm | 710 mm | 180 mm | 206 KG |
| RS-49/560E4 | 560 mm | 750 mm | 190 mm | 231 KG |
Our Main Products:
| Ball Bearing | Deep Groove Ball Bearing | 60 **,618 ** (1008), 619**(1009),62 **, 63 **, 64 **, |
| 160 **(70001 ) | ||
| Thrust Ball Bearing | 511 ** (81) ,512 **(82) ,513 (83) ,514 ** (84) series and Angular Contact Thrust all Bearings like: 5617 ** (1687) ,5691 ** (91681), 5692 ** (91682) series | |
| Angular Contact Ball bearing | SN718 **(11068 ) ,70 ** 72 **,73 **, and B (66), C (36), AC (46) series ; otherwise include QJ and QJF series | |
| Roller Bearing | Spherical Roller bearing | 239**, 230**,240**, 231**, 241**, 222**, 232**, 223**, 233**, 213**, 238**, 248**, 249**and special series include 26** i.e 2638 (3738), 2644 (3844) and so on |
| Taper Roller Bearing | 329**(20079),210**(71), 320**(20071),302**(72), 322**(75), 303**(73), 313**(273),323**(76), 3519**(10979), 3529**(20979),3510**(971), 3520**(20971),3511**(10977), 3521**(20977), 3522**(975), 319**(10076),3819**(10779),3829**(20779), 3810**(777,771), 3820**(20771), 3811**(10777,777) for example: 77752, 77788, 77779 and also include Inch series bearings suchas 938/932 single and double row i.e M255410CD etc. | |
| Thrust Roller Bearing | 292**(90392), 293**(90393),294**(90394),994**(90194), and 9069 series. | |
| Cylindrical Roller Bearing | NU10**, NU2**,NU22**, NU3**,NU23**, NU4**, N, NJ ,NUP series as well as NB, NN, NNU series of big bearings, and we also have Split Bearings 412740, 422740 used in cement industry.And FC, FCD series used in Steel Industry. |
Why Choose US?
Wide product range: We can provide almost all kinds of bearings, ranges from I.D 2.5 mm up to O.D 6,000 mm
Customized solution: We can design and develop special bearings or provide economical solution according to your application.
Supply chain management: Beside our bearing products, we can also help you to purchase other industrial components, control quality and do assembly, then to further help you achieve higher operation efficiency.
Application technical service: FSK’s technical team is much experienced in automobile bearings, industry bearings, and even aerospace bearings. We are able to provide support on bearing selection, design optimization, product development, bearing mounting, bearing maintenance, lubrication and etc.
Quality control service: With our comprehensive inspection methods, our quality control covers material, heat treatment, dimensions, profile, roughness, clearance, noise and so on. Our experienced QA team is able to control quality whatever during the production, or before the shipment, to guarantee that our customer will only receive quality, but not trouble.
Logistic service: Cooperating with world leading logistic partners, our professional international service team will be pleased to offer you our best service.
Credit service: You are able to enjoy a certain level of payment credit based on your record, to help you enlarge your business.
FSK Cooperation Details
Delivery:
For Small weight or ungent ,we send by express UPS,DHL,FEDEX, or EMS,china post with Thracking number
For max production , we will ship by sea/air.
Payment Item:
TT, 30% deposit , 70% before shippment.
L/C At Sight
Paypal Or Western Union In advance
Service:
Trade Assurance
Payment Protection
Timely Delivery Guaranteed
Product Qualtity Protection
About FSK Bearing Company:
Heavy-duty RS-4896E4 Full Complement Cylindrical Roller Bearing Reducer Bearing, Get Cheap Price from China Bearing Factory Now !
Contact With Us Freely
