Product Details
Place of Origin: CHINA
Brand Name: FSKG / KBE / FAG / NTN / NSK / KOYO / OEM
Certification: ISO9001-2000 / CE / ROHS / UL
Model Number: 3222A
Payment & Shipping Terms
Minimum Order Quantity: 1 pcs
Price: Let's Chat in Detail
Packaging Details: 1.Industrial packaging: plastic bag + kraft paper + carton + plywood pallets; plastic tube + carton + plywood pallets; 2. Commercial packing: 1pc/plastic bag + color box + carton + plywood pallets 3. As the clients' requirement
Delivery Time: 3 Days After Details Confirmed
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 10000pcs/day
Model No.: |
3222A |
Size: |
110 X 200 X 69.8mm |
Weight: |
8.8kg |
Material: |
Chrome Steel |
Advantage: |
Low Vocie,high Speed, Long Life |
Original: |
China |
Model No.: |
3222A |
Size: |
110 X 200 X 69.8mm |
Weight: |
8.8kg |
Material: |
Chrome Steel |
Advantage: |
Low Vocie,high Speed, Long Life |
Original: |
China |

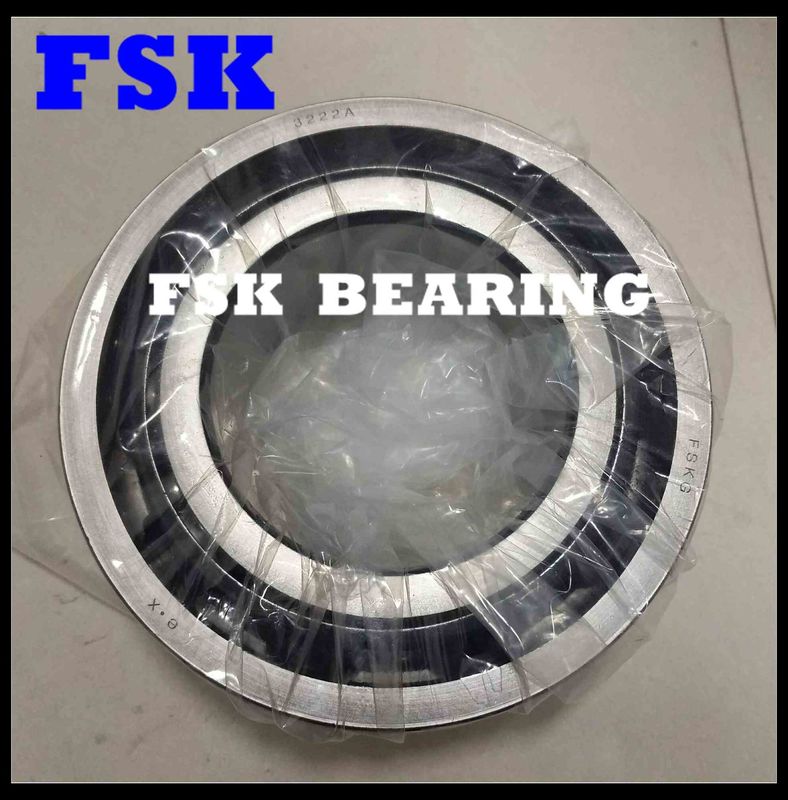

Open Type 3222A Angular Contact Ball Bearing for Reducer / Air compressor
Bearing Specification :
|
FSK BEARING Model Number |
3222A |
|
Part Name |
Angular Contact Ball Bearing |
|
Brand |
FSKG / KBE / FAG / NTN / NSK / KOYO / OEM |
|
Precision Rating |
ABEC-3 to ABEC-5 |
| Material | Gcr15 Chrome Steel |
| Cage | Steel Cage |
| Row | Double Row |
|
Dimensions(mm)(d*D*b) |
110 x 200 x 69.8mm |
|
Weight / Mass ( KG ) |
8.8kg |
|
HS Code |
8482800000 |
| Original Country Show | CHINA |
Bearings Drawing Pictures :
Same Series Tapered Roller Bearing List
| Bearing No . | Bore | O.D. | Width | Ball Complement | Limiting speed | Weight | ||
| d | D | B | No. | Size | Grease | Oil | Kg | |
| mm | mm | mm | mm | r/min | r/min | |||
| 3200 | 10 | 30 | 14.3 | 18 | 3.969 | 16000 | 20000 | 0.055 |
| 3201 | 12 | 32 | 15.9 | 18 | 4.763 | 14000 | 18000 | 0.063 |
| 3202 | 15 | 35 | 15.9 | 20 | 4.763 | 12000 | 16000 | 0.072 |
| 3203 | 17 | 40 | 17.5 | 18 | 5.556 | 11000 | 14000 | 0.091 |
| 3204 | 20 | 47 | 20.6 | 18 | 7.144 | 8800 | 12000 | 0.12 |
| 3205 | 25 | 52 | 20.6 | 20 | 7.144 | 7700 | 10000 | 0.19 |
| 3206 | 30 | 62 | 23.8 | 18 | 8.731 | 6400 | 8600 | 0.29 |
| 3207 | 35 | 72 | 27 | 18 | 10.731 | 5500 | 7300 | 0.43 |
| 3208 | 40 | 80 | 30.2 | 20 | 11.113 | 5000 | 67000 | 0.57 |
| 3209 | 45 | 85 | 30.2 | 20 | 11.509 | 4600 | 6100 | 0.62 |
| 3210 | 50 | 90 | 30.2 | 22 | 11.509 | 4300 | 5100 | 0.67 |
| 3211 | 55 | 100 | 33.3 | 22 | 12.7 | 4000 | 5300 | 1.03 |
| 3212 | 60 | 110 | 36.5 | 22 | 13.49 | 3500 | 4700 | 1.4 |
| 3300 | 10 | 35 | 19 | 14600 | 20000 | 0.092 | ||
| 3301 | 12 | 37 | 19 | 13500 | 18000 | 0.109 | ||
| 3302 | 15 | 42 | 19 | 18 | 5.556 | 11000 | 14000 | 0.13 |
| 3303 | 17 | 47 | 22.2 | 9400 | 13000 | 0.2 | ||
| 3304 | 20 | 52 | 22.2 | 18 | 8300 | 11000 | 0.23 | |
| 3305 | 25 | 60 | 25.2 | 16 | 9.525 | 9600 | 9200 | 0.35 |
| 3306 | 30 | 72 | 30.2 | 16 | 11.906 | 5800 | 7700 | 0.51 |
| 3307 | 35 | 80 | 34.9 | 16 | 13.494 | 5100 | 6800 | 0.79 |
| 3308 | 40 | 90 | 36.5 | 16 | 15.081 | 4600 | 6100 | 1.05 |
| 3309 | 45 | 100 | 39.7 | 16 | 16.669 | 4100 | 5500 | 1.42 |
| 3310 | 50 | 110 | 44.4 | 16 | 18.256 | 4000 | 5300 | 1.96 |
Our other Hot Sale Bearings
| Hot Sales in our company |
| 1. deep groove ball bearing 6000,6200,6300,6400,61800,61900,Z,RS,ZZ,2RS |
| 2. spherical roller bearing 22200,22300,23000,24000,23100,24100,CA,CC,E,W33 |
| 3. cylindrical roller bearingN,NU,NJ,NN,NUP,E,ECP,ECM,ECJ |
| 4. taper roller bearing 30200,30300,32200,32300,31300,32000 |
| 5. Aligning ball bearing 1200,1300,2200,2300, |
| 6. needle roller bearing NA,NAV,NK,NKI,RNA,NK,RNAV,ZKLF,ZKLN,ZARF,ZARN |
| 7. thrust ball bearing 51100,51200,51300,51400,E,M |
| 8. angular contact ball bearing7000,7100,7200,7300,AC,BECBM,C |
| 9. spherical plain bearing GE,GEG,GEEW,U,UC,UG,GX,GAC,SA,SABP |
