Product Details
Place of Origin: CHINA
Brand Name: FSKG / KBE / OEM / Any Brand
Certification: ISO9001-2000 / CE / ROHS / UL / SGS
Model Number: 16040 C3
Payment & Shipping Terms
Minimum Order Quantity: 1 pcs
Price: Talk in the letter
Packaging Details: 1)COLOURED SINGLE BOX PACKING + CARTON BOX PACKING + PALLETS , 2) INDUSTRIAL PACKING
Delivery Time: 5-7Days After Details Confirmed
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 100000pcs/month
Model No.: |
16040 C3 |
Size: |
200 × 310 × 34 Mm |
Weight: |
10.3 Kg |
Sale Area: |
Northeast Asia, Southeast Asia, Africa, Middle East, Europe, North America, South America |
Application: |
Radial Load |
Same Model: |
16040C3 Bearing / 16040 C3 Bearing / 16040/C3 Bearing |
Model No.: |
16040 C3 |
Size: |
200 × 310 × 34 Mm |
Weight: |
10.3 Kg |
Sale Area: |
Northeast Asia, Southeast Asia, Africa, Middle East, Europe, North America, South America |
Application: |
Radial Load |
Same Model: |
16040C3 Bearing / 16040 C3 Bearing / 16040/C3 Bearing |
Thin-walled 16040 C3 Deep Groove Ball Bearing Rolling Mill Bearing for Construction Machinery
Bearing Specification :
| FSK BEARING Model Number | 16040 C3 |
| Part Name | Deep Groove Ball Bearing |
| Feature | Large Size Thin Walled Bearing |
| Dimensions(mm)(d*D*b) | 200 × 310 × 34 mm |
| Weight / Mass ( KG ) | 10.3 kg |
| Cage | Steel Cage / Brass Cage |
| Material | Gcr15 Chrome Steel |
| Precision Rating | ABEC-3 / ABEC-5 |
| Brand | FSKG / KBE / OEM / Any Brand |
| Original Country Show |
CHINA ( FSKG) |

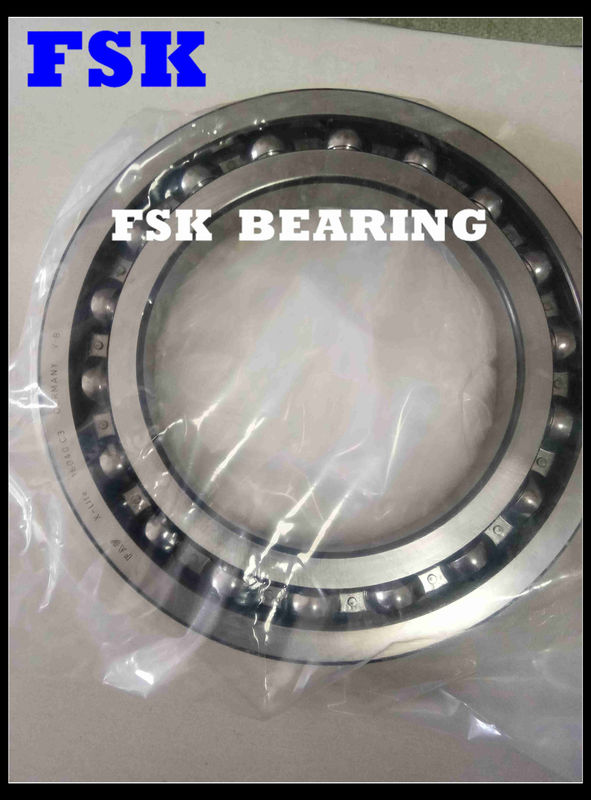

Detail Bearing Photos :
The Other Bearings We Do
| Part No. | Bore | Outside Diameter | Width | |||
| MM. | Inch | MM. | Inch | MM. | Inch | |
| 16001 | 12 | 0.4724 | 28 | 1.1024 | 7 | 0.2756 |
| 16002 | 15 | 0.5906 | 32 | 1.2598 | 8 | 0.315 |
| 16003 | 17 | 0.6693 | 35 | 1.378 | 8 | 0.315 |
| 16004 | 20 | 0.7874 | 42 | 1.6535 | 8 | 0.315 |
| 16005 | 25 | 0.9843 | 47 | 1.8504 | 8 | 0.315 |
| 16006 | 30 | 1.1811 | 55 | 2.1654 | 9 | 0.3543 |
| 16007 | 35 | 1.378 | 62 | 2.4409 | 9 | 0.3543 |
| 16008 | 40 | 1.5748 | 68 | 2.6772 | 9 | 0.3543 |
| 16009 | 45 | 1.7717 | 75 | 2.9528 | 10 | 0.3937 |
| 16010 | 50 | 1.9685 | 80 | 3.1496 | 10 | 0.3937 |
| 16011 | 55 | 2.1654 | 90 | 3.5433 | 11 | 0.4331 |
| 16012 | 60 | 2.3622 | 95 | 3.7402 | 11 | 0.4331 |
| 16013 | 65 | 2.5591 | 100 | 3.937 | 11 | 0.4331 |
| 16014 | 70 | 2.7559 | 110 | 4.3307 | 13 | 0.5118 |
| 16015 | 75 | 2.9528 | 115 | 4.5276 | 13 | 0.5118 |
| 16016 | 80 | 3.1496 | 125 | 4.9213 | 14 | 0.5512 |
| 16034 | 170 | 6.6929 | 260 | 10.2362 | 28 | 1.1024 |
| 16036 | 180 | 7.0866 | 280 | 11.0236 | 31 | 1.2205 |
| 16038 | 190 | 7.4803 | 290 | 11.4173 | 31 | 1.2205 |
| 16040 | 200 | 7.874 | 310 | 12.2047 | 34 | 1.3386 |
| 16044 | 220 | 8.6614 | 340 | 13.3858 | 37 | 1.4567 |
| 16017 | 85 | 3.3465 | 130 | 5.1181 | 14 | 0.5512 |
| 16018 | 90 | 3.5433 | 140 | 5.5118 | 16 | 0.6299 |
| 16019 | 95 | 3.7402 | 145 | 5.7087 | 16 | 0.6299 |
| 16020 | 100 | 3.937 | 150 | 5.9055 | 16 | 0.6299 |
| 16021 | 105 | 4.1339 | 160 | 6.2992 | 18 | 0.7087 |
| 16022 | 110 | 4.3307 | 170 | 6.6929 | 19 | 0.748 |
| 16024 | 120 | 4.7244 | 180 | 7.0866 | 19 | 0.748 |
| 16026 | 130 | 5.1181 | 200 | 7.874 | 22 | 0.8661 |
| 16028 | 140 | 5.5118 | 210 | 8.2677 | 22 | 0.8661 |
| 16030 | 150 | 5.9055 | 225 | 8.8583 | 24 | 0.9449 |
| 16032 | 160 | 6.2992 | 240 | 9.4488 | 25 | 0.9843 |
| Ball Bearing | Deep Groove Ball Bearing | 60 **,618 ** (1008), 619**(1009),62 **, 63 **, 64 **, |
| 160 **(70001 ) | ||
| Thrust Ball Bearing | 511 ** (81) ,512 **(82) ,513 (83) ,514 ** (84) series and Angular Contact Thrust all Bearings like: 5617 ** (1687) ,5691 ** (91681), 5692 ** (91682) series | |
| Angular Contact Ball bearing | SN718 **(11068 ) ,70 ** 72 **,73 **, and B (66), C (36), AC (46) series ; otherwise include QJ and QJF series | |
| Roller Bearing | Spherical Roller bearing | 239**, 230**,240**, 231**, 241**, 222**, 232**, 223**, 233**, 213**, 238**, 248**, 249**and special series include 26** i.e 2638 (3738), 2644 (3844) and so on |
| Taper Roller Bearing | 329**(20079),210**(71), 320**(20071),302**(72), 322**(75), 303**(73), 313**(273),323**(76), 3519**(10979), 3529**(20979),3510**(971), 3520**(20971),3511**(10977), 3521**(20977), 3522**(975), 319**(10076),3819**(10779),3829**(20779), 3810**(777,771), 3820**(20771), 3811**(10777,777) for example: 77752, 77788, 77779 and also include Inch series bearings suchas 938/932 single and double row i.e M255410CD etc. | |
| Thrust Roller Bearing | 292**(90392), 293**(90393),294**(90394),994**(90194), and 9069 series. | |
| Cylindrical Roller Bearing | NU10**, NU2**,NU22**, NU3**,NU23**, NU4**, N, NJ ,NUP series as well as NB, NN, NNU series of big bearings, and we also have Split Bearings 412740, 422740 used in cement industry.And FC, FCD series used in Steel Industry. |
FSK Bearing Company Advantages:
(1) We have first-class testing equipment to detect bearing various data parameters and control the quality of the bearing.
Whenever bearings must first detected whether the quality is qualified and the unqualified bearing will be eliminated directly.
So we can get the trust of a large number of customers, and supply them for several years.
(2) We have our own R & D capabilities, to help customers solve the problem of non-standard bearings.
We can also according to customer requirements change their own mark.
(3) Price, our manufacture ensure that our prices across China are quite competitive.
It is better for you to compare prices and quality among suppliers.
But everyone knows you can not buy the highest quality products with the lowest price,
but our product is the best quality if you use equal price.
FSK Cooperation Details
Delivery:
For Small weight or ungent ,we send by express UPS,DHL,FEDEX, or EMS,china post with Thracking number
For max production , we will ship by sea/air.
Payment Item:
TT, 30% deposit , 70% before shippment.
L/C At Sight
Paypal Or Western Union In advance
Service:
Trade Assurance
Payment Protection
Timely Delivery Guaranteed
Product Qualtity Protection
Thin-walled 16040 C3 Deep Groove Ball Bearing Rolling Mill Bearing for Construction Machinery,Get Cheap Price from China Bearing Factory Now !
